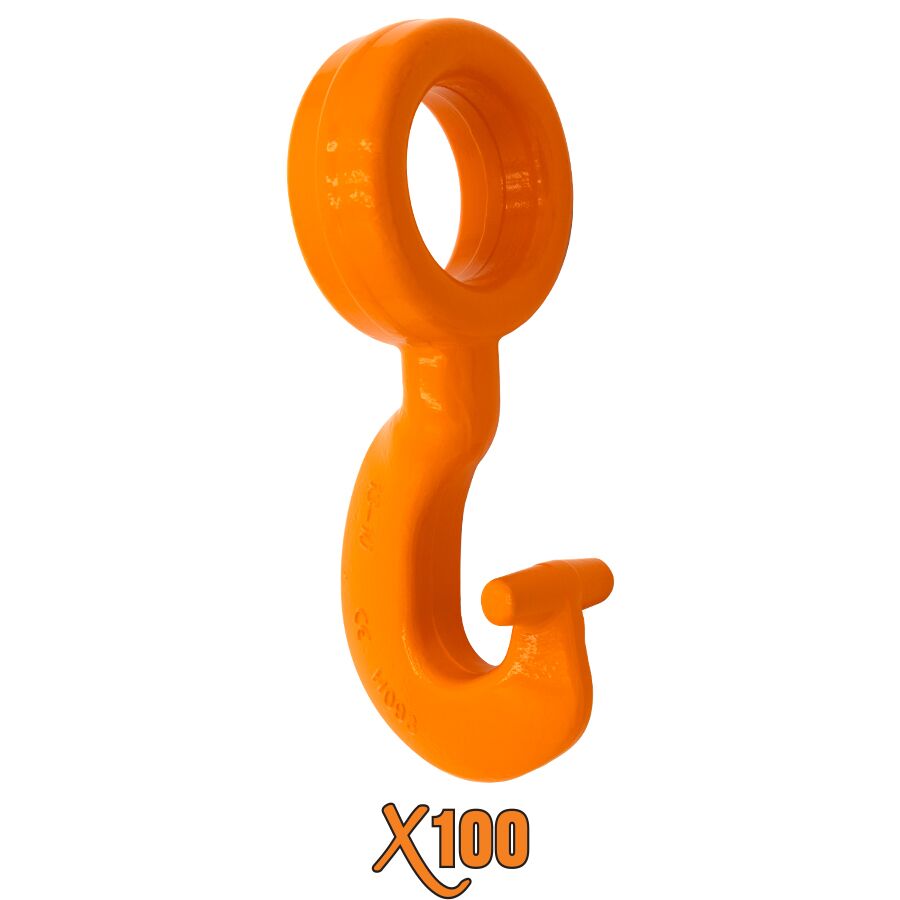

X100® Sliding Choker Hooks for Chain
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X The Working Load Limit
- 100% Mag-Particle Crack Detection
- For Use with X100 Chain in Choker Rating
- For Use with X100 Omega Links
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) |
|---|---|---|---|
| 9/32 – 5/16 | XSLDCH281-312 | 5,700 | 0.95 |
| 3/8 | XSLDCH375 | 8,800 | 1.80 |
| 1/2 | XSLDCH500 | 15,000 | 3.50 |
| 5/8 | XSLDCH625 | 22,600 | 7.80 |

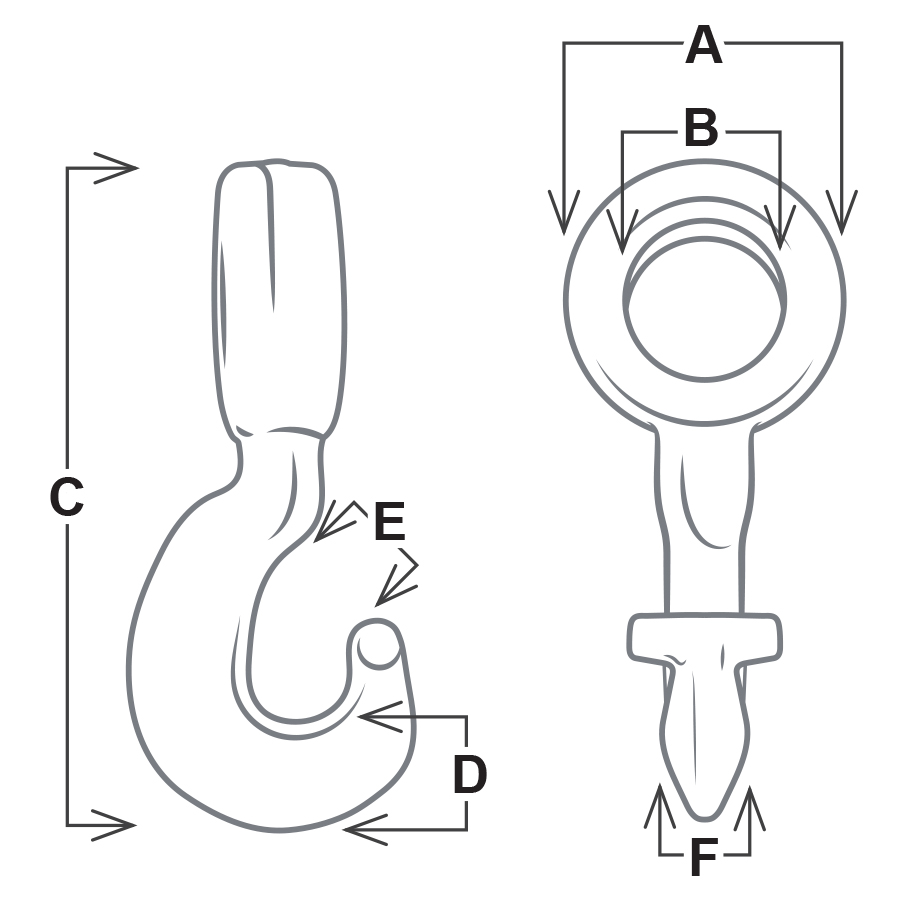

| STOCK NUMBER | DIMENSIONS (IN) | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| XSLDCH281-312 | 2.070 | 1.180 | 5.070 | 0.800 | 0.660 | 0.680 |
| XSLDCH375 | 2.750 | 1.580 | 6.210 | 1.020 | 0.940 | 0.750 |
| XSLDCH500 | 3.360 | 2.060 | 8.690 | 1.310 | 1.200 | 0.950 |
| XSLDCH625 | 4.270 | 2.580 | 9.610 | 1.790 | 1.200 | 1.290 |
