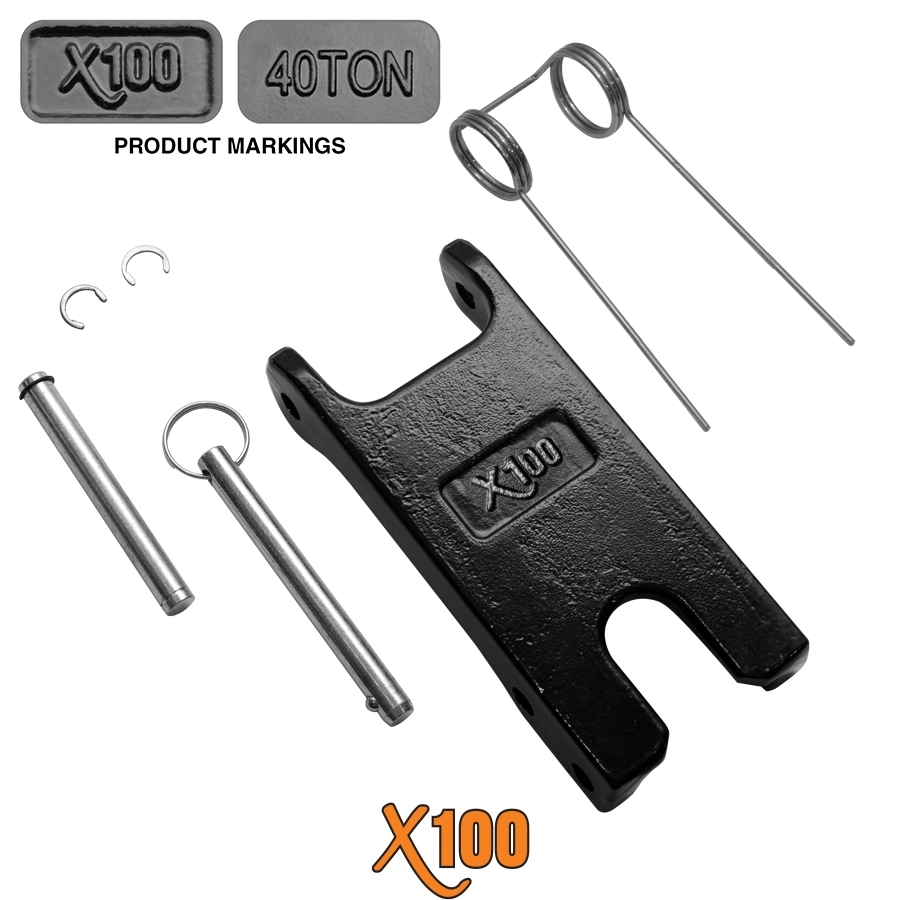

X100® X-Latch Kits for Crane Blocks
- Forged Heavy Duty Design
- Two Position Capability as a Locked Latch or Spring Latch
- High Quality Black Powder Coated Finish
- High Quality Zinc Plating On Pins and Hardware
- Stainless Steel Heavy Duty Spring Fatigue Tested to 10,000 Cycles
- Pins and Latches Ductility Tested For Safety
- Compatible as a Replacement Latch For Many Popular Crane Blocks
- Sold In Box Quantities or by the Piece
- Every Latch Sold with Extra Spring and C-Style Retaining Clips/Nuts
- X-Latch Repair Kits Available
- Markings: X100 Branding & Size
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | SIZE (TON) | WEIGHT/PIECE (LBS) | QTY/BOX | REPAIR KIT STOCK NUMBER |
|---|---|---|---|---|
| XLAT5T | 5 | 0.18 | 100 | XLAT5TRK |
| XLAT7T | 7 | 0.26 | 100 | XLAT7TRK |
| XLAT15T | 15 | 0.46 | 50 | XLAT15TRK |
| XLAT22-25T | 22-25 | 1.01 | 25 | XLAT22-25TRK |
| XLAT30T | 30 | 1.86 | 15 | XLAT30TRK |
| XLAT40T | 40 | 2.29 | 10 | XLAT40TRK |
| XLAT55-70T | 55-70 | 5.6 | 6 | XLAT55-70TRK |
| XLAT80-100T | 80-100 | 8.2 | 4 | XLAT80-100TRK |
| STOCK NUMBER | SIZE (TON) | DIMENSIONS (IN) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A dia. | B dia. | C | D | E | F | G | LOCK PIN (L x W) | SPRING PIN (L x W) | ||
| XLAT5T | 5 | 0.17 | 0.25 | 2.44 | 1.02 | 1.93 | 0.38 | 0.59 | 1.44 x 0.246 | 1.357 x 0.150 |
| XLAT7T | 7 | 0.20 | 0.25 | 3.02 | 1.02 | 2.50 | 0.38 | 0.59 | 1.44 x 0.246 | 1.368 x 0.194 |
| XLAT15T | 15 | 0.25 | 0.25 | 3.78 | 1.21 | 3.10 | 0.48 | 0.64 | 1.734 x 0.248 | 1.470 x 0.246 |
| XLAT22-25T | 22-25 | 0.38 | 0.38 | 5.17 | 1.53 | 4.29 | 0.65 | 0.88 | 2.21 x 0.373 | 1.793 x 0.373 |
| XLAT30T | 30 | 0.51 | 0.51 | 6.38 | 1.69 | 5.21 | 0.62 | 0.91 | 2.687 x 0.497 | 1.979 x 0.498 |
| XLAT40T | 40 | 0.38 | 0.38 | 6.56 | 2.94 | 5.55 | 0.98 | 2.19 | 3.789 x 0.374 | 3.25 x 0.372 |
| XLAT55-70T | 55-70 | 0.51 | 0.51 | 7.88 | 4.35 | 6.75 | 1.43 | 3.31 | 5.356 x 0.498 | 4.870 x 0.498 |
| XLAT80-100T | 80-100 | 0.76 | 0.75 | 9.50 | 4.39 | 7.87 | 1.54 | 3.31 | 5.834 x 0.764 | 4.871 x 0.749 |
REPAIR KITS: For Latches 5 & 7 Ton
REPAIR KITS: For Latches 15 Ton or Greater
| STOCK NUMBER | REPAIR KIT STOCK NUMBER |
|---|---|
| XLAT5T | XLAT5TRK |
| XLAT7T | XLAT7TRK |
| XLAT15T | XLAT15TRK |
| XLAT22-25T | XLAT22-25TRK |
| XLAT30T | XLAT30TRK |
| XLAT40T | XLAT40TRK |
| XLAT55-70T | XLAT55-70TRK |
| XLAT80-100T | XLAT80-100TRK |
