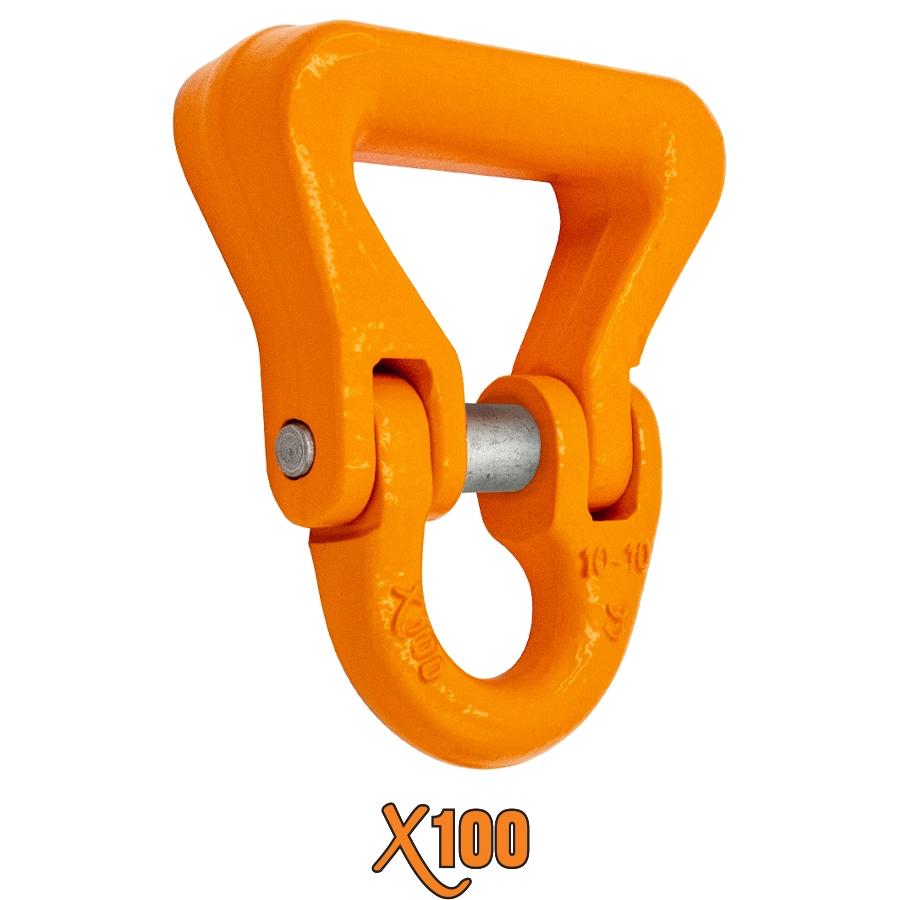

X100® Web Sling Connecting Links

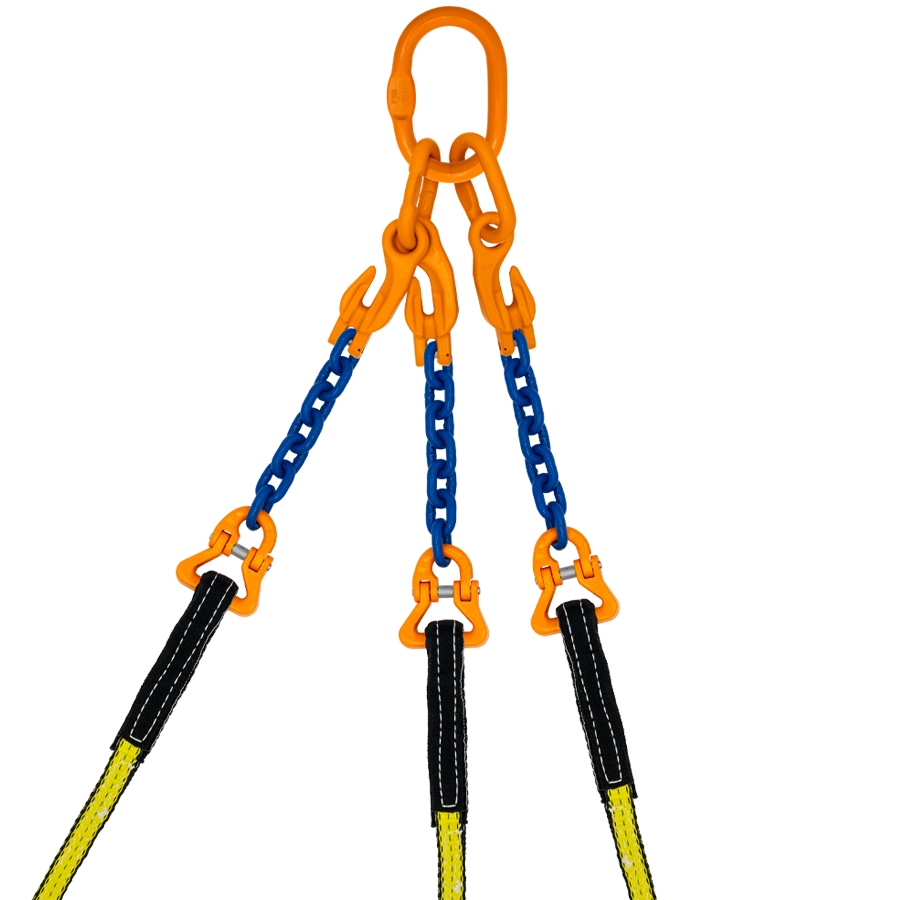

DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Meets ASME B30.26 Requirements
- 100% Forged Alloy Steel
- Quenched & Tempered
- Markings: X100 Brand, Size, Traceability
- All Load Pins Are 100% Individually Inspected and Tested
- Easily Recognizable X100 BLAZE ORANGE Powder Coating Which Provides Protection From Corrosion, and Enables Full Exposure of Identification Markings
- Load Must Be Evenly Distributed
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) |
WEIGHT/PIECE (LBS) | |
|---|---|---|---|---|
| 5:1 WIRE ROPE/SYNTHETIC | 4:1 CHAIN | |||
|
9/32 |
XCL281WEB |
3,440 |
4,300 |
0.713 |
|
5/16 |
XCL312WEB |
4,560 |
5,700 |
0.762 |
|
3/8 |
XCL375WEB |
7,040 |
8,800 |
1.416 |
|
1/2 |
XCL500WEB |
12,000 |
15,000 |
2.701 |
Replacement barrel and pin sets available.

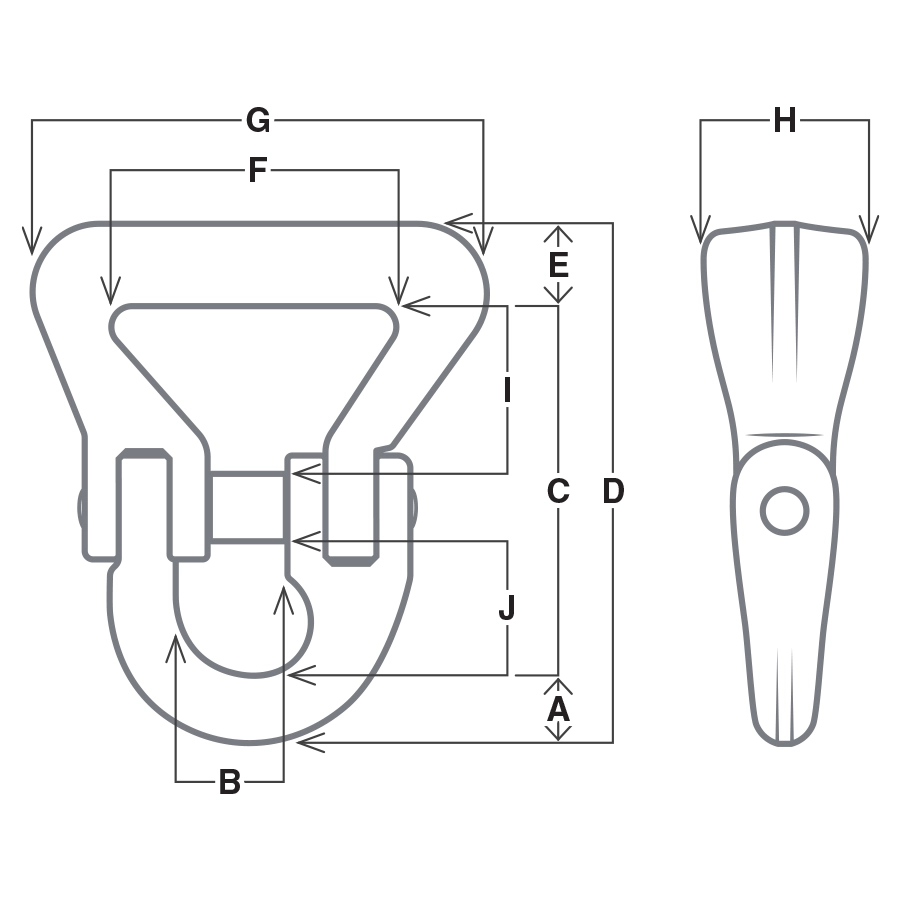

| SIZE (IN) | STOCK NUMBER | DIMENSIONS (IN) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | ||
|
9/32″ |
XCL281WEB |
0.348 |
0.76 |
2.584 |
3.446 |
0.526 |
1.794 |
2.745 |
0.913 |
1.202 |
0.965 |
|
5/16″ |
XCL312WEB |
0.406 |
0.747 |
2.614 |
3.533 |
0.516 |
1.803 |
2.75 |
0.923 |
1.19 |
0.999 |
|
3/8″ |
XCL375WEB |
0.53 |
0.911 |
2.945 |
4.073 |
0.642 |
2.21 |
3.563 |
1.14 |
1.348 |
1.119 |
|
1/2″ |
XCL500WEB |
0.641 |
1.176 |
3.819 | 5.219 | 0.791 | 2.581 | 4.121 | 1.391 | 1.758 | 1.461 |

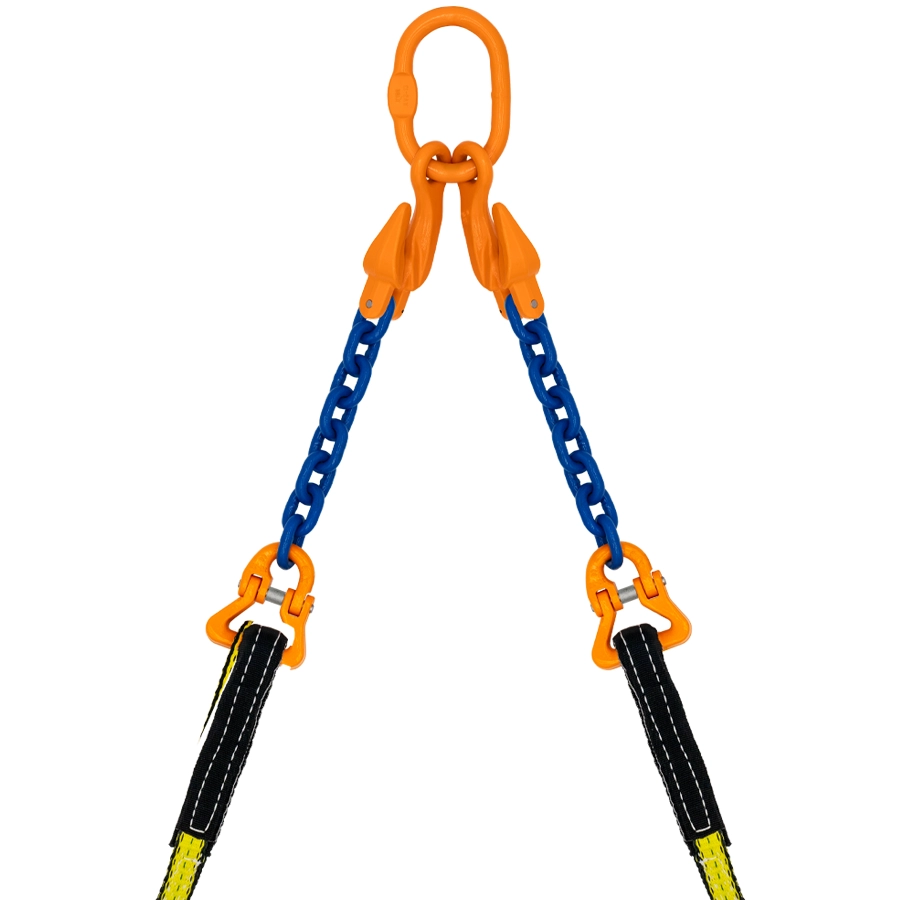

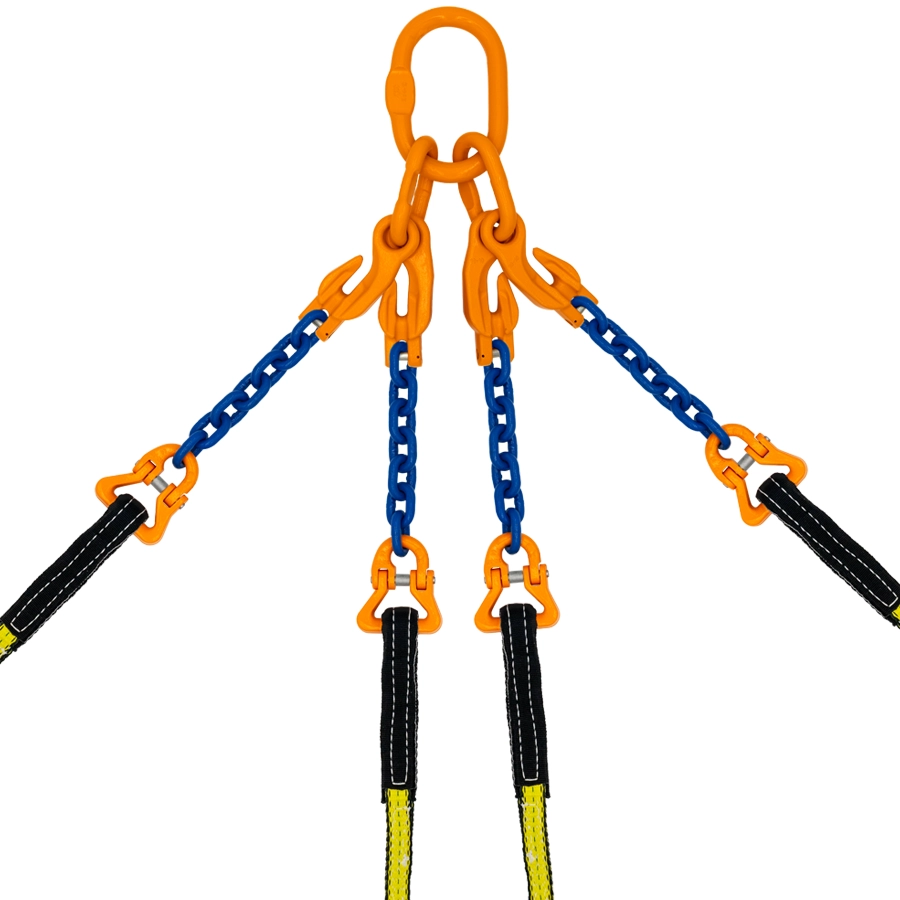

| SINGLE-LEG | DOUBLE-LEG | TRIPLE/QUADRUPLE-LEG | ||||||
|---|---|---|---|---|---|---|---|---|
| SIZE (IN) | STOCK NUMBER | AT 90º ANGLE | AT 60º ANGLE | AT 45º ANGLE | AT 30º ANGLE | AT 60º ANGLE | AT 45º ANGLE | AT 30º ANGLE |
|
9/32 |
XCL281WEB |
3,200 lbs. |
5,400 lbs. |
4,400 lbs. |
3,200 lbs. |
8,200 lbs. |
6,700 lbs. |
4,800 lbs. |
|
5/16 |
XCL312WEB |
3,200 lbs. |
5,400 lbs. |
4,400 lbs. |
3,200 lbs. |
8,200 lbs. |
6,700 lbs. |
4,800 lbs. |
|
3/8 |
XCL375WEB |
6,400 lbs. |
11,000 lbs. |
8,900 lbs. |
6,400 lbs. |
16,500 lbs. |
13,400 lbs. |
9,600 lbs. |
|
1/2 |
XCL500WEB |
9,600 lbs. |
16,600 lbs. |
13,500 lbs. |
9,600 lbs. |
24,900 lbs. |
20,300 lbs. |
14,400 lbs. |
Design Factor 5:1. Ratings match the synthetic ratings of the corresponding width of 2 Ply Slings.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
