Grade 30 Proof Coil

Also referred to as Proof Chain, Grade 28, System 3 and Grade 3

p

Grade 30 Proof Coil IS NOT RATED for OVERHEAD LIFTING by OSHA .

Grade 30 Proof Coil Markings

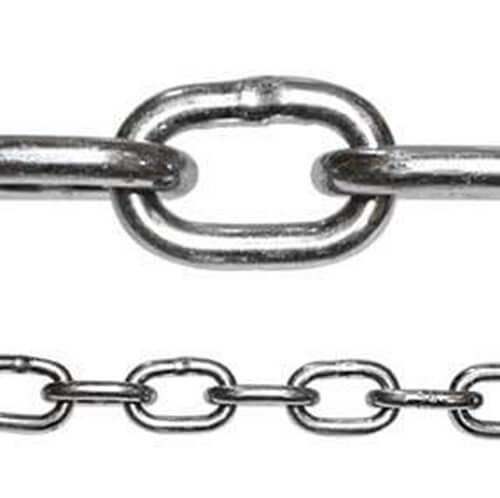

Welded Link Chain

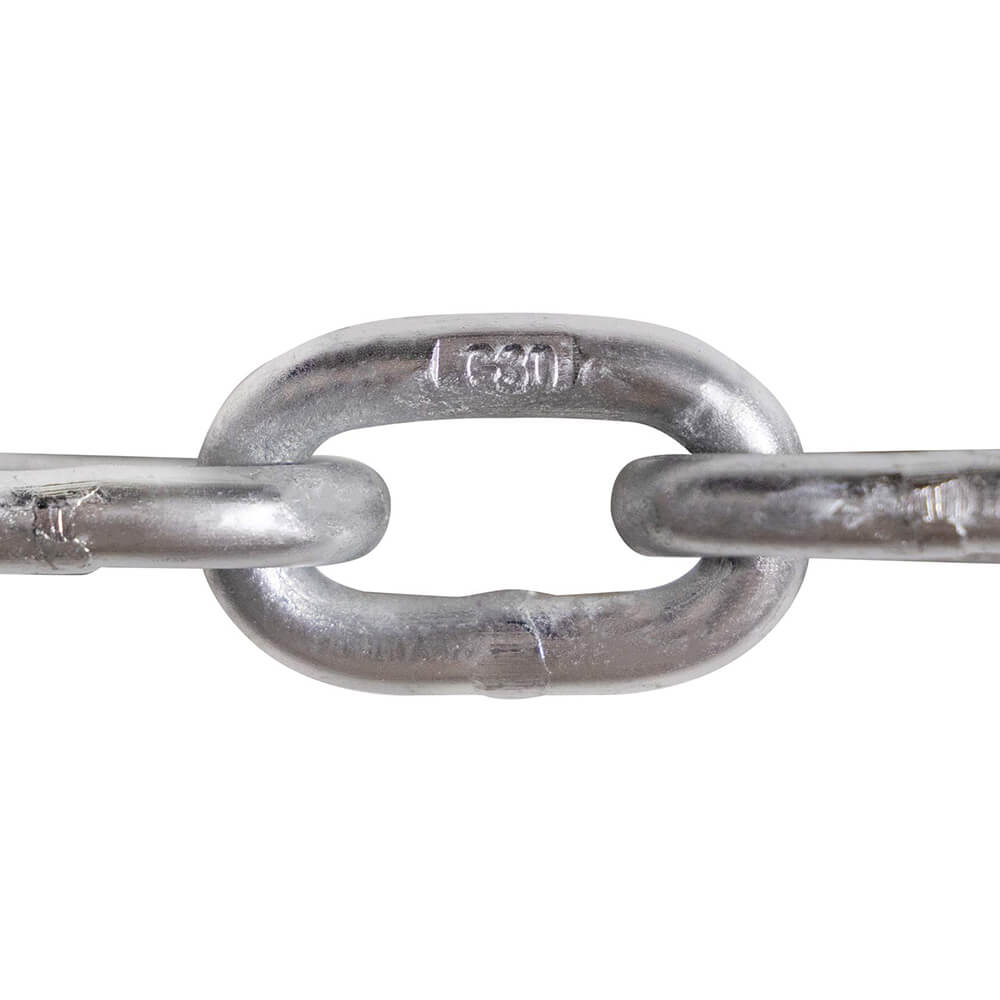

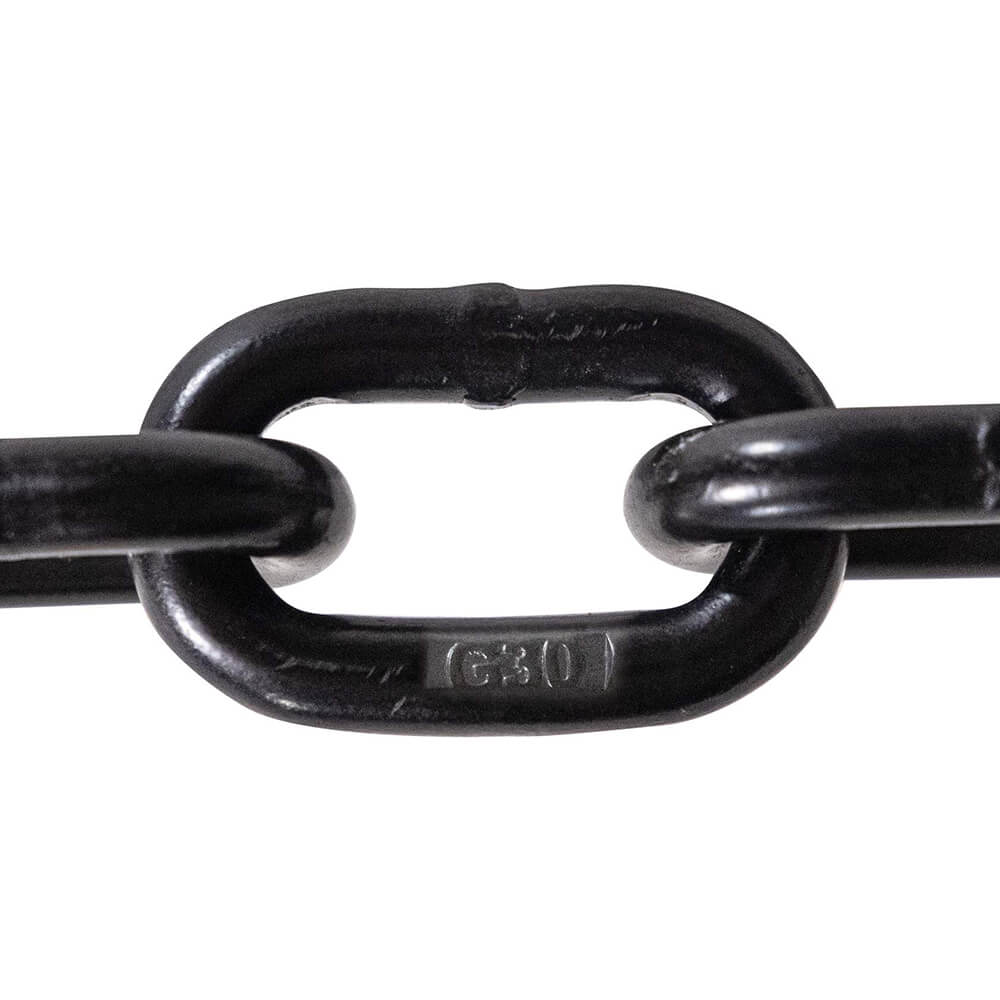

Grade 30 Proof Coil Markings

Grade 30 can be marked 28, 3, 30 or simply have no markings at all. There may be a letter before the number (like D3 or D30) which is usually a manufacturer’s ID code. G30 chain is made from Low Carbon Steel (except for stainless steel).

Grade 30 Proof Coil Surface Finishes

Grade 30 Proof Coil Surface Finishes - Self Colored

Self Colored – also known as SC (for self colored; the chain’s manufacturing process is complete after it gets welded), Shot Peened (a shot blast cleaning technique used by the manufacturers after the welding process), BP (for bright polished; a cleaning technique used by the manufacturers using a tumbler after the welding process)

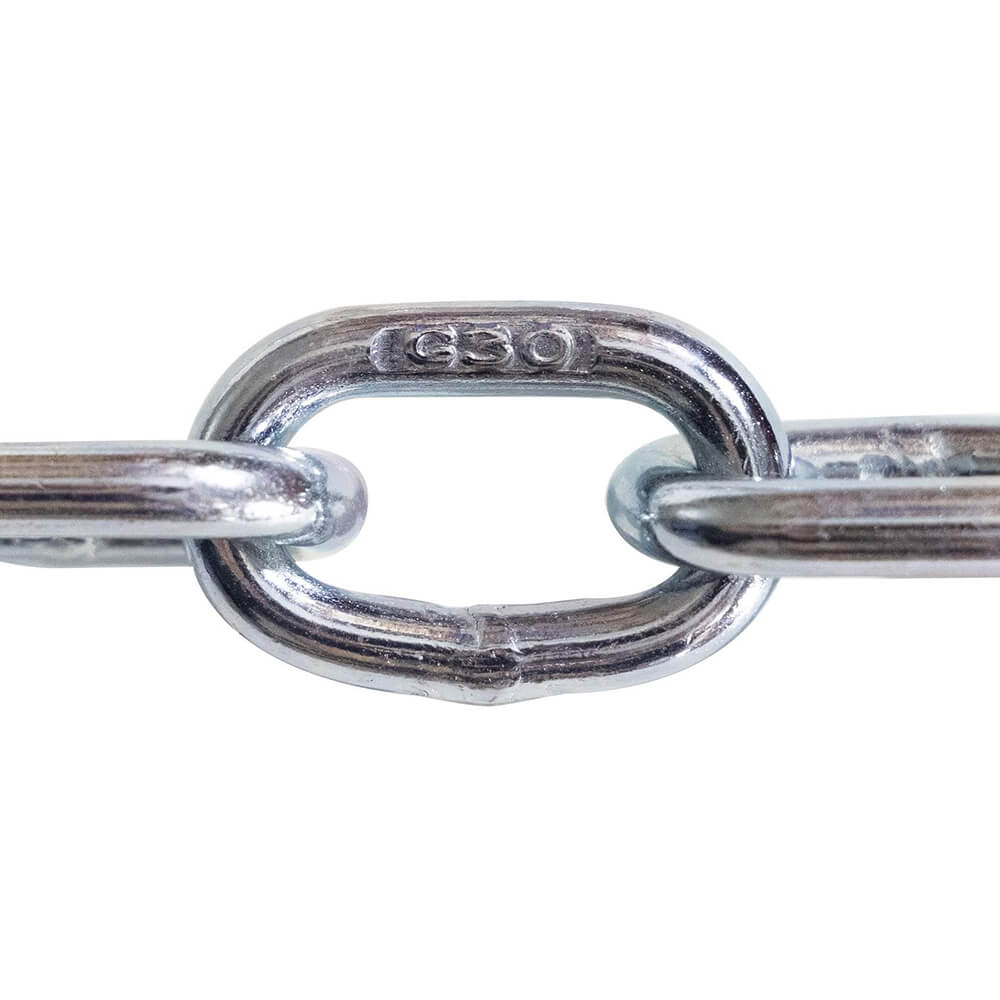

Grade 30 Proof Coil Surface Finishes - Zinc Plated

Zinc Plated – otherwise known as ZP, EG or Electro Galvanized which provides a modest rustproofing but is shiny and is great for retail

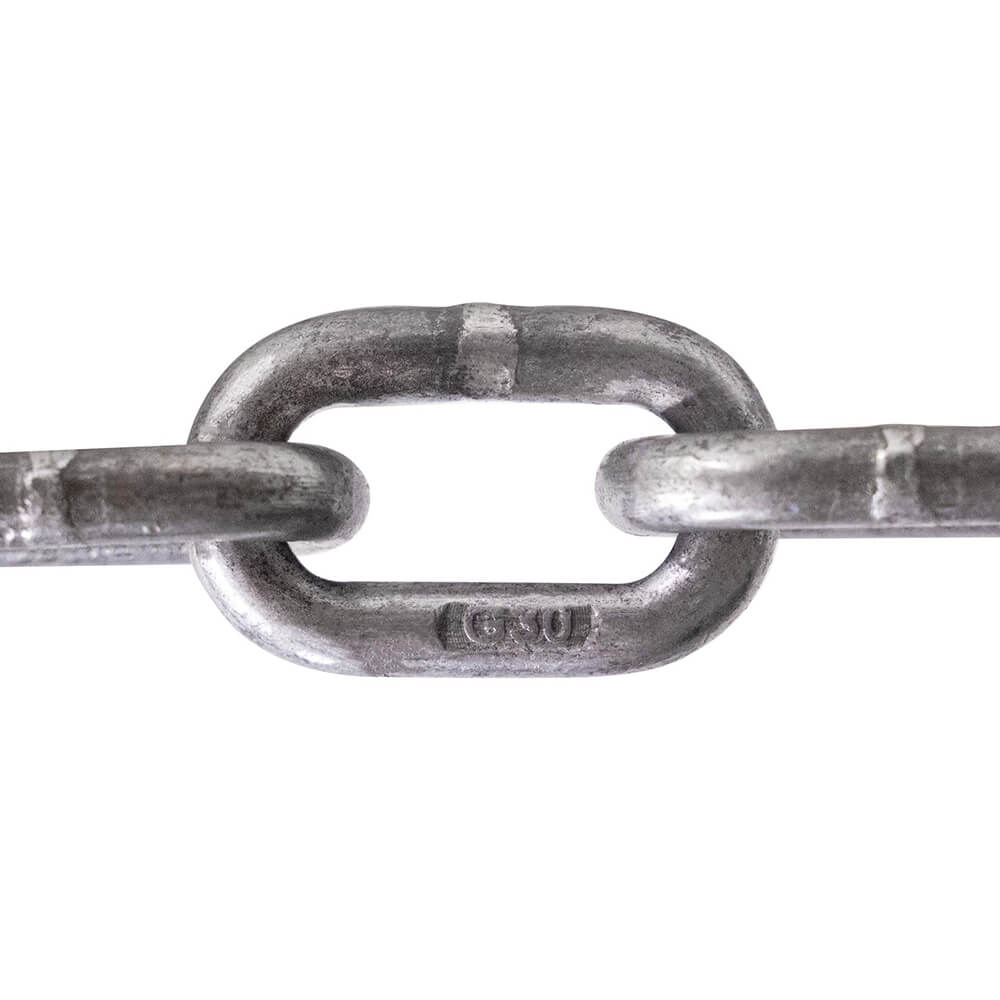

Grade 30 Proof Coil Surface Finishes - Hot Dip Galvanized

Hot Dip Galvanized – otherwise known as HDG or Hot Galvanized and provides the best rust proof coating of the three

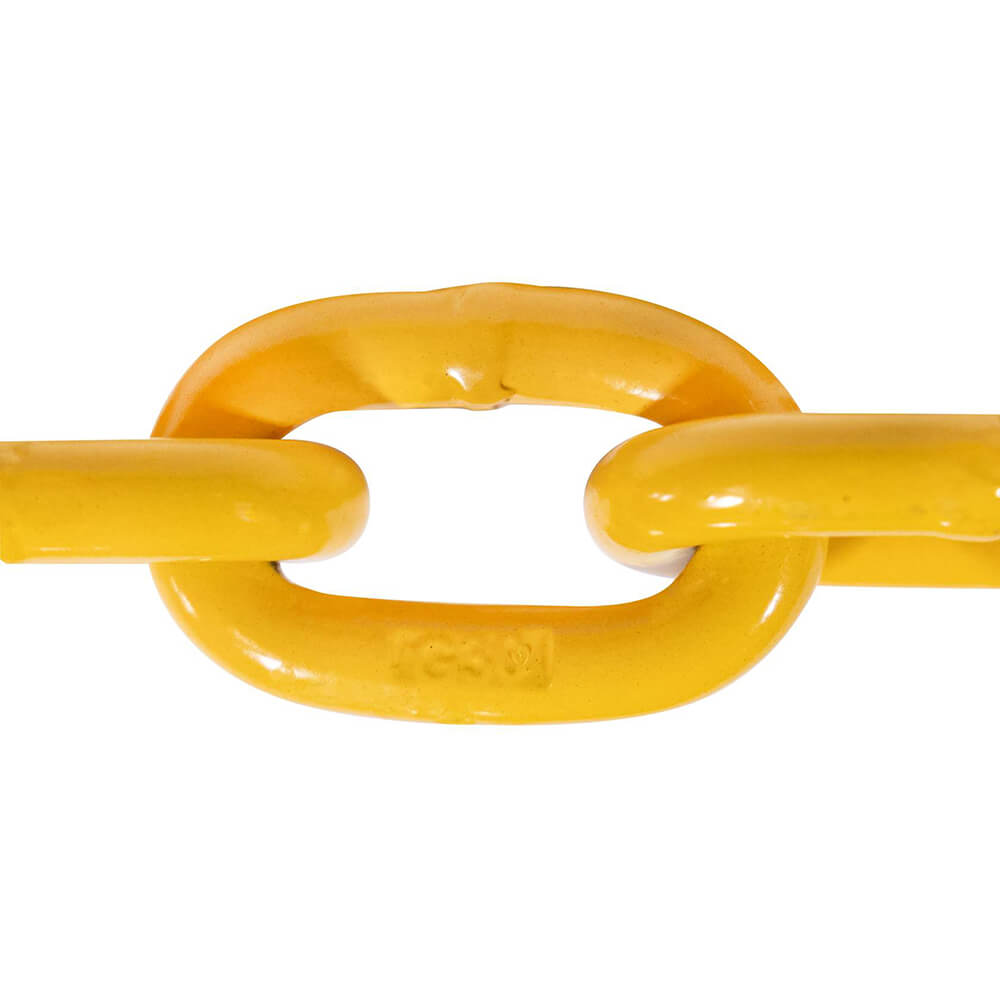

Grade 30 Proof Coil Surface Finishes - Powder Coated

Powder Coated – yellow and black are stocked here at Advantage; between 3/16-3/8

Grade 30 Proof Coil Surface Finishes - Powder Coated

Powder Coated – shown in yellow

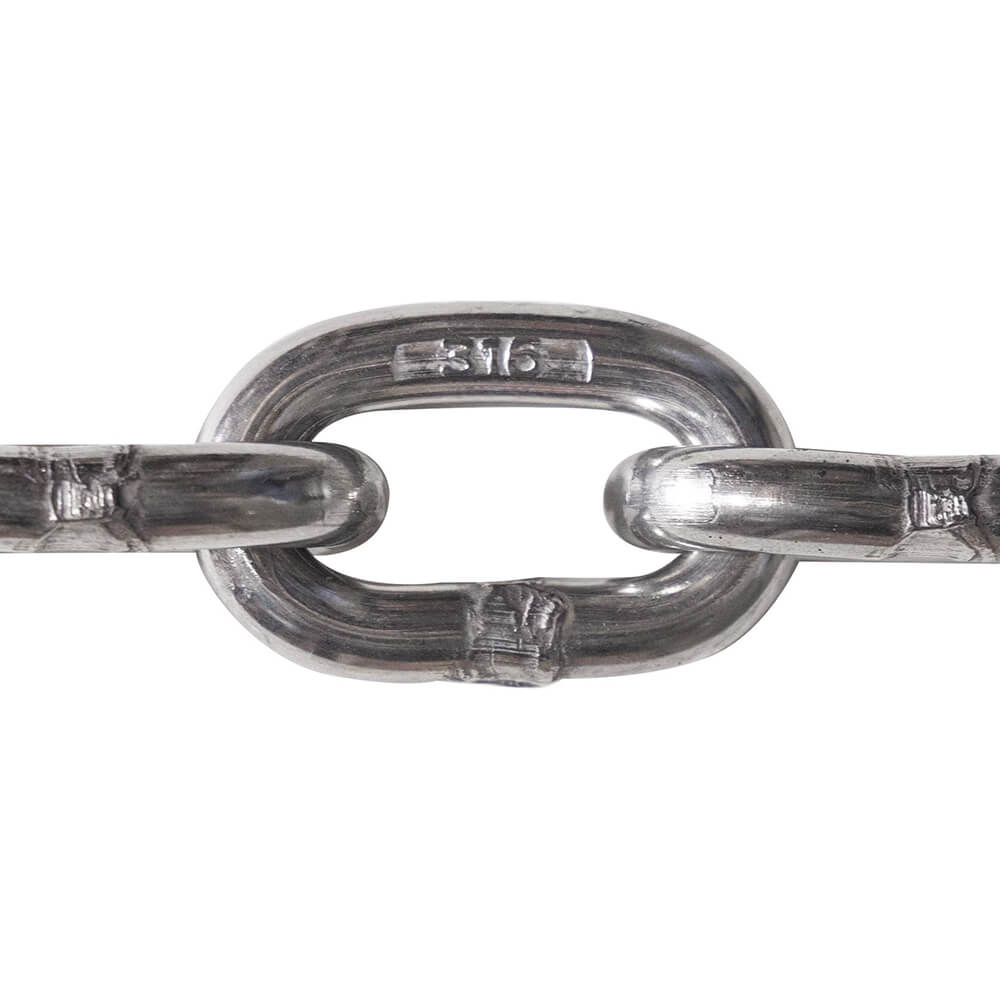

Grade 30 Proof Coil Surface Finishes - Stainless Steel Proof Coil

Stainless Steel Proof Coil – While technically unfinished, it is a highly corrosion resistant material. Available in Type 304 or Type 316. Stainless steel is a material, not a finish.

Grade 30 Proof Coil Common Uses

  • Trailer Chains
  • Lock Chains
  • Crowd Control
  • General Use that is not critical in nature or for OHL

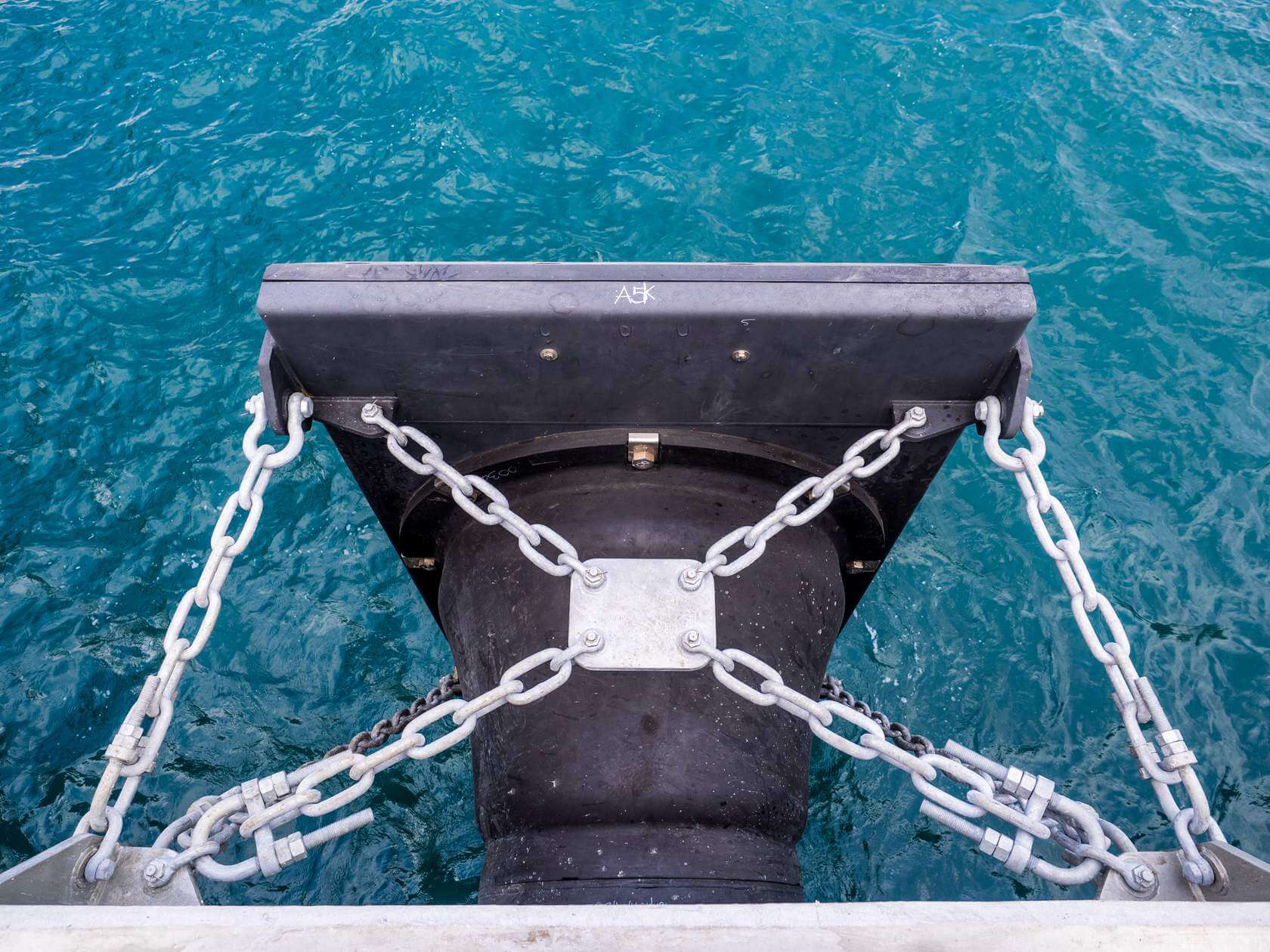

Stainless Steel Proof Coil Common Uses

Stainless Steel Proof Coil Common Uses

Commonly used in wastewater, chemical, nuclear, marine and other corrosive environments. Also  commonly used at amusement parks for crowd control.
