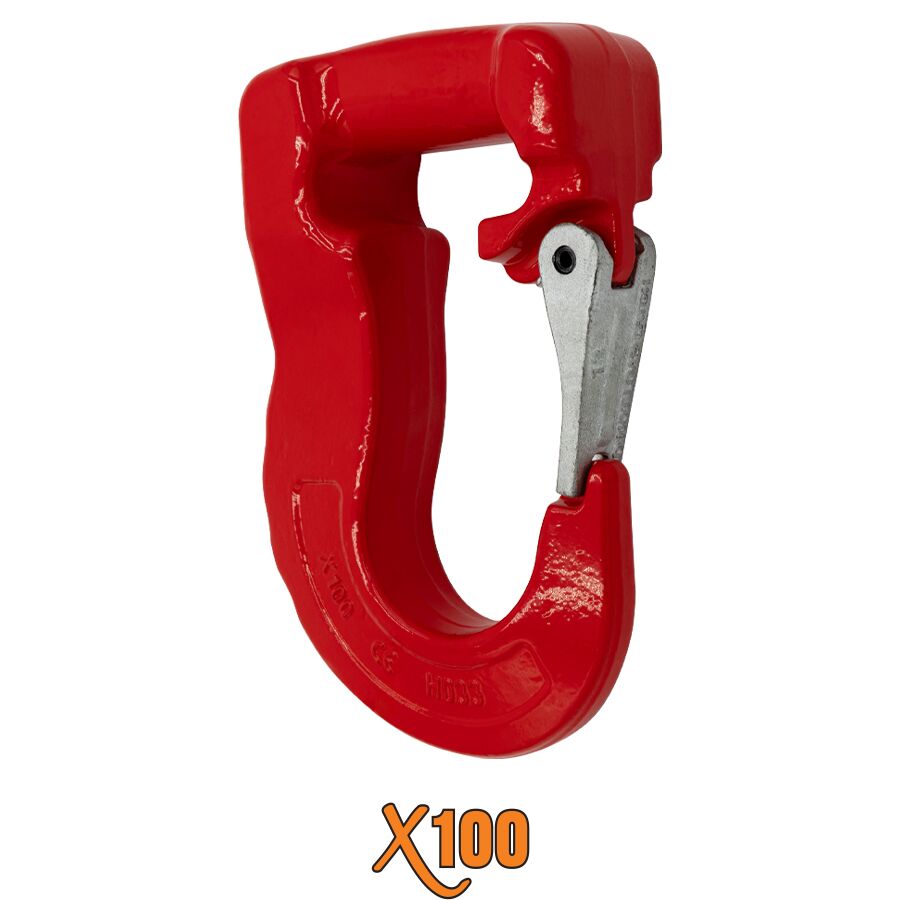

X100® Synthetic Round Sling Hooks
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated
- Forged Latch
- 100% Mag-Particle Crack Detection

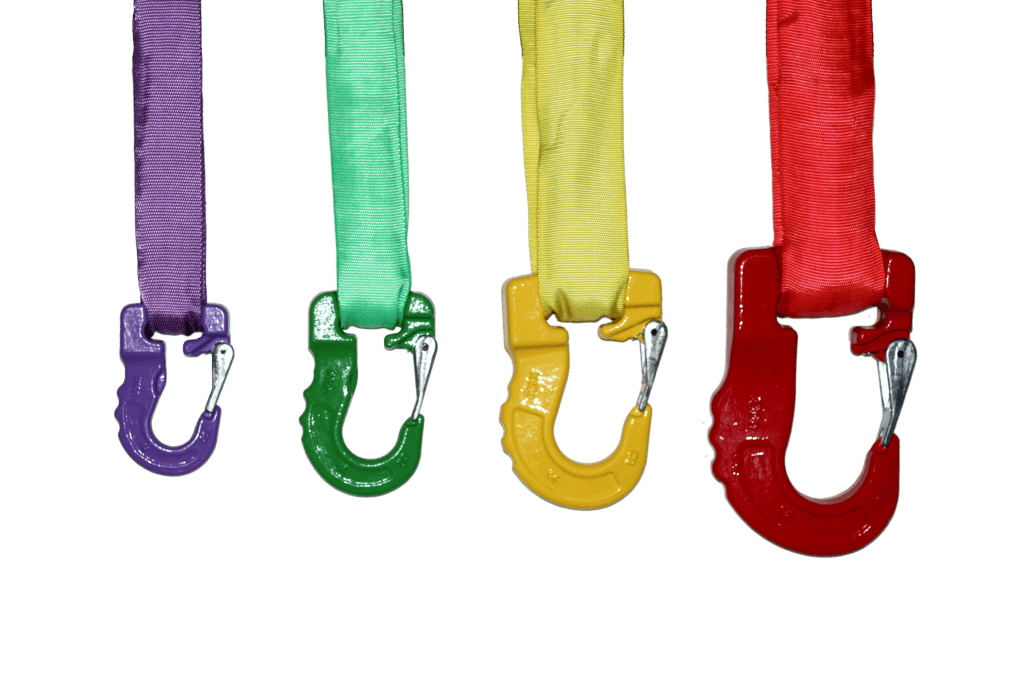

- Color Coded To Match Endless Round Sling
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | COLOR | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) |
|---|---|---|---|
| XE1HK | Purple | 2,600 | 1.61 |
| XE2HK | Green | 5,300 | 2.65 |
| XE3HK | Yellow | 8,400 | 4.85 |
| XE5HK | Red | 13,200 | 9.9 |

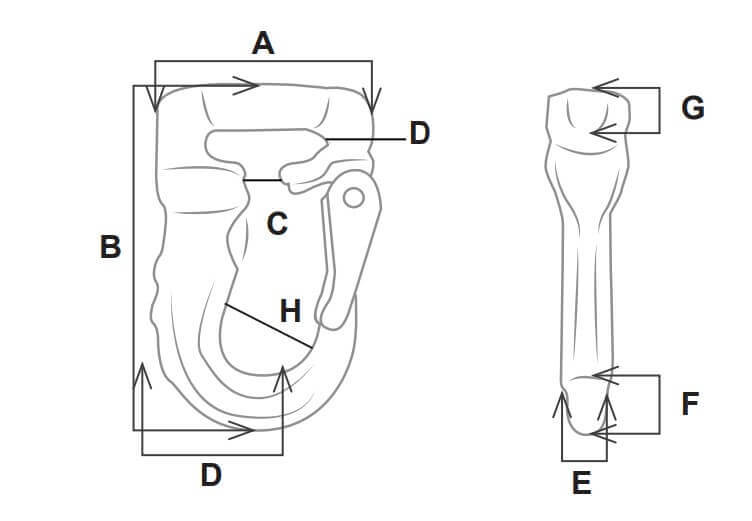

| STOCK NUMBER | DIMENSIONS (IN) | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XE1HK | 3.07 | 4.84 | 0.47 | 1.61 | 0.67 | 0.79 | 0.63 | 1.22 |
| XE2HK | 3.58 | 5.83 | 0.75 | 1.77 | 0.83 | 1.02 | 0.67 | 1.57 |
| XE3HK | 4.45 | 6.89 | 0.83 | 2.17 | 0.98 | 1.26 | 0.98 | 1.97 |
| XE5HK | 5.21 | 8.78 | 1.57 | 2.76 | 1.42 | 2.34 | 1.42 | 2.34 |
