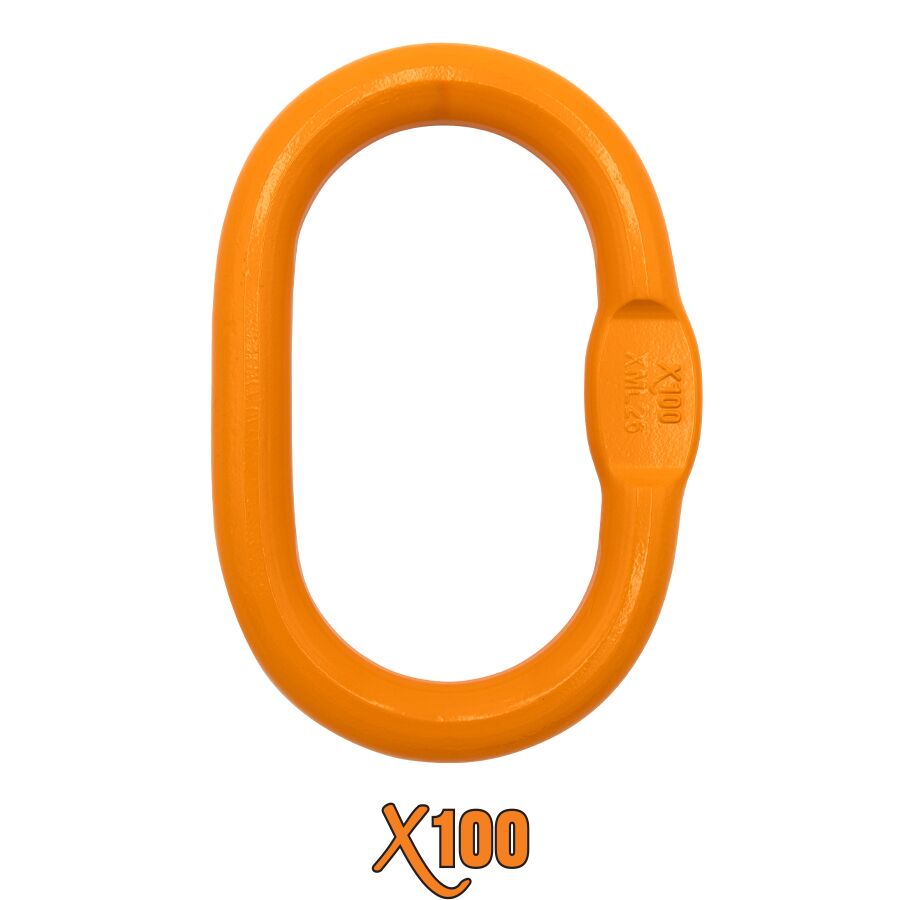

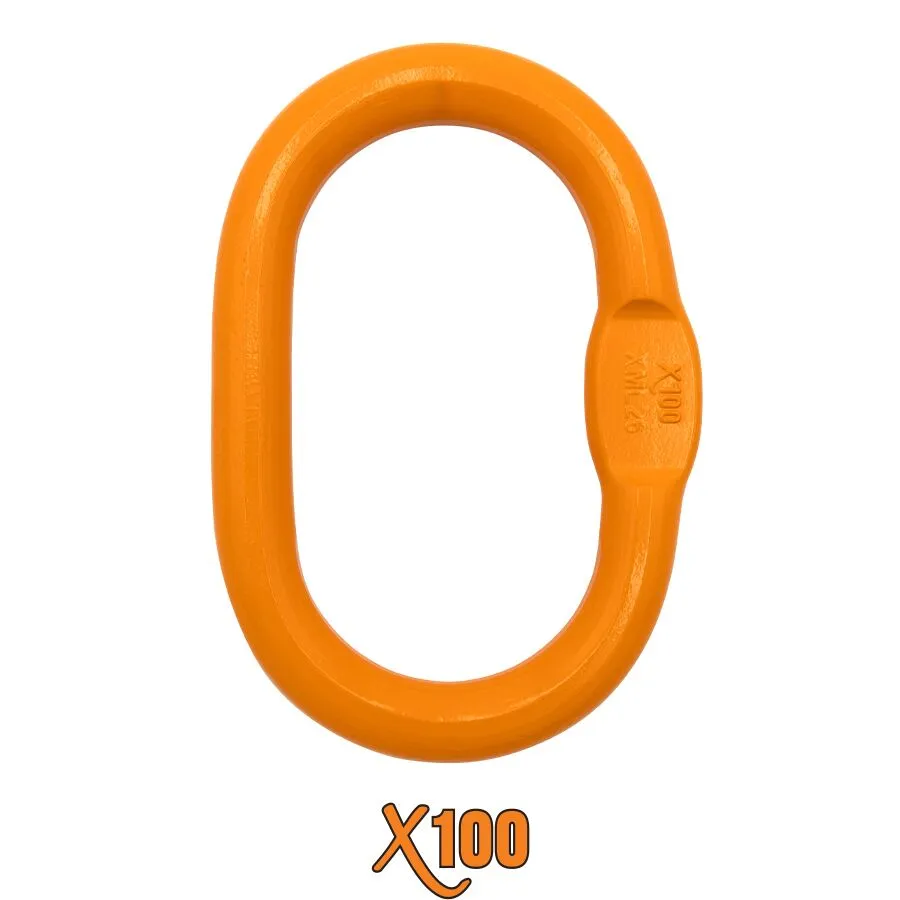

X100® Grade 100 Master Link
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- With engineered flat spot
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | DIMENSIONS | WORKING LOAD LIMIT | WEIGHT/PIECE (LBS.) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | 5:1 | 4:1 | |||
| 1/2” | XML13 | 0.53” | 2.37” | 4.35” | 4,800 lbs. | 6,000 lbs. | 0.75 |
| 5/8” | XML16 | 0.63” | 2.48” | 4.40” | 6,880 lbs. | 8,600 lbs. | 1.17 |
| 3/4” | XML19 | 0.76” | 3.54” | 6.30” | 10,320 lbs. | 12,900 lbs. | 1.90 |
| 7/8” | XML22 | 0.89” | 3.54” | 6.30” | 14,080 lbs. | 17,600 lbs. | 3.53 |
| 1” | XML26 | 1.14” | 3.93” | 7.09” | 24,000 lbs. | 30,000 lbs. | 5.42 |
| 1 1/4” | XML32 | 1.36” | 4.30” | 7.87” | 31,280 lbs. | 39,100 lbs. | 9.13 |
| 1 1/2” | XML38 | 1.40” | 5.66” | 10.25” | 48,880 lbs. | 61,100 lbs. | 13.71 |
| 1 3/4 | XML45 | 1.75” | 6” | 12” | 63,440lbs. | 79,300 lbs. | 20.00 |
| 2″ | XML50 | 1.95” | 7.48” | 13.78” | 82,880lbs. | 103,600 lbs. | 30.00 |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
| STOCK NUMBER | DIMENSIONS | ||
|---|---|---|---|
| A | B | C | |
| XML13 | 0.53” | 2.37” | 4.35” |
| XML16 | 0.63” | 2.48” | 4.40” |
| XML19 | 0.76” | 3.54” | 6.30” |
| XML22 | 0.89” | 3.54” | 6.30” |
| XML26 | 1.14” | 3.93” | 7.09” |
| XML32 | 1.36” | 4.30” | 7.87” |
| XML38 | 1.40” | 5.66” | 10.25” |
| XML45 | 1.75” | 6” | 12” |
| XML50 | 1.95” | 7.48” | 13.78” |
When recertifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
