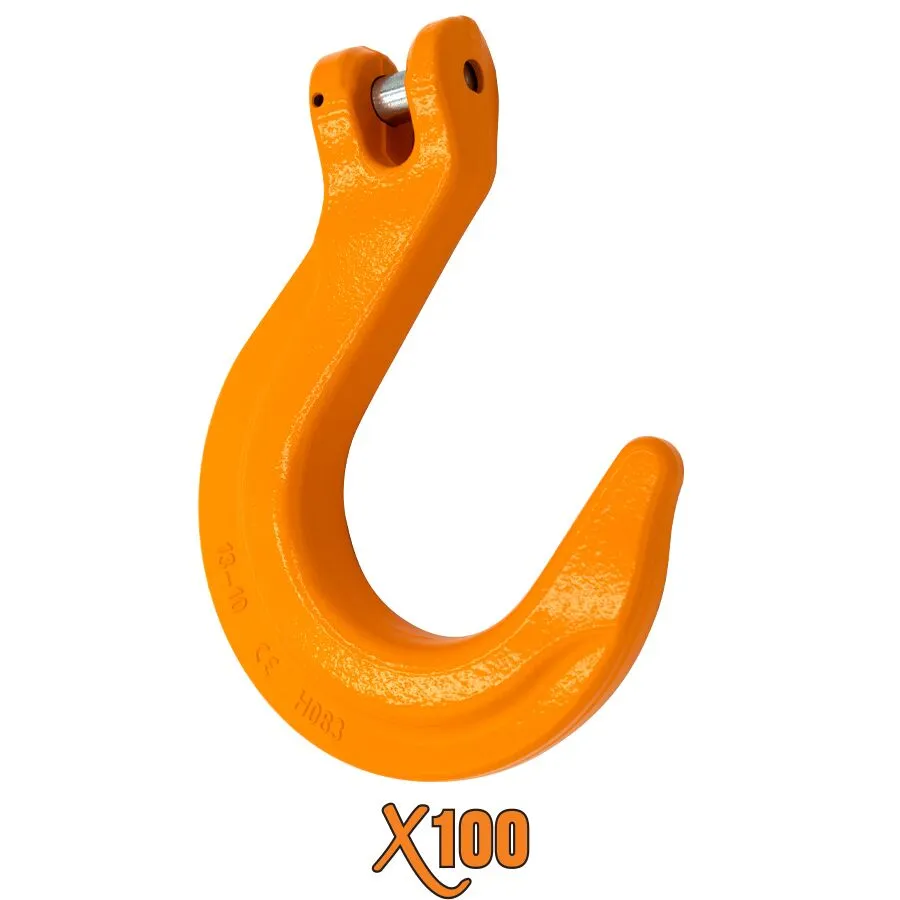

X100® Clevis Foundry Hooks
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- Embossed Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT AT TIP (LBS) | WORKING LOAD LIMIT AT BOWL (LBS) | WEIGHT/PIECE (LBS) |
|---|---|---|---|---|
| 9/32-5/16 | XCF281-312 | 2,850 | 5,700 | 2.0 |
| 3/8 | XCF375 | 4,400 | 8,800 | 4.3 |
| 1/2 | XCF500 | 7,500 | 15,000 | 8.0 |
| 5/8 | XCF625 | 11,300 | 22,600 | 14.2 |

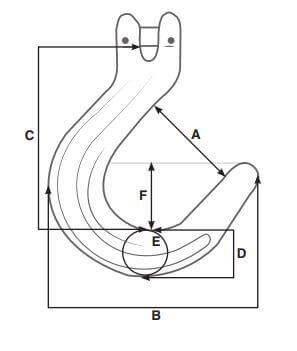

| STOCK NUMBER | DIMENSIONS (IN) | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| XCF281-312 | 2.20 | 4.90 | 4.86 | 1.35 | 0.76 | 1.57 |
| XCF375 | 2.85 | 5.95 | 5.38 | 1.23 | 0.98 | 2.05 |
| XCF500 | 3.50 | 7.22 | 6.65 | 1.63 | 1.35 | 2.38 |
| XCF625 | 4.30 | 8.56 | 7.81 | 2.02 | 1.59 | 3.04 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
