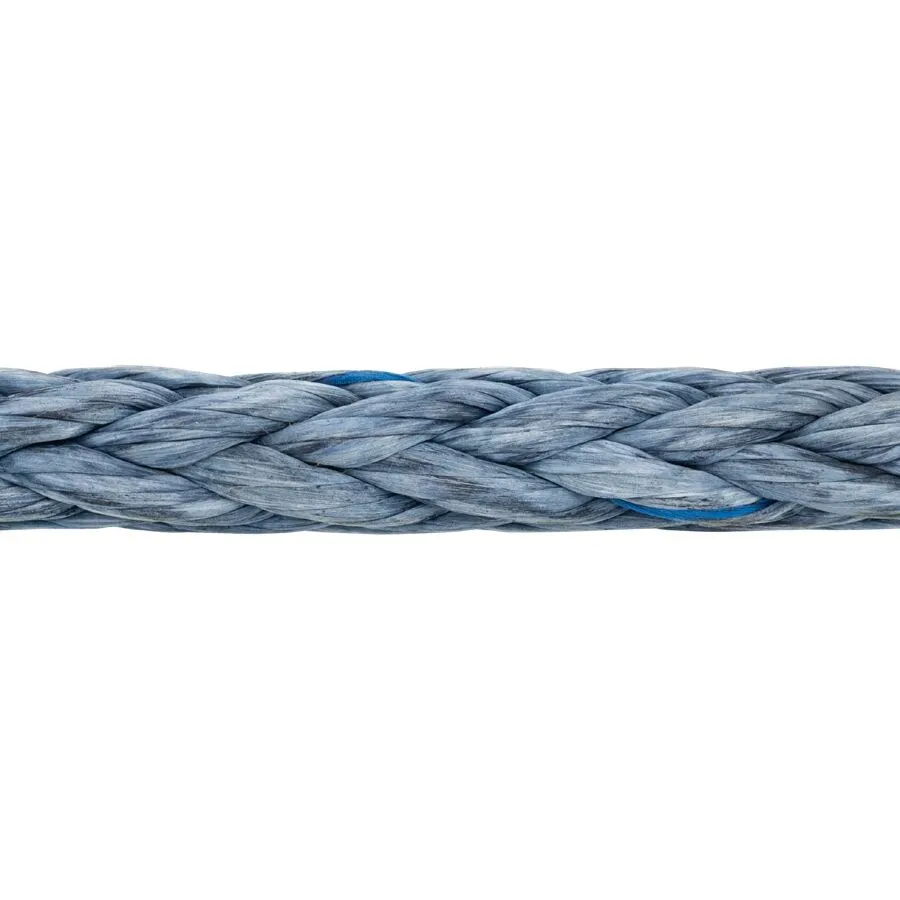

TEXTEEL-ONE 12-Strand HMPE Rope
A buoyant high performance rope boasting the equivalent strength of a steel rope.
- Maximum Performance: 12-strand construction with the strength and elongation characteristics of a steel rope at just one seventh the weight
- Reliability: Urethane coating for superior abrasion resistance, long service life and high flexibility. UV resistant.
- Specific Gravity: 0.975 floating
- Melting Point: 145˚C
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| ROPE SIZE DIAMETER | STOCK NUMBER | DESCRIPTION | COLOR | WORKING LOAD LIMIT (LBS.) | WEIGHT/100′ (LBS.) |
| 1/4″ | UH1214 | 1/4″ HMPE 12-Strand Rope | Gray | 1,600 | 1.41 |
| 3/8″ | UH1238 | 3/8″ HMPE 12-Strand Rope | Gray | 4,300 | 3.83 |
| 1/2″ | UH1212 | 1/2″ HMPE 12-Strand Rope | Gray | 6,420 | 5.78 |
| 5/8″ | UH1258 | 5/8″ HMPE 12-Strand Rope | Gray | 11,240 | 10.08 |
| 3/4″ | UH1234 | 3/4″ HMPE 12-Strand Rope | Gray | 13,030 | 12.36 |
| 7/8″ | UH1278 | 7/8″ HMPE 12-Strand Rope | Gray | 18,430 | 17.94 |
| 1″ | UH121 | 1″ HMPE 12-Strand Rope | Gray | 22,030 | 21.30 |
| 1-1/8″ | UH12118 | 1-1/8″ HMPE 12-Strand Rope | Gray | 29,220 | 28.90 |
| 1-1/4″ | UH12114 | 1-1/4″ HMPE 12-Strand Rope | Gray | 31,920 | 32.73 |
| 1-1/2″ | UH12112 | 1-1/2″ HMPE 12-Strand Rope | Gray | 42,700 | 46.17 |
| 1-3/4″ | UH12134 | 1-3/4″ HMPE 12-Strand Rope | Gray | 61,140 | 69.29 |
| 2″ | UH122 | 2″ HMPE 12-Strand Rope | Gray | 96,220 | 94.50 |
| ROPE SIZE DIAMETER | WORKING LOAD LIMIT (LBS.) | ||
 VERTICAL |  CHOKER |  BASKET | |
| 1/4″ | 1,450 | 1,160 | 2,900 |
| 3/8″ | 3,880 | 3,104 | 7,760 |
| 1/2″ | 5,780 | 4,624 | 11,560 |
| 5/8″ | 9,200 | 7,360 | 18,400 |
| 3/4″ | 11,700 | 9,360 | 23,400 |
| 7/8″ | 16,590 | 13,272 | 33,180 |
| 1″ | 19,800 | 15,840 | 39,600 |
| 1-1/8″ | 26,300 | 21,040 | 52,600 |
| 1-1/4″ | 28,720 | 22,976 | 57,440 |
| 1-1/2″ | 42,480 | 33,984 | 84,960 |
| 1-3/4″ | 55,020 | 44,016 | 110,040 |
| 2″ | 75,260 | 60,208 | 150,520 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
