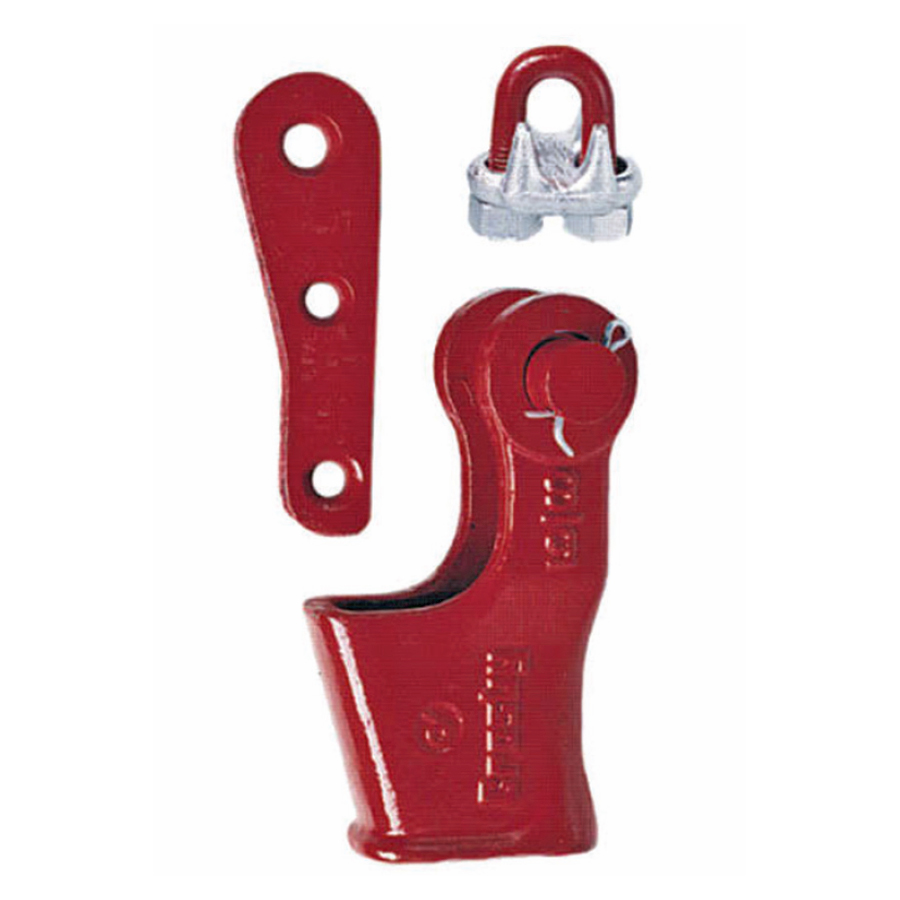

SOCKET, WEDGE, PIN, AND WIRE ROPE CLIP
| SIZE | STOCK NUMBER | WEIGHT/PIECE (LBS.) | STOCK NUMBER WEDGE ONLY | WEDGE ONLY WEIGHT/PIECE (LBS.) | |
| (IN.) | (MM) | ||||
| 3/8 | 9-10 | 1035000 | 3.18 | 1035555 | .50 |
| 1/2 | 11-13 | 1035009 | 6.15 | 1035564 | 1.05 |
| 5/8 | 14-16 | 1035018 | 9.70 | 1035573 | 1.79 |
| 3/4 | 18-19 | 1035027 | 14.50 | 1035582 | 2.60 |
| 7/8 | 20-22 | 1035036 | 21.50 | 1035591 | 4.00 |
| 1 | 24-26 | 1035045 | 30.75 | 1035600 | 5.37 |
| 1-1/8 | 28 | 1035054 | 45.30 | 1035609 | 7.30 |
| 1-1/4 | 30-32 | 1035063 | 64.90 | 1035618 | 10.60 |

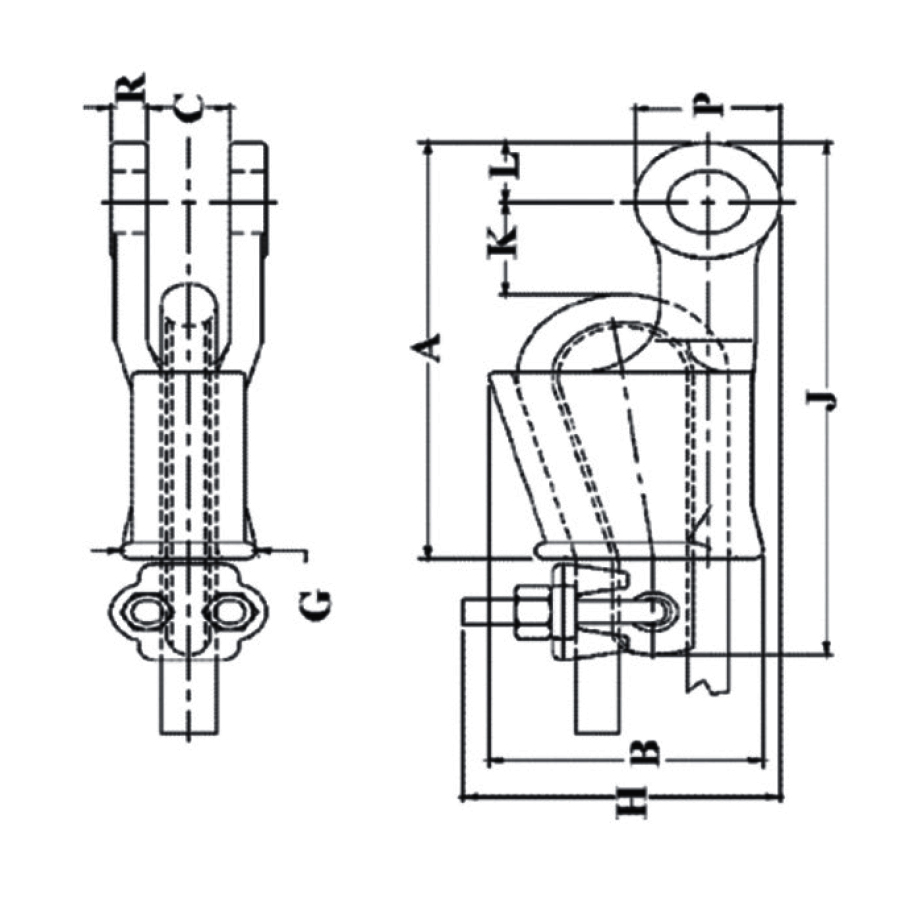

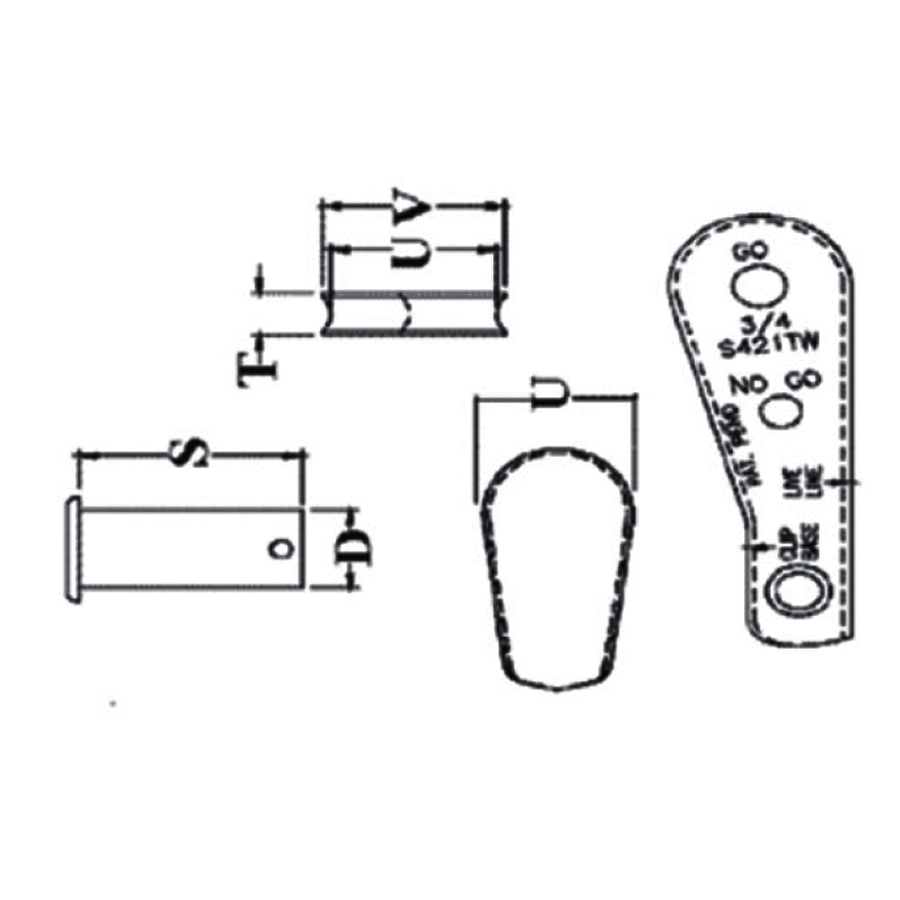

WEDGE SOCKET DIMENSIONS
| SIZE | STOCK NUMBER | DIMENSIONS (IN.) | |||||||||||||||
| (IN.) | (MM) | A | B | C | D | G | H | J* | K* | L | P | R | S | T | U | V | |
| 3/8 | 9-10 | 1035000 | 5.69 | 2.72 | .81 | .81 | 1.38 | 3.06 | 7.80 | 1.88 | .88 | 1.56 | .44 | 2.13 | .44 | 1.25 | 1.38 |
| 1/2 | 11-13 | 1035009 | 6.88 | 3.47 | 1.00 | 1.00 | 1.62 | 3.76 | 8.91 | 1.26 | 1.06 | 1.94 | .50 | 2.56 | .53 | 1.75 | 1.88 |
| 5/8 | 14-16 | 1035018 | 8.25 | 4.30 | 1.25 | 1.19 | 2.12 | 4.47 | 10.75 | 1.99 | 1.22 | 2.25 | .56 | 3.25 | .69 | 2.00 | 2.19 |
| 3/4 | 18-19 | 1035027 | 9.88 | 5.12 | 1.50 | 1.38 | 2.44 | 5.28 | 12.36 | 2.41 | 1.40 | 2.63 | .66 | 3.63 | .78 | 2.34 | 2.56 |
| 7/8 | 20-22 | 1035036 | 11.25 | 5.85 | 1.75 | 1.63 | 2.69 | 6.16 | 14.37 | 2.48 | 1.67 | 3.13 | .75 | 4.31 | .88 | 2.69 | 2.94 |
| 1 | 24-26 | 1035045 | 12.81 | 6.32 | 2.00 | 2.00 | 2.94 | 6.96 | 16.29 | 3.04 | 2.00 | 3.75 | .88 | 4.70 | 1.03 | 2.88 | 3.28 |
| 1-1/8 | 28 | 1035054 | 14.38 | 6.92 | 2.25 | 2.25 | 3.31 | 7.62 | 18.34 | 2.56 | 2.25 | 4.25 | 1.00 | 5.44 | 1.10 | 3.25 | 3.56 |
| 1-1/4 | 30-32 | 1035063 | 16.34 | 8.73 | 2.62 | 2.50 | 3.56 | 9.39 | 20.48 | 2.94 | 2.34 | 4.50 | 1.06 | 6.13 | 1.19 | 4.62 | 4.94 |
Scroll right for more information >
*Nominal
For intermediate wire rope sizes, use next larger size socket.
This wedge is designed to be assembled only in the socket body with which it is sold.
