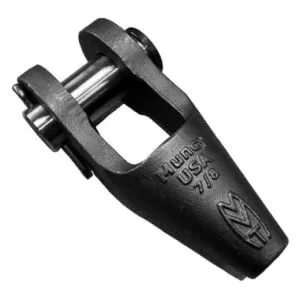

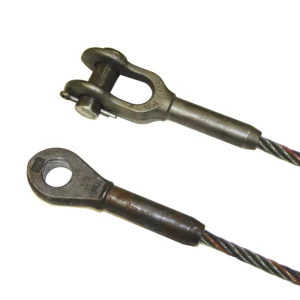

- Open Spelter Sockets - Specifications

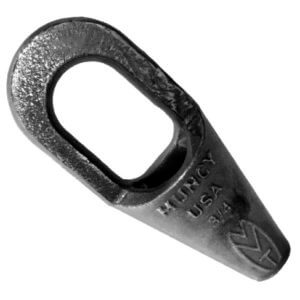

- Closed Spelter Sockets - Specifications

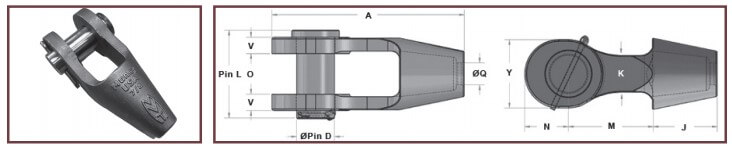

- Open Spelter Sockets - Dimension Reference

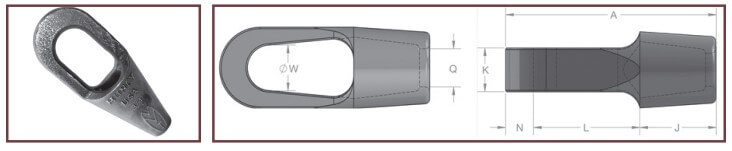

- Closed Spelter Sockets - Dimension Reference
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
| ITEM NUMBER | PATTERN NUMBER | ROPE DIA. IN./MM | STRAND DIA. IN./MM | WEIGHT IN./MM |
|---|---|---|---|---|
| 4043941 | L-7000G | .56-.63 | .50 | 4 |
| 14-16 | 13 | 1.8 | ||
| 4043942 | LL7001-G | .75 | .56-.63 | 7 |
| 17-19 | 14-16 | 3.2 | ||
| 4043943 | L7002-G | .88 | .69-.75 | 10 |
| 20-22 | 17-19 | 4.5 | ||
| 4043944 | L7003-G | 1 | .81-.88 | 15 |
| 23-26 | 20-22 | 6.8 | ||
| 4093945 | L7004-G | 1.13 | 0.94-1.00 | 23 |
| 27-30 | 23-25 | 10.4 | ||
| 4043946 | L7005-G | 1.25-1.38 | 1.06-1.13 | 33 |
| 31-36 | 26-29 | 15 | ||
| 4043947 | L7006-G | 1.5 | 1.19-1.25 | 43 |
| 37-39 | 30-32 | 19.5 |
Galvanized
| ITEM NUMBER | PATTERN NUMBER | ROPE DIA. IN./MM | STRAND DIA. IN./MM | WEIGHT IN./KG |
|---|---|---|---|---|
| 4124439 | L-7032G | .56-.63 | .50 | 3 |
| 14-16 | 13 | 1.4 | ||
| 4111726 | L-7033G | .75 | .56-.63 | 5 |
| 17-19 | 14-16 | 2.3 | ||
| 4060012 | L-704G | .88 | .69-.75 | 9 |
| 20-22 | 17-19 | 4.1 | ||
| 4060013 | L-7035G | 1 | .81-.88 | 12 |
| 23-26 | 20-22 | 5.4 | ||
| 4058967 | L-7036G | 1.13 | 0.94-1.00 | 17 |
| 27-30 | 23-25 | 7.7 | ||
| 1085018 | L-7037G | 1.25-1.38 | 1.06-1.13 | 22 |
| 31-36 | 26-29 | 10 | ||
| 4048218 | L-7038G | 1.5 | 1.19-1.25 | 30 |
| 37-39 | 30-32 | 13.6 |
| ITEM NUMBER | DIMENSIONS (IN) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | J | K | M | N | O | Q | V | Y | PIN | ||
| LENGTH | DIA. | ||||||||||
| 4043941 | 6.75 | 3.00 | 1.25 | 2.50 | 1.25 | 1.25 | 0.69 | 0.56 | 2.25 | 3.13 | 1.19 |
| 4043942 | 7.94 | 3.50 | 1.50 | 3.00 | 1.44 | 1.50 | 0.81 | 0.63 | 2.63 | 3.63 | 1.38 |
| 4043943 | 9.22 | 4.00 | 1.75 | 3.50 | 1.75 | 1.75 | 0.94 | 0.75 | 3.13 | 4.25 | 1.63 |
| 4043944 | 10.56 | 4.50 | 2.00 | 4.00 | 2.06 | 2.00 | 1.13 | 0.88 | 3.75 | 4.88 | 2.00 |
| 4093945 | 11.81 | 5.00 | 2.38 | 4.49 | 2.31 | 2.25 | 1.25 | 1.00 | 4.13 | 5.44 | 2.25 |
| 4043946 | 13.19 | 5.50 | 2.75 | 5.00 | 2.69 | 2.50 | 1.50 | 1.13 | 4.75 | 6.13 | 2.50 |
| 4043947 | 15.13 | 6.60 | 3.00 | 6.00 | 3.13 | 3.00 | 1.63 | 1.19 | 5.38 | 6.88 | 2.75 |
| ITEM NUMBER | DIM. A IN./MM | DIM. C IN./MM | DIM. D IN./MM | DIM. F IN./MM | DIM. J IN./MM | DIM. L IN./MM | DIM. M IN./MM | DIM. N IN./MM |
|---|---|---|---|---|---|---|---|---|
| 4124439 | 6.38 | 2.63 | 1.38 | .69 | 2.38 | 3 | 1 | 2.5 |
| 162 | 67 | 35 | 18 | 60 | 76 | 25 | 64 | |
| 4111726 | 7.63 | 3 | 1.63 | .81 | 2.75 | 3.5 | 1.25 | 3.06 |
| 194 | 76 | 41 | 21 | 70 | 89 | 32 | 78 | |
| 4060012 | 8.88 | 3.63 | 1.88 | 1 | 3.13 | 4 | 1.5 | 3.56 |
| 226 | 92 | 48 | 25 | 80 | 102 | 38 | 90 | |
| 4060013 | 10 | 4.13 | 2.25 | 1.13 | 3.75 | 4.5 | 1.75 | 4.06 |
| 254 | 105 | 57 | 29 | 95 | 114 | 45 | 13 | |
| 4058967 | 11.13 | 4.5 | 2.5 | 1.25 | 4.13 | 5 | 2 | 4.56 |
| 283 | 114 | 64 | 32 | 105 | 127 | 51 | 116 | |
| 1085018 | 12.31 | 5 | 2.75 | 1.5 | 4.75 | 5.5 | 2.19 | 4.94 |
| 313 | 127 | 70 | 38 | 121 | 140 | 56 | 126 | |
| 4048218 | 14 | 5.38 | 3.13 | 1.63 | 5.25 | 6 | 2.5 | 6 |
| 356 | 137 | 80 | 41 | 133 | 152 | 64 | 152 |
