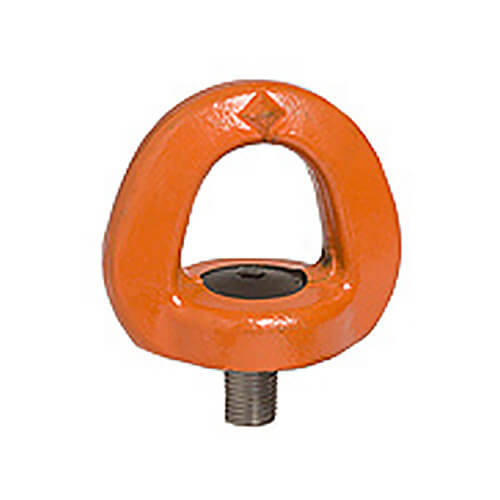

Swivel Eye Bolts
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | THREAD DIAMETER/PITCH | THREAD LENGTH | WORKING LOAD LIMIT (LBS.) | SAFETY FACTOR | WEIGHT/ PIECE (LBS.) |
|---|---|---|---|---|---|
| SEB M8 | 8mm / 1.25 | 14mm | 660 | 5 | 0.52 |
| SEB M10 | 10mm / 1.50 | 17mm | 1,320 | 5 | 0.53 |
| SEB M12 | 12mm / 1.75 | 21mm | 2,200 | 5 | 0.54 |
| SEB M16 | 16mm / 2.00 | 27mm | 3,520 | 5 | 1.75 |
| SEB M20 | 20mm / 2.50 | 30mm | 5,500 | 5 | 1.76 |
| SEB M24 | 24mm / 3.00 | 36mm | 8,800 | 5 | 5.72 |
| SEB M30 | 30mm / 3.50 | 45mm | 13,860 | 5 | 5.94 |
| SEB M36 | 36mm/ 4.00 | 54mm | 22,000 | 5 | 17.6 |
| SEB M42 | 42mm / 4.50 | 63mm | 27,500 | 5 | 17.82 |
| SEB M48 | 48mm / 5.00 | 68mm | 33,000 | 4 | 19.8 |
| Metric threads: M8 ➜ M48 |
| UNC threads: UNC 3/8’’-16 ➜ UNC 1’’ 1/2-6 |
| Safety factor: 5 and 4 |
| Machinery Directive 2006/42/CE |
| Norm EN 1677-1 |
| Individual traceability number |
| Operating temperature: -20°C ➜ + 200°C |
| Swiveling under load (360° rotation) |
| Available in female and stainless steel version |
Your technical and quality advantages
| Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating) | ➜ absolute safety for any kind of lifting situation, no risk of wrong use |
| Automatic orientation in the diraction of pulling | ➜ no need to manually orientate the lifting ring |
| Solid rotation bushing | ➜ no friction between shackle and object to be lifted, easy rotation under load |
| Verification of each thread with calibrated gauge | ➜ no costs related to non-conformity, lifting rings can directly be put in use |
| Clear markings (CE, WLL, tightening torque) | ➜ reduction risk of incorrect use |
| Individual packaging and documents, delivery in sturdy packaging | ➜ quality and easy handling |
| Anti-tribocorrosion grease for life | ➜ easy rotation under load, built-in corrosion protection |
| Anti-corrosion coating (zinc coating) on bolt and base | ➜ limiting risk of corrosion in critical environments, durability of products |
| Centering system | ➜ possibility to increase WLL at 90° |
| ALITRACER | ➜ suivi optimal (contrôle, gestion de stock …) |
Your service advantages
| Short delivery times for standard products and specials guaranteed | ➜ no production breakdowns, operational gains, stock reduction |
| No minimum order quantity | ➜ stock reduction, quick fixes |
| Multilingual sales team | ➜ ease of communication, professional support |
| Fast on custom-made solution (case study and testing) | ➜ solution for special lifting applications |
| Experience of over 40 years | ➜ pledge of seriousness and professionalixs |
| Free annual inspection at our factory | ➜ maintaining high safet level as annual check is conducted by the manufacturer |
| ISO and UNC as standard threads, special thread (optional) | ➜ one partner for your needs of swivel lifting rings |
| High quality material and marketing supports | ➜ videos, samples, technical drawings … |
| DIRECTION OF PULL (FROM IN-LINE) | ADJUSTED WORKING LOAD |
|---|---|
| 45 degrees | 30% of rated working load |
| 90 degrees | 25% of rated working load |
Warning: The full ratings of machinery eye bolts can only be achieved by pulling directly in-line with the threads. For angled lifts, swivel hoist rings are recommended.
