Jaw-Jaw Compactor Load Binder
- Straight, heavy duty barrel

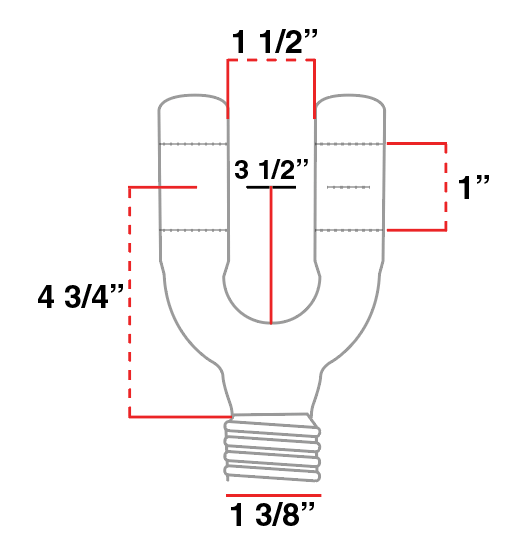

- Jaw-Jaw end fittings
- Entire assembly is powder coated
- All load bearing fittings are forged
- Quenched and tempered
- Two piece handle
- Designed for Solid Waste and Recycling Industries
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | TAKE-UP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | JAW THROAT OPENING | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT/ PIECE (LBS.) |
|---|---|---|---|---|---|---|---|---|---|
| CD12JJ | 10″ | 12″ | 24″ | 1 3/8″ | 1 1/2″ | 21″ – 31″ | 28,000 | 56,000 | 30 |
| CD16JJ | 14″ | 16″ | 24″ | 1 3/8″ | 1 1/2” | 22″ – 36″ | 28,000 | 56,000 | 34 |
| CD24JJ | 22″ | 24″ | 24″ | 1 3/8″ | 1 1/2” | 33″ – 55″ | 28,000 | 56,000 | 45 |
| CD18JJ1750 | 16″ | 18″ | 24″ | 1 3/4″ | 2.375” | 28″ – 44″ | 42,000 | 84,000 | 58 |
| CD24JJ1750 | 22″ | 24″ | 24″ | 1 3/4″ | 2.375” | 34″ – 56″ | 42,000 | 84,000 | 64 |
Scroll right for more information >
