Eye-Jaw Compactor Load Binder
- Straight, heavy duty barrel
- Eye-Jaw end fittings
- Entire assembly is powder coated
- All load bearing fittings are forged
- Quenched and tempered
- Two piece handle
- Designed for Solid Waste and Recycling Industries
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
EYE-JAW WITH GREASE FITTINGS

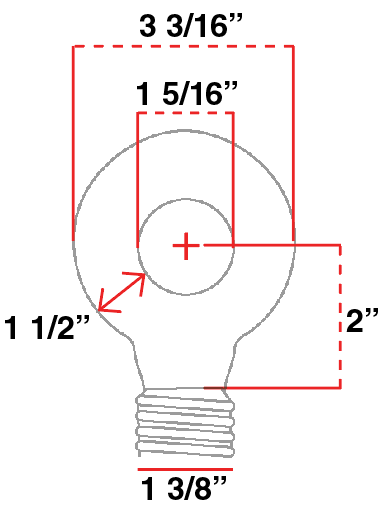

| STOCK NUMBER | TAKE-UP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | EYE INSIDE DIAMETER/THROAT OPENING | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|---|---|---|---|---|
| CD12EJ | 10″ | 12″ | 24″ | 1 3/8″ | 1 5/16″ E / 1 1/2″ J | 20″ – 30″ | 28,000 | 56,000 | 30 |
| CD16EJ | 14″ | 16″ | 24″ | 1 3/8″ | 1 5/16″ E / 1 1/2″ J | 24″ – 38″ | 28,000 | 56,000 | 36 |
| CD24EJ | 22″ | 24″ | 24″ | 1 3/8″ | 1 5/16″ E / 1 1/2″ J | 33″ – 55″ | 28,000 | 56,000 | 44 |
Scroll right for more information >
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
