Heavy Duty Stainless Steel Thimbles
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

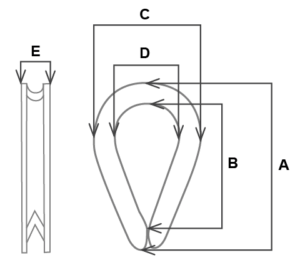

| SIZE | STOCK NUMBER | FINISH | DIMENSIONS | WEIGHT/100 PCS. (LBS.) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| 1/4″ | STH250HD | SS Type 316 | 2.19 | 1.62 | 1.50 | 0.88 | 0.28 | 6 |
| 5/16″ | STH312HD | SS Type 316 | 2.50 | 1.88 | 1.81 | 1.06 | 0.34 | 9 |
| 3/8″ | STH375HD | SS Type 316 | 2.88 | 2.12 | 2.12 | 1.12 | 0.41 | 16 |
| 1/2″ | STH500HD | SS Type 316 | 3.62 | 2.75 | 2.75 | 1.50 | 0.59 | 25 |
| 5/8″ | STH625HD | SS Type 316 | 4.25 | 3.25 | 3.12 | 1.75 | 0.66 | 66 |
| 3/4″ | STH750HD | SS Type 316 | 5.00 | 3.75 | 3.81 | 2.00 | 0.78 | 125 |
| 1″ | STH100HD | SS Type 316 | 6.12 | 4.50 | 4.75 | 2.50 | 1.06 | 225 |
Heavy Duty – According to Federal Specification FF-T-276B, Type III.
