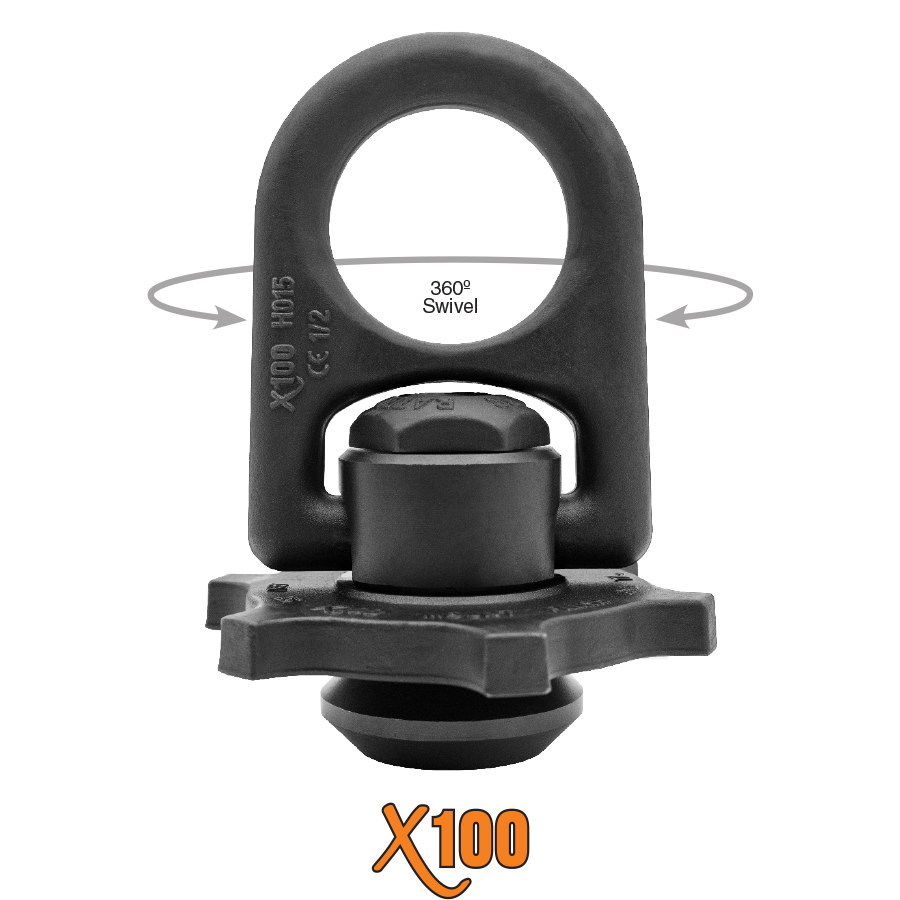

X100® PlateMate™ Swivel Lifting Rings
- Proof-Loaded to 2X the Working Load Limit
- Designed for Applications Where the Swivel Lifting Ring is Frequently Installed and Removed
- Installation Lugs Used to Easily Tighten or Loosen the Unit with a Striking Tool or Pipe
- Markings: X100 Brand, WLL, Conformity, Size
- Traceability on the Swivel Lifting Ring and Welded Insert
- Individually Certified with Unique Serial Number
- Each Lot is Break Tested to Guarantee MBS
- View Warnings & Cautions
- View Welding Instructions
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | DESCRIPTION | WORKING LOAD LIMIT (LBS) | THREAD SIZE | THREAD PROJ. | LIFTING BAIL DIA. | PLATE DIA. | CARTON QTY |
|---|---|---|---|---|---|---|---|
| XPMS1250C-10 | Swivel Lifting Ring | 10,000 | 1-1/4” Coil | 1″ | 1″ | 7″ | 2 pcs |
| XPMS1500C-10 | Swivel Lifting Ring | 10,000 | 1-1/2” Coil | 1-1/2″ | 1″ | 7″ | 2 pcs |
| XPMI1250Cx100 | Welded Insert | 10,000 | 1-1/4” Coil | 1″ | – | 3-1/2″ | 20 pcs |
| XPMI1500Cx1500 | Welded Insert | 10,000 | 1-1/2” Coil | 1-1/2″ | – | 3-1/2″ | 12 pcs |
