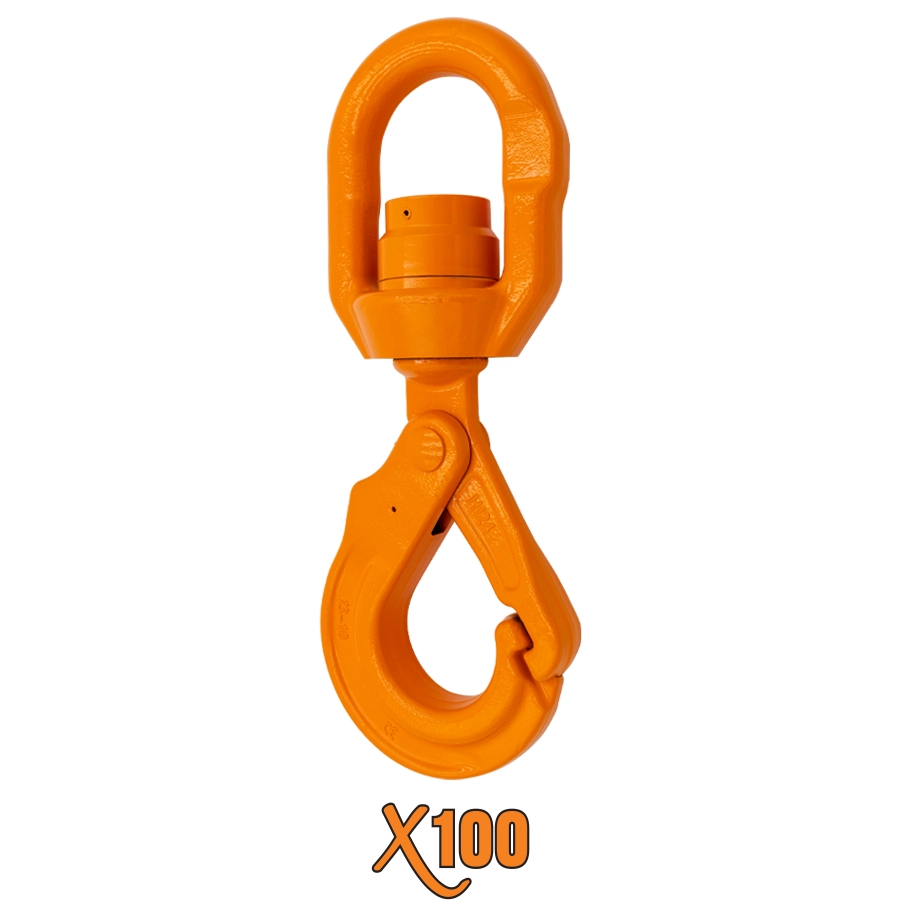

X100® Grade 100 Swivel Self Locking Hooks with Bronze Bushing
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- With Bronze Bushing
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | COMPATIBLE TRIGGER KIT |
|---|---|---|---|---|
| 9/32″ – 5/16″ | XSSL281-312PT | 5,700 | 2.50 | XPTK312 |
| 3/8″ | XSSL375PT | 8,800 | 4.50 | XPTK375 |
| 1/2″ | XSSL500PT | 15,000 | 8.90 | XPTK500 |
| 5/8″ | XSSL625PT | 22,600 | 15.00 | XPTK625 |
| 3/4″ | XSSL750PT | 35,300 | 33.00 | XPTK750 |
| 7/8″ | XSSL875PT | 42,700 | 46.00 | XPTK875 |
| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312PT | 1.42” | 1.04” | 0.51” | 1.50” | 0.94” | 3.70” | 8.80” |
| XSSL375PT | 1.65” | 1.38” | 0.63” | 1.88” | 1.23” | 4.50” | 10.45” |
| XSSL500PT | 1.89” | 1.89” | 0.73” | 2.11” | 1.59” | 5.52” | 12.99” |
| XSSL625PT | 2.20” | 2.20” | 0.85” | 2.44” | 1.99” | 6.71” | 16.26” |
The X100® Quality Latch System
• Notched tip to help avoid hook damage
• Forged directly into the hook
• Incorporated into all X100 self-locking hooks
