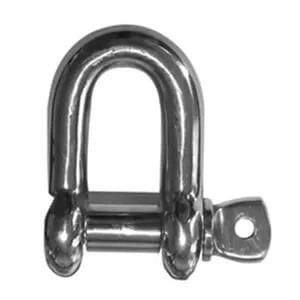

Stainless Steel Screw Pin Chain Shackle
Category
- Aircraft Cable
- Alloy Chain & Fittings
- Beams
- Beam Clamps
- Beam Trolleys
- Blocks
- Cable Pullers
- Cargo Control Products
- Chain
- Chain Connectors
- Chain Falls
- Cordage
- Custom Slings & Tie Downs
- Cutters
- Drum & Canister Lifters
- Eye Nuts & Eye Bolts
- Gold-Tip® Premium Cargo Control
- Hooks
- Hose Restraints
- Latch Kits
- Lever Hoists
- Lifstar Lever Hoists and Chain Falls
- Load Binders
- Logging Supplies
- Master Links
- Oilfield & Gas Field
- Premium Ratchet Load Binders
- Pulleys
- Rings
- Rope
- Shackles
- Slings
- Snaps
- Sockets
- Specialty Chain
- Stainless Steel
- Swage Fittings
- Swaging Tools
- Swivels
- Synthetic Web Products
- Thimbles
- Tie-Downs
- Tire Chains
- Tools
- Towing & Recovery
- Trailer Safety
- Trolleys
- Turnbuckles
- V-Chain Bridles
- Weld-On Components
- Winch Lines
- Wire Rope
- Wire Rope Clips
- Wire Rope Fittings
- X100® Grade 100 Chain & Hardware
Specifications
| STOCK NUMBER | SIZE | PIN DIAMETER | DIMENSIONS | WORKING LOAD LIMIT | WEIGHT/PIECE | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |||||
| SSPCH187 | 3/16″ | 1/4″ | .47″ | .31″ | .25″ | .25″ | .97″ | .62″ | .97″ | 1.59″ | .19″ | 1.43″ | 650 lbs. | 0.10 lbs. |
| SSPCH250 | 1/4″ | 5/16″ | .53″ | .38″ | .31″ | .31″ | 1.15″ | .75″ | 1.07″ | 1.91″ | .22″ | 1.71″ | 880 lbs. | 0.11 lbs. |
| SSPCH312 | 5/16″ | 3/8″ | .66″ | .44″ | .38″ | .38″ | 1.42″ | .92″ | 1.28″ | 2.31″ | .25″ | 2.02″ | 1300 lbs. | 0.18 lbs. |
| SSPCH375 | 3/8″ | 7/16″ | .75″ | .50″ | .44″ | .44″ | 1.63″ | 1.06″ | 1.48″ | 2.67″ | .31″ | 2.37″ | 1500 lbs. | 0.31 lbs. |
| SSPCH500 | 1/2″ | 5/8″ | 1.06 | .75″ | .63″ | .63″ | 2.32″ | 1.50″ | 2.04″ | 3.76″ | .44″ | 3.34″ | 3000 lbs. | 0.68 lbs. |
| SSPCH625 | 5/8″ | 3/4″ | 1.25″ | .88″ | .81″ | .75″ | 2.75″ | 1.81″ | 2.40″ | 4.53″ | .50″ | 3.97″ | 4000 lbs. | 1.26 lbs. |
| SSPCH750 | 3/4″ | 7/8″ | 1.44″ | 1.00″ | .97″ | .88″ | 3.20″ | 2.10″ | 2.86″ | 5.33″ | .50″ | 4.50″ | 6000 lbs. | 2.10 lbs. |
| SSPCH875 | 7/8″ | 1″ | 1.69″ | 1.13″ | 1.00″ | 1.00″ | 3.69″ | 2.38″ | 3.24″ | 5.94″ | .56″ | 5.13″ | 8000 lbs. | 3.30 lbs. |
