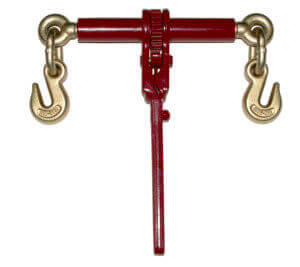

Specifications
- All load-bearing fittings are forged
- Quenched and tempered
- Jaw end fittings are yellow zinc plated
- Handle and barrel are powder coated
- Heavy duty swaged tube body
- Two-piece handle
- Pin comes complete with nut and lock-washer
- Switch is operated by heavy duty spring
- Load binders are DOT compliant
| STOCK NUMBER | CHAIN SIZE | TAKE-UP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT/PER PIECE (LBS.) |
|---|---|---|---|---|---|---|---|---|
| LKD16000JJ | 1/2”-5/8” | 8” | 10” | 15.5 | 1” | 16,000 | 32,000 | 14 |
