• Easy to operate, transport and store
• Trouble-free maintenance
• Heavy-duty all-steel construction
• Weston-style mechanical load brake
• Spring-loaded free wheel mechanism
• Nickel-plated corrosion-resistant load chain
• 3/4, 1, 1-1/2, 2, 3, 6 and 9 Ton
• Improved design
• Compact size
• Lighter weight
• Lower headroom
| CAP. (Tons) |
Product Code | Headroom C (in) |
Std. Lift (ft> |
Pull to Lift Load* (lbs) |
a (in) |
b (in) |
D* (in) |
e (in) |
f (in) |
g (in) |
Load Chain Dia (mm) x Chain Fall Lines | Net Weight (lbs) |
Shipping Weight Approx. (lbs) |
Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 | LB008 | 11.0 | 5 | 54 (36) | 5.7 | 4.7 | 9.6 (14.4) | 3.8 | 1.6 | 0.9 | 5.6 x 1 | 13 | 13 | 0.5 |
| 1 | LB010 | 11.8 | 5 | 72 (46) | 5.7 | 4.7 | 9.6 (14.4) | 3.8 | 1.6 | 1.1 | 5.6 x 1 | 13 | 14 | 0.5 |

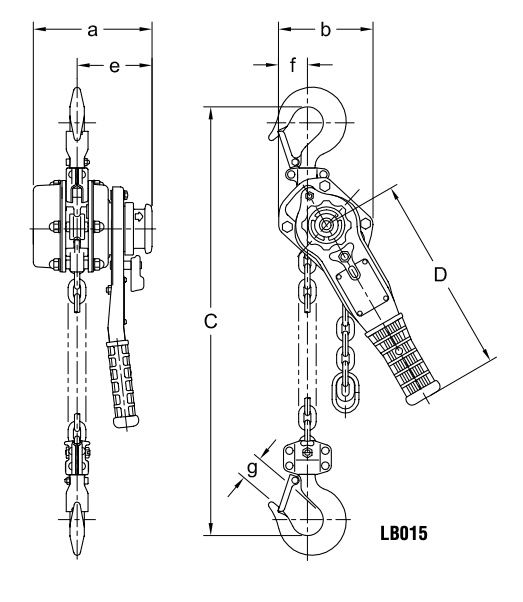

| 1 1/2 | LB015 | 13.2 | 5 | 64 (45) | 6.3 | 5.0 | 10.4 (14.4) | 3.9 | 1.5 | 1.3 | 7.1 x 1 | 18 | 18 | 0.7 |
| 2 | LB020 | 14.8 | 5 | 59 (42) | 6.8 | 5.9 | 10.4 (14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 2 3/4 | LB028 | 14.8 | 5 | 81 (57) | 6.8 | 5.9 | 10.4 (14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |

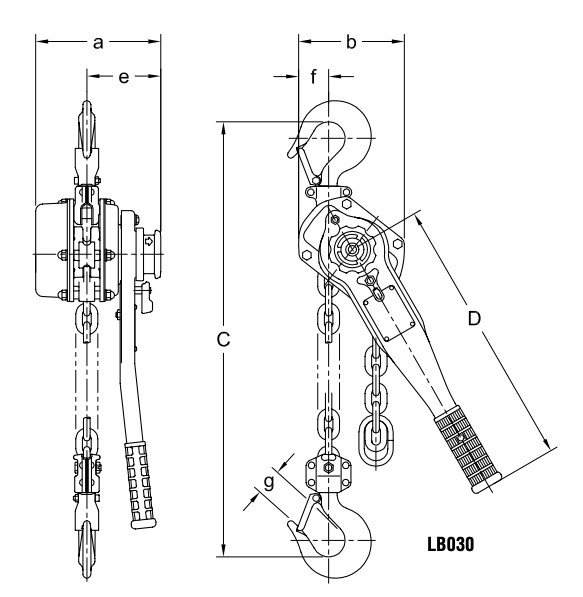

| 3 | LB030 | 15.6 | 5 | 69 | 7.5 | 6.3 | 16.3 (16.9) | 4.4 | 1.8 | 1.5 | 10.0 x 1 | 33 | 35 | 1.5 |

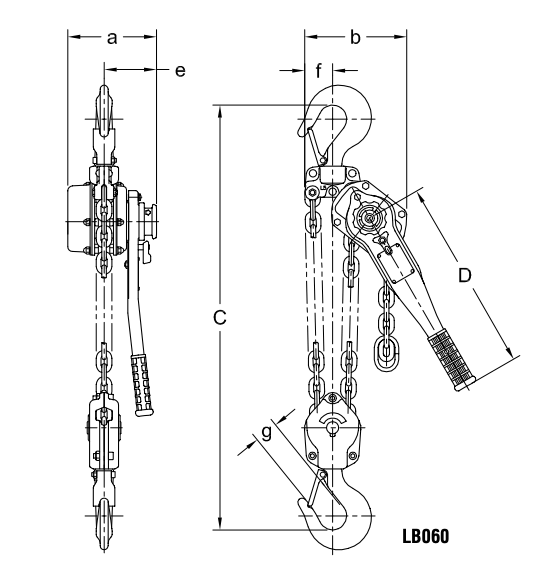

| 6 | LB060 | 21.3 | 5 | 72 | 7.5 | 8.5 | 16.3 (16.9) | 4.4 | 2.3 | 2.0 | 10.0 x 2 | 57 | 60 | 3.2 |

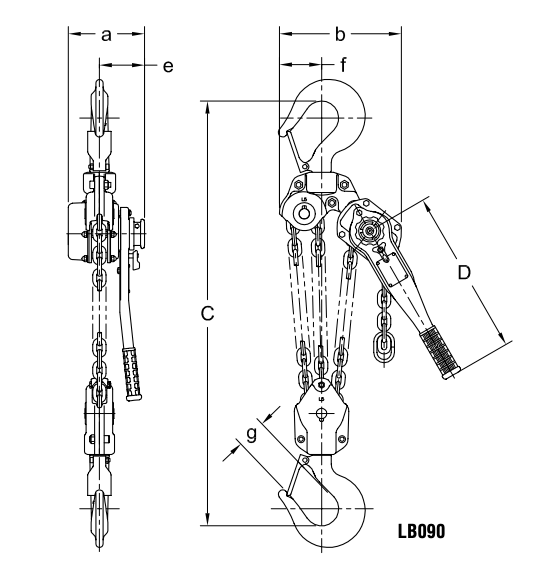

| 9 | LB090 | 26.8 | 5 | 78 | 7.5 | 12.0 | 16.3 (16.9) | 4.4 | 4.1 | 2.9 | 10.0 x 3 | 88 | 93 | 4.7 |
