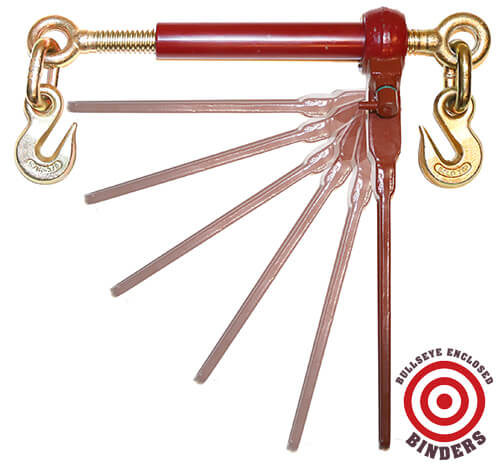

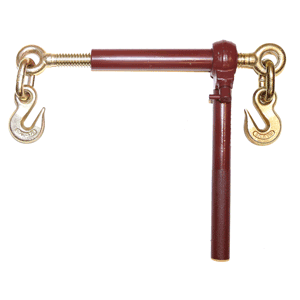

Folding Handle Enclosed Ratchet Binders
- Straight, heavy duty barrel
- Grab-Grab end fittings
- Fittings are yellow zinc plated
- Powder coated handle and barrel
- All load bearing fittings are forged
- Quenched and tempered
- Folding handle
- Enclosed gears
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | TAKE-UP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | END FITTINGS | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT (LBS.) |
|---|---|---|---|---|---|---|---|---|---|
| GTEF375 | 8″ | 10″ | 15″ | 1″ | 3/8″ Grab x 2 | 25″ – 33″ | 8,800 | 17,600 | 13 |
| GTEF500 | 8″ | 10″ | 15″ | 1″ | 1/2″ Grab x 2 | 26″ – 34″ | 12,000 | 24,000 | 17 |
| GTEF625 | 8″ | 10″ | 15″ | 1″ | 5/8″ Grab x 2 | 26″ – 34″ | 18,100 | 36,200 | 22 |
Scroll right for more information >
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
