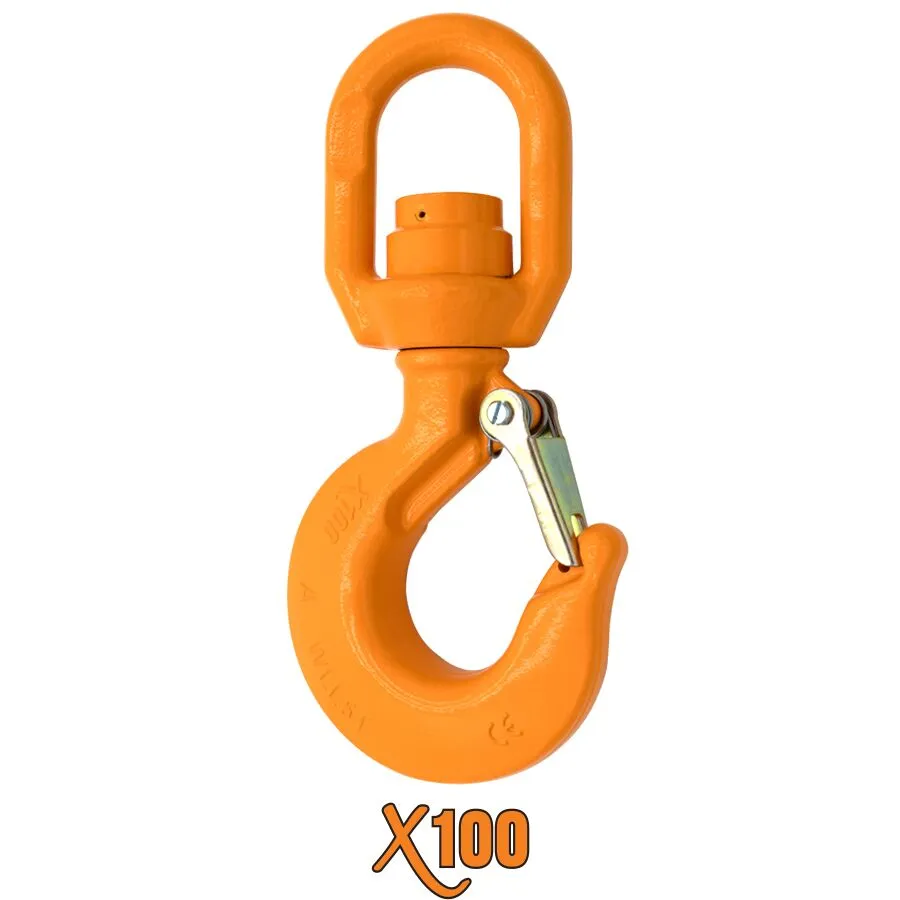

X100® Swivel Eye Hoist Hooks with Ball Bearing
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Swivels Under Load
- Designed & Suitable for Overhead Lifting
- Notched Tip & Latch
- Heavy Duty Latch, Spring & Pin Included
- 100% Forged Alloy Steel
- Quenched And Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection

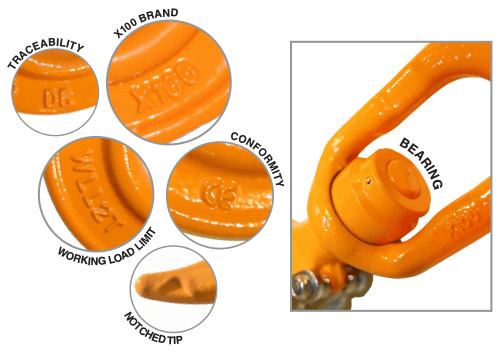

- Raised Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability
- Uses Interchangeable Latch Kits

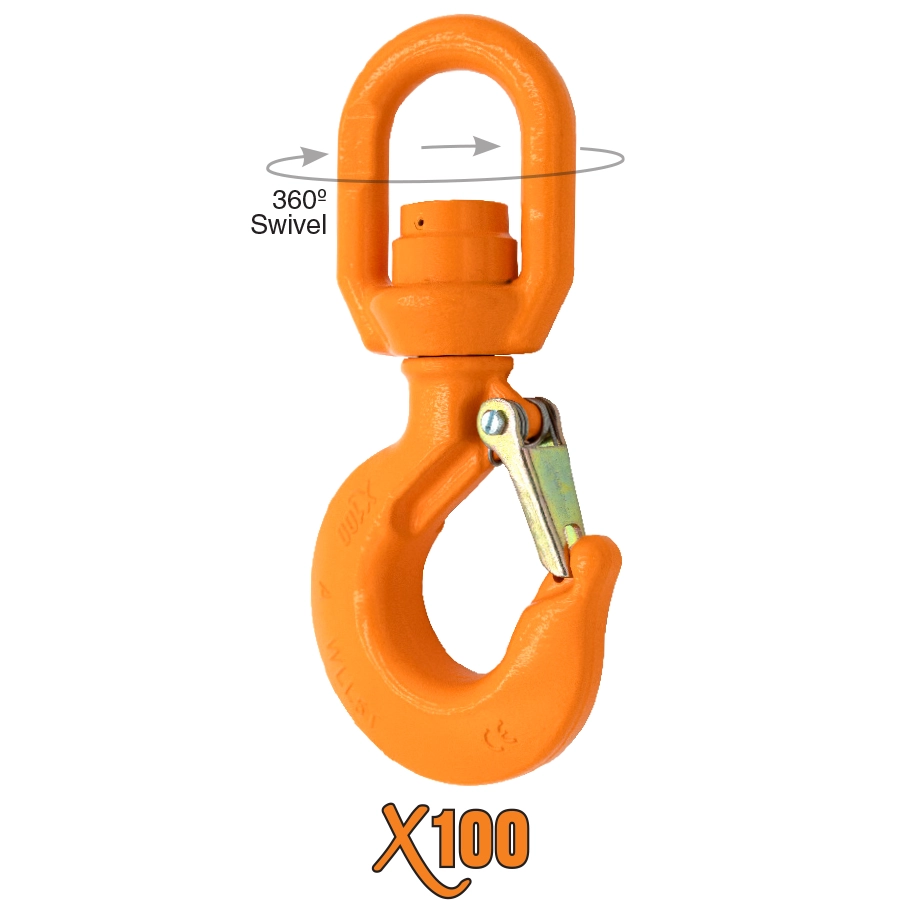

- Designed to Swivel Under Load
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | COMPATIBLE LATCH |
|---|---|---|---|
| XEHH100SBB | 1 | 1.10 | LK6325 |
| XEHH200SBB | 2 | 2.5 | LK6421 |
| XEHH300SBB | 3 | 3.8 | LK6468 |
| XEHH500SBB | 5 | 7.0 | LK6515 |
| XEHH700SBB | 7 | 14.0 | LK6562 |
| XEHH1100SBB | 11 | 22.3 | LK6609 |
| XEHH1500SBB | 15 | 30.0 | LK6657 |
Ultimate load is 5 times the Working Load Limit. Replacement Latch Kits available.

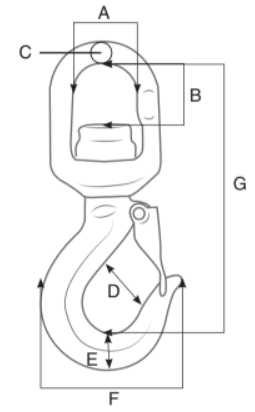

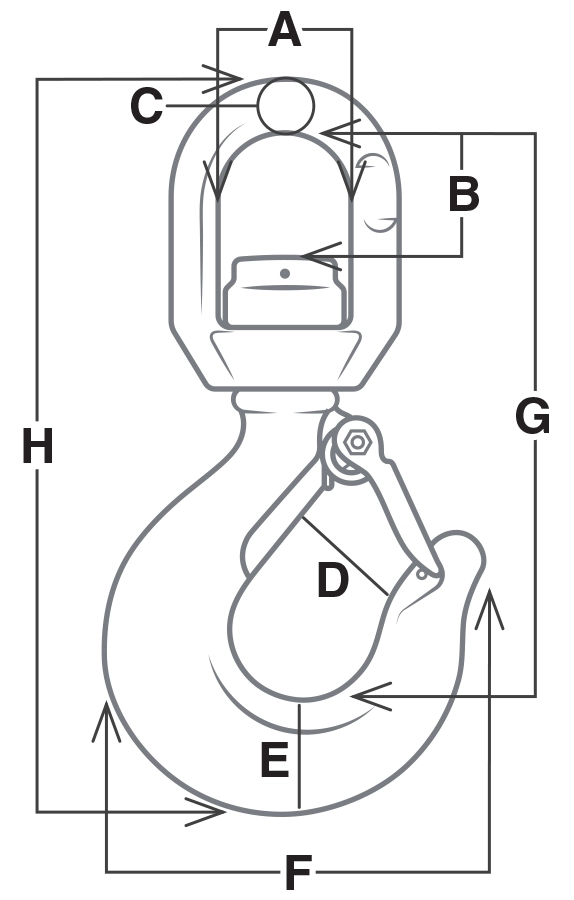

| STOCK NUMBER | DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XEHH100SBB | 1.636 | 1.468 | 0.65 | 0.88 | 0.75 | 2.865 | 5.72 | 7 |
| XEHH200SBB | 2.065 | 1.77 | 0.714 | 0.94 | 1.023 | 3.55 | 6.625 | 8.25 |
| XEHH300SBB | 2.05 | 1.76 | 0.725 | 1.107 | 1.13 | 3.88 | 7 | 8.75 |
| XEHH500SBB | 2.36 | 2.3 | 0.94 | 0.9 | 1.45 | 4.93 | 9.125 | 11.5 |
| XEHH700SBB | 2.78 | 2.48 | 1.07 | 1.65 | 1.87 | 6.25 | 10.25 | 12.75 |
| XEHH1100SBB | 3.33 | 2.813 | 1.175 | 2.077 | 2.269 | 7 | 12.5 | 15.625 |
| XEHH1500SBB | 3.98 | 4.43 | 1.62 | 2.3 | 2.61 | 8 | 15.5 | 19.625 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
