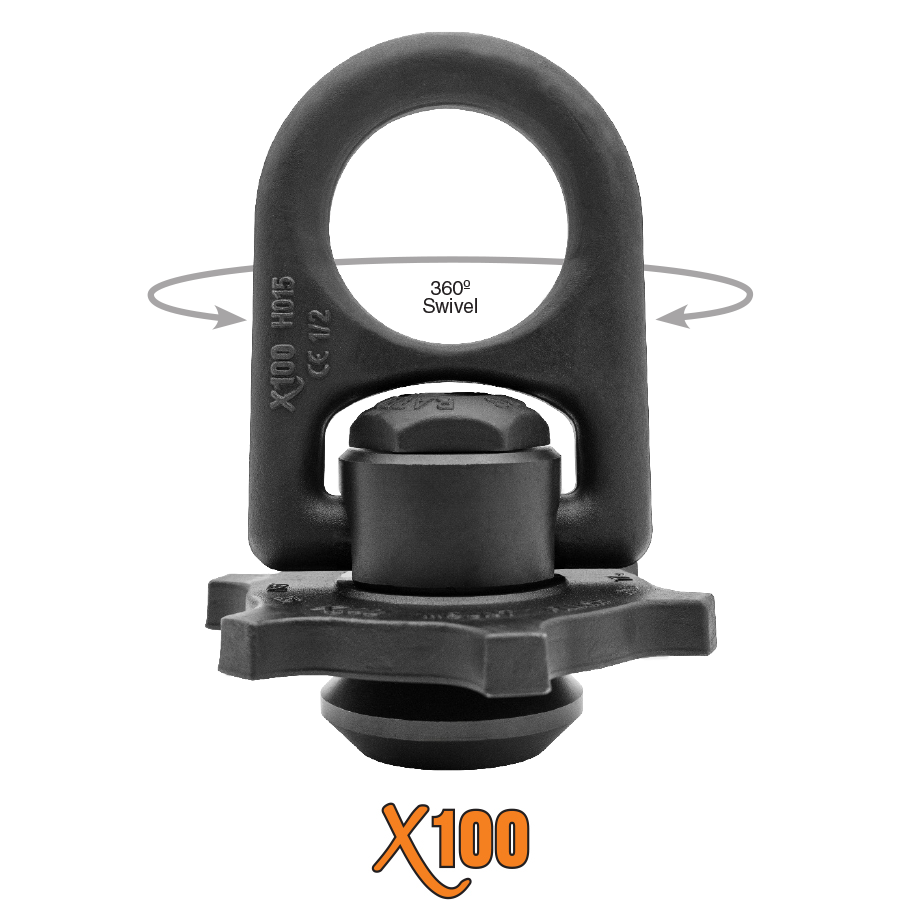

X100® PlateMate™ Swivel Lifting Rings
X100® PlateMate™ Swivel Lifting Rings
- Proof-Loaded to 2X the Working Load Limit
- Designed for Applications Where the Swivel Lifting Ring is Frequently Installed and Removed
- Installation Lugs Used to Easily Tighten or Loosen the Unit with a Striking Tool or Pipe
- Markings: X100 Brand, WLL, Conformity, Size
- Traceability on the Swivel Lifting Ring and Welded Insert
- Individually Certified with Unique Serial Number
- Each Lot is Break Tested to Guarantee MBS
- View Warnings & Cautions
- View Welding Instructions
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | DESCRIPTION | WORKING LOAD LIMIT (LBS) | THREAD SIZE | THREAD PROJ. | LIFTING BAIL DIA. | PLATE DIA. | CARTON QTY |
|---|---|---|---|---|---|---|---|
| XPMS1250C-10 | Swivel Lifting Ring | 10,000 | 1-1/4” Coil | 1″ | 1″ | 7″ | 2 pcs |
| XPMS1500C-10 | Swivel Lifting Ring | 10,000 | 1-1/2” Coil | 1-1/2″ | 1″ | 7″ | 2 pcs |
| XPMI1250Cx100 | Welded Insert | 10,000 | 1-1/4” Coil | 1″ | – | 3-1/2″ | 20 pcs |
| XPMI1500Cx1500 | Welded Insert | 10,000 | 1-1/2” Coil | 1-1/2″ | – | 3-1/2″ | 12 pcs |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
