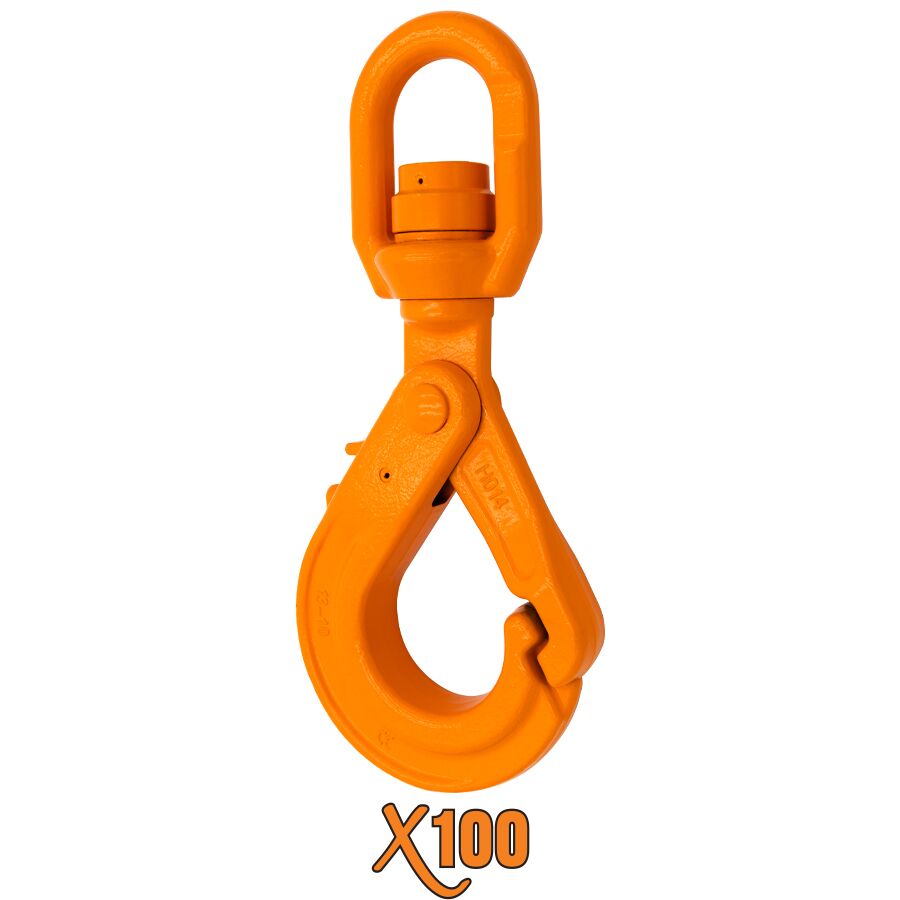

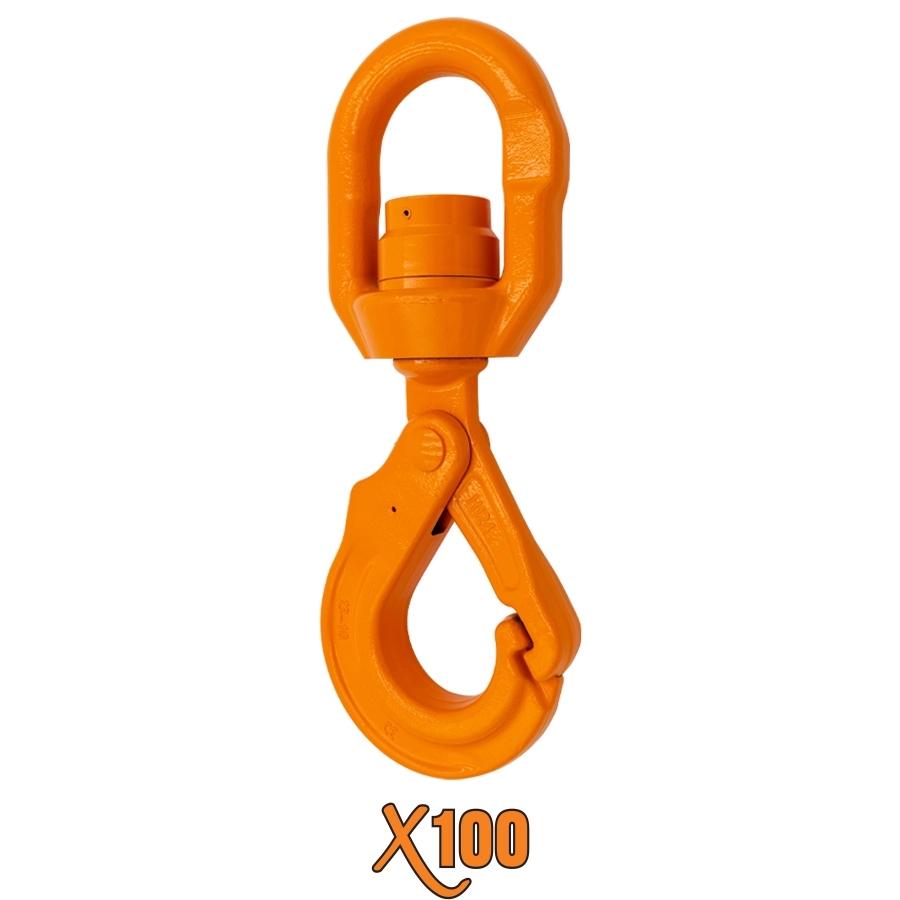

X100® Grade 100 Self Locking Swivel Hooks with Bronze Bushing
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- With Bronze Bushing
- With Protected Trigger System
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
- SPECIFICATIONS
- Dimension Reference
- The X100® Quality Latch System
- The X100® Protected Trigger System
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
| SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) | COMPATIBLE TRIGGER KIT |
|---|---|---|---|---|
| 9/32 – 5/16 | XSSL281-312PT | 5,700 | 2.50 | XPTK281-312 |
| 3/8 | XSSL375PT | 8,800 | 4.50 | XPTK375 |
| 1/2 | XSSL500PT | 15,000 | 8.90 | XPTK500 |
| 5/8 | XSSL625PT | 22,600 | 15.00 | XPTK625 |
| 3/4 | XSSL750 | 35,300 | 23.20 | XTK750 |
| 7/8 | XSSL875 | 42,700 | 46.00 | XTK875 |
All 3/4” and 7/8” hooks do NOT have a protected trigger or a notched tip latch. Safety factor: 4:1.

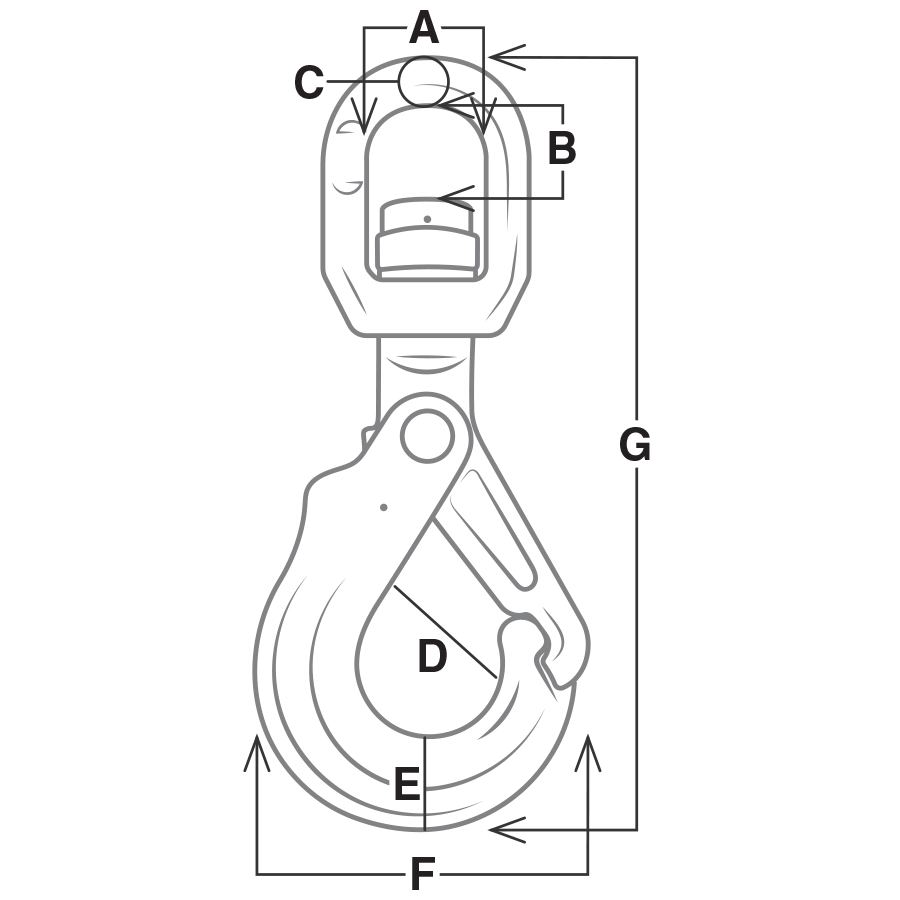

| STOCK NUMBER | DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312PT | 1.42 | 1.04 | 0.51 | 1.50 | 0.94 | 3.70 | 8.80 |
| XSSL375PT | 1.65 | 1.38 | 0.63 | 1.88 | 1.23 | 4.50 | 10.45 |
| XSSL500PT | 1.91 | 1.89 | 0.73 | 2.11 | 1.59 | 5.52 | 12.99 |
| XSSL625PT | 2.40 | 2.20 | 0.85 | 2.44 | 1.99 | 6.71 | 16.26 |
| XSSL750 | 2.76 | 2.44 | 1.06 | 3.35 | 2.47 | 7.25 | 17.375 |
| XSSL875 | 3.22 | 3.75 | 1.408 | 3.064 | 2.72 | 8.00 | 21.50 |
- Notched tip to help avoid hook damage
- Forged directly into the hook
