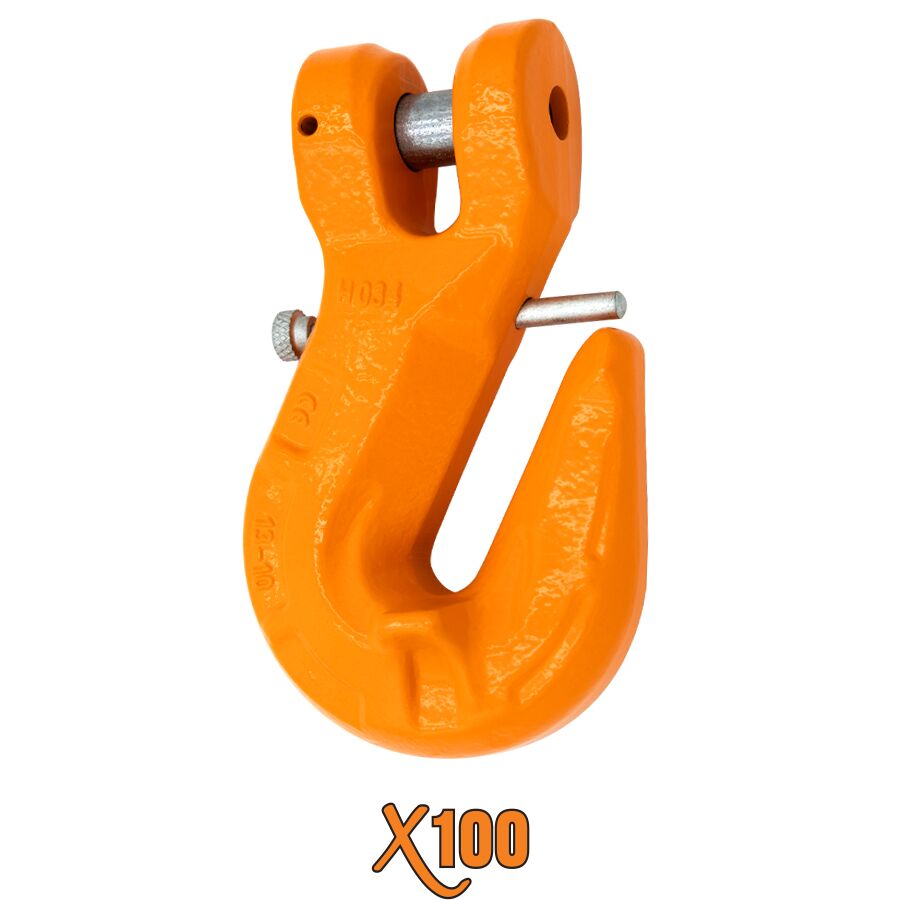

X100® Grade 100 Lockable Clevis Grab Hooks
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) |
---|---|---|---|
5/16 | XCG312WL | 5,700 | 0.997 |
3/8 | XCG375WL | 8,800 | 1.973 |
1/2 | XCG500WL | 15,000 | 3.60 |

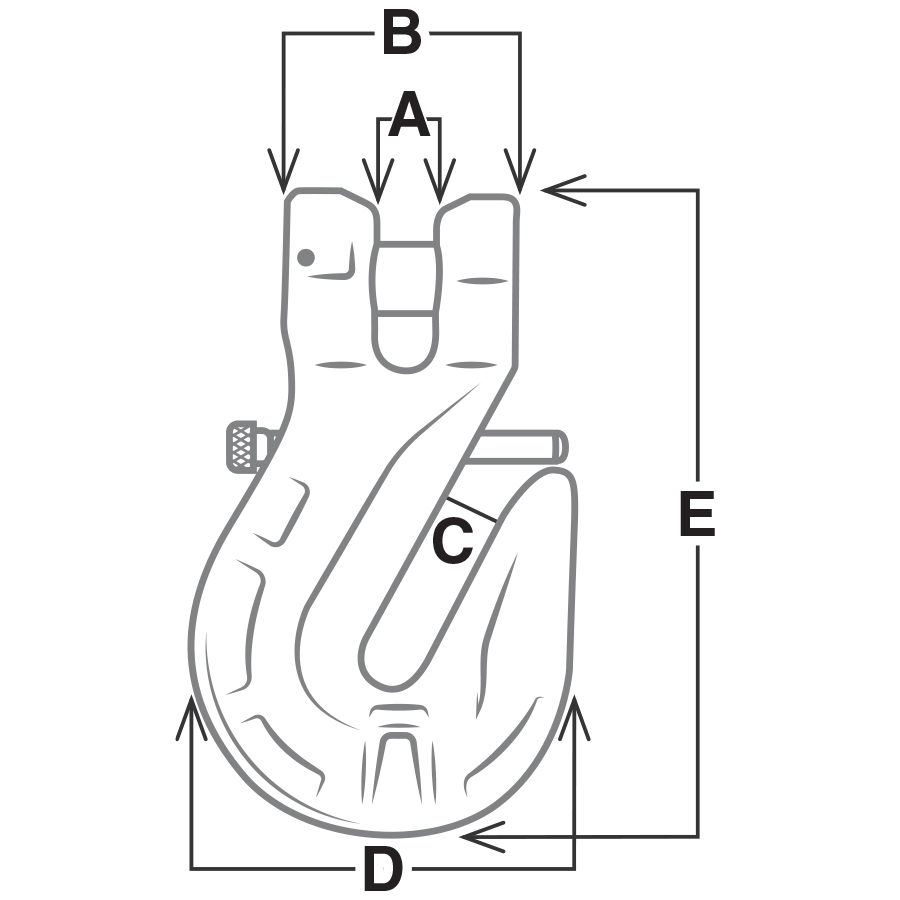

STOCK NUMBER | DIMENSIONS (IN) | ||||
---|---|---|---|---|---|
A | B | C | D | E | |
XCG312WL | 0.375 | 1.468 | 0.375 | 2.211 | 3.941 |
XCG375WL | 0.46 | 1.90 | 0.48 | 2.743 | 4.90 |
XCG500WL | 0.60 | 2.23 | 0.588 | 3.55 | 6.00 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
