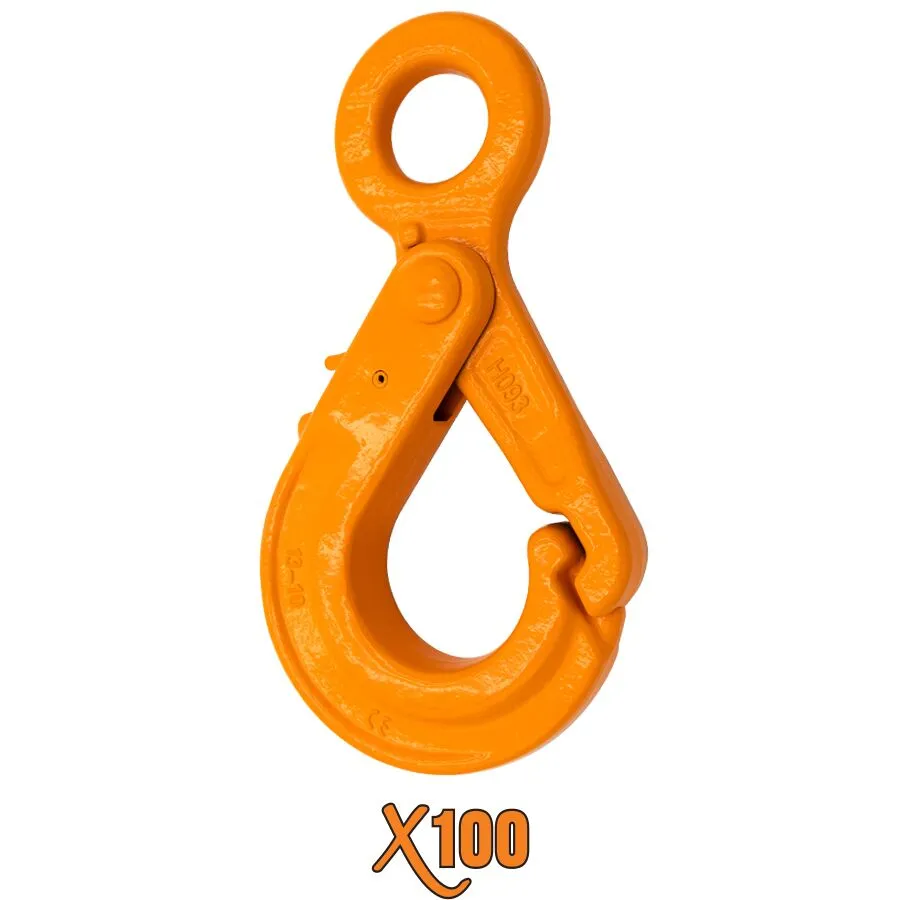

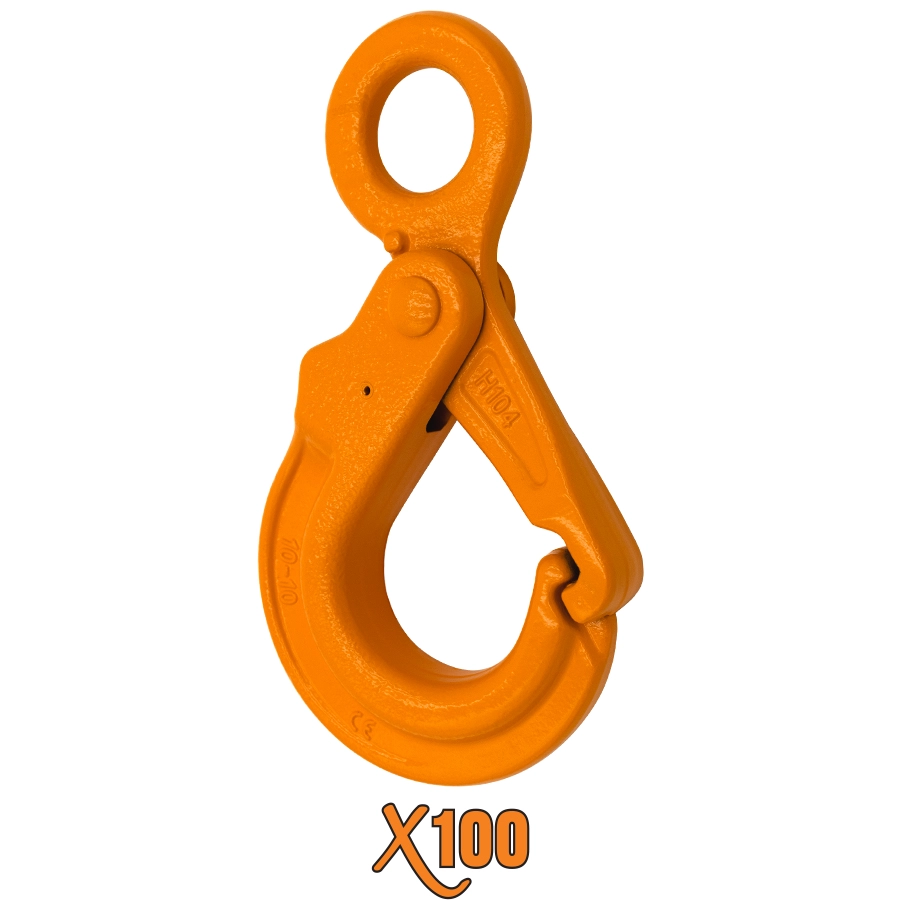

X100® Grade 100 Eye Self Locking Hooks
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
- With Protected Trigger System
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
- SPECIFICATIONS

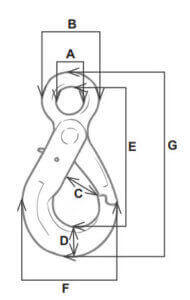

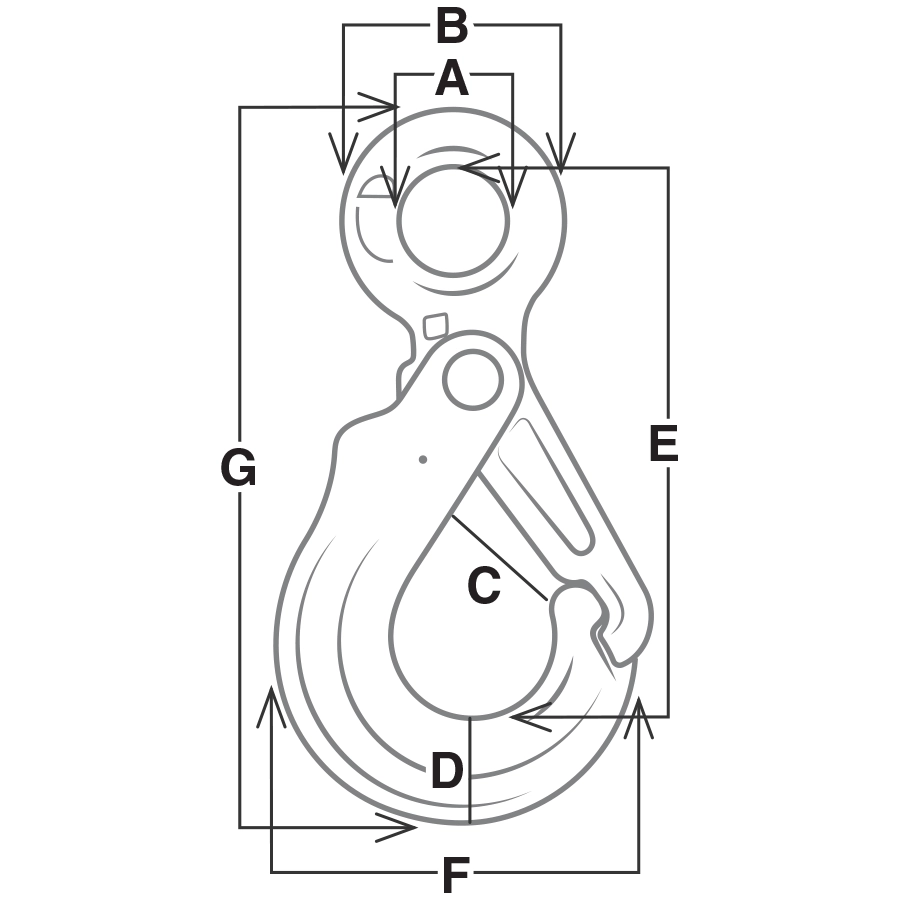

- Dimension Reference
- The X100® Quality Latch System

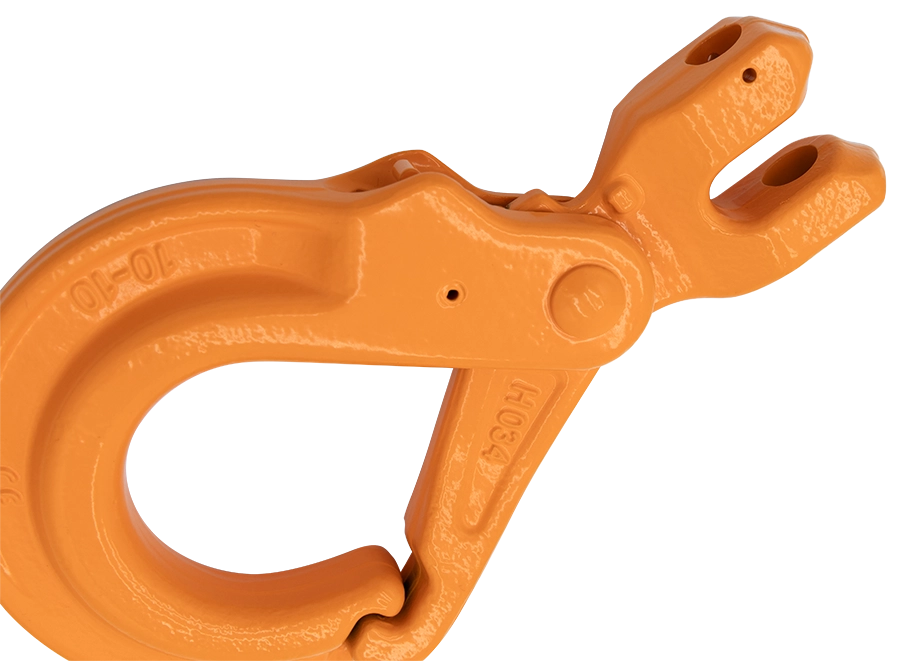

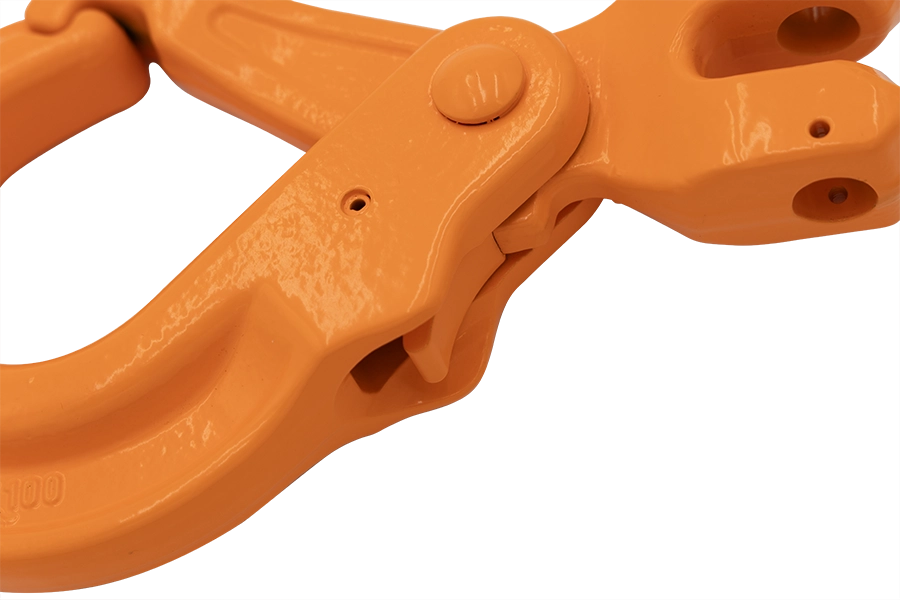

- The X100® Protected Trigger System
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
- Tab
| SIZE (IN) | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS) | COMPATIBLE TRIGGER KIT |
|---|---|---|---|---|
| 9/32 – 5/16 | XESL281-312PT | 5,700 | 2.00 | XPTK312 |
| 3/8 | XESL375PT | 8,800 | 3.40 | XPTK375 |
| 1/2 | XESL500PT | 15,000 | 6.05 | XPTK500 |
| 5/8 | XESL625PT | 22,600 | 12.60 | XPTK625 |
| 3/4 | XESL750PT | 35,300 | 28.00 | XPTK750 |
| 7/8 | XESL875PT | 42,700 | 34.00 | XPTK875 |
| STOCK NUMBER | DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XESL281-312PT | 1.06 | 2.01 | 1.51 | 0.91 | 5.26 | 3.70 | 6.70 |
| XESL375PT | 1.36 | 2.53 | 1.90 | 1.18 | 6.45 | 4.42 | 8.37 |
| XESL500PT | 1.57 | 3.15 | 2.04 | 1.59 | 8.00 | 5.33 | 10.30 |
| XESL625PT | 1.97 | 4.09 | 2.71 | 1.84 | 9.70 | 6.50 | 12.60 |
| XESL750PT | 2.43 | 4.63 | 3.36 | 2.28 | 10.50 | 7.38 | 13.88 |
| XESL875PT | 2.73 | 5.02 | 3.10 | 2.75 | 12.00 | 8.13 | 16.00 |

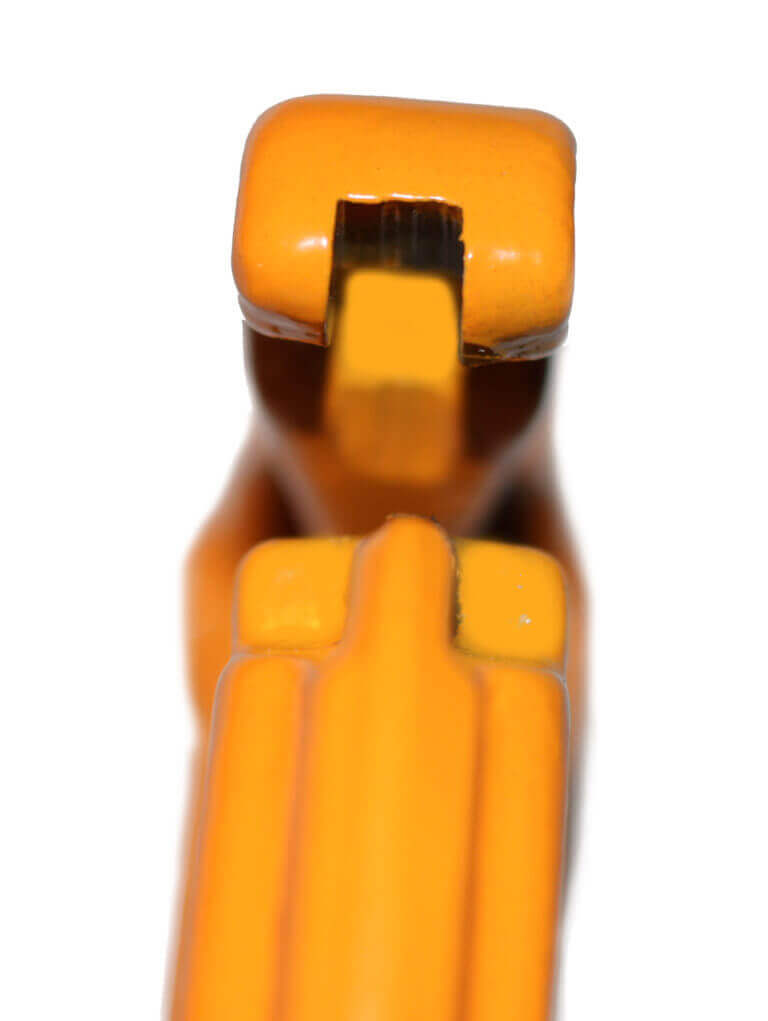

- Notched tip to help avoid hook damage
- Forged directly into the hook
