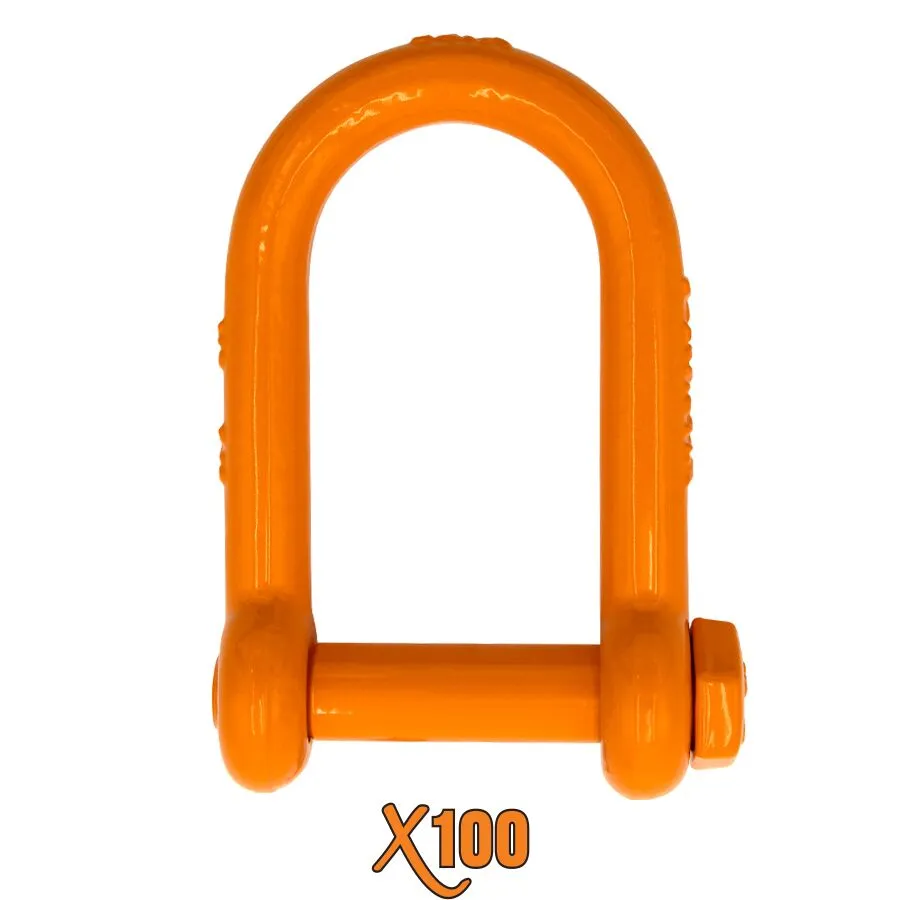

X100® All Alloy Screw Pin Long Reach Shackles
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
-
100% Forged Alloy Steel
-
Designed & Suitable for Overhead Lifting
-
Meets ASME B30.26 Requirements
-
Design Factor of 5:1
-
Markings: X100 Brand, Size, Working Load Limit, Traceability
-
Extended Bow: Designed for Lifting Applications That Require an Extended Reach to Connect to Pick Points
-
Easily Recognizable X100 BLAZE ORANGE Powder Coated Which Provides Protection From Corrosion, and Enables Full Exposure of Identification Markings
-
Hot Dip Galvanized Prior to X100 BLAZE ORANGE Powder Coating Provides Superior Corrosion Resistance
-
Load Must Be Evenly Distributed Over Entire Pin
-
To Achieve Full Working Load Limit, 80% Minimum Pin Coverage is Required
-
NEVER Side Load or Point Load Pins or Bodies
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE (IN) | STOCK NUMBER | PIN DIA (IN) | WORKING LOAD LIMIT (TON) | WEIGHT/ PIECE (LBS) | QTY/BOX |
|---|---|---|---|---|---|
| 5/8 | XLRSP625 | 0.75 | 3.50 | 2 | 20 |
| 3/4 | XLRSP750 | 0.88 | 5.00 | 3.2 | 10 |
| 1 | XLRSP100 | 1.00 | 9.50 | 6.2 | 6 |
| 1-1/4 | XLRSP1250 | 1.38 | 14.00 | 12 | 4 |
| 1-1/2 | XLRSP1500 | 1.50 | 17.00 | 19.2 | 2 |
| 1-3/4 | XLRSP1750 | 2.00 | 25.00 | 30.4 | 1 |
X100 All Alloy Screw Pin Long Reach Shackles are suitable for overhead lifting. Meets ASME B30.26 requirements. Ultimate load is 5X the Working Load Limit.
| STOCK NUMBER | DIMENSIONS (IN) | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XLRSP625 | 0.75 | 0.63 | 4.00 | 2.25 | 3.55 | 1.06 | 0.35 | 1.58 |
| XLRSP750 | 0.88 | 0.75 | 5.00 | 2.75 | 4.25 | 1.25 | 0.39 | 1.81 |
| XLRSP100 | 1.00 | 1.00 | 5.50 | 3.25 | 5.25 | 1.37 | 0.47 | 2.38 |
| XLRSP1250 | 1.38 | 1.25 | 6.25 | 3.88 | 6.37 | 1.94 | 0.59 | 3.06 |
| XLRSP1500 | 1.50 | 1.50 | 7.00 | 4.50 | 7.48 | 2.16 | 0.66 | 3.50 |
| XLRSP1750 | 2.00 | 1.75 | 8.00 | 5.25 | 8.75 | 2.70 | 0.80 | 4.00 |
