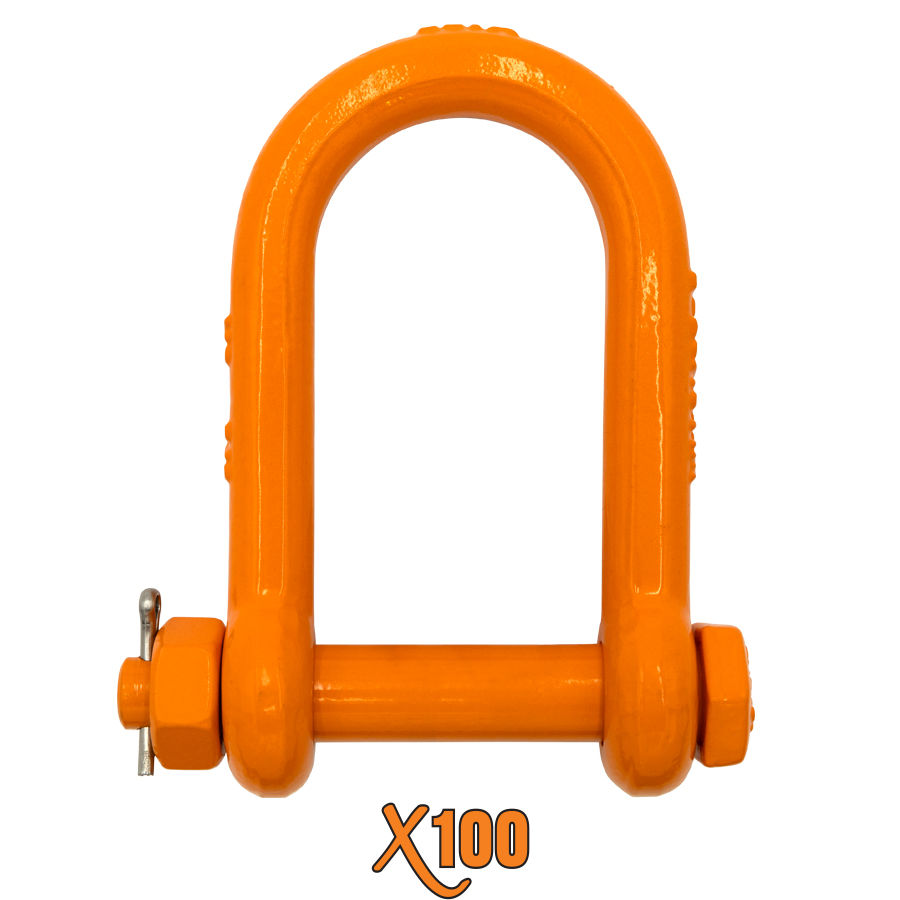

X100® All Alloy Bolt Type Long Reach Shackles
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Meets ASME B30.26 Requirements
- 100% Forged Alloy Steel
- Design Factor of 5:1

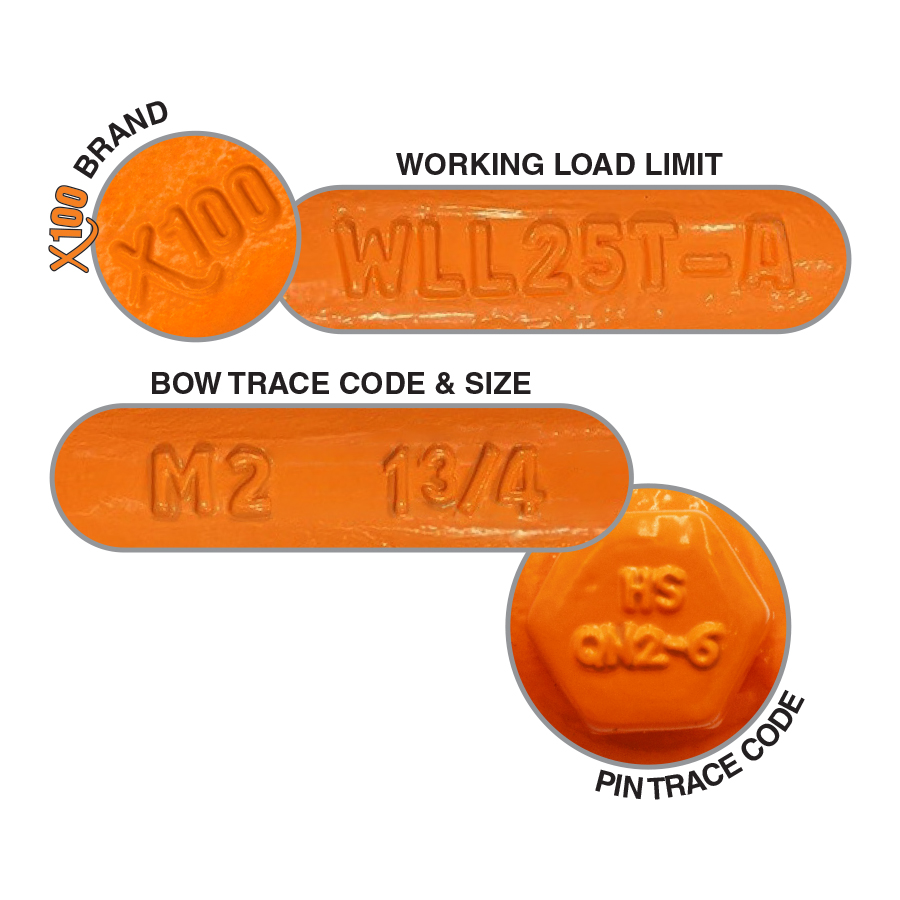

- Markings: X100 Brand, Size, Working Load Limit, Traceability
- Extended Bow: Designed for lifting applications that require an extended reach to connect to pick points
- Easily recognizable BLAZE ORANGE powder coated which provides protection from corrosion, and enables full exposure of identification markings
- Hot dip galvanized prior to BLAZE ORANGE powder coating provides superior corrosion resistance
- Load must be evenly distributed over entire pin
- To achieve full working load limit, 80% minimum pin coverage is required
- NEVER side load or point load pins or bodies
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | PIN DIAMETER | WORKING LOAD LIMIT (TONS) | WEIGHT/ PIECE (LBS.) | QTY/BOX |
|---|---|---|---|---|---|
| 5/8″ | XLRSB625 | 0.75″ | 3.50 | 2.2 | 20 |
| 3/4″ | XLRSB750 | 0.88″ | 5.00 | 3.6 | 10 |
| 1″ | XLRSB100 | 1.00″ | 9.50 | 6.6 | 6 |
| 1-1/4″ | XLRSB1250 | 1.38″ | 14.00 | 12.8 | 4 |
| 1-1/2″ | XLRSB1500 | 1.50″ | 17.00 | 19.8 | 2 |
| 1-3/4″ | XLRSB1750 | 2.00″ | 25.00 | 32.2 | 1 |
X100 All Alloy Bolt Type Long Reach Shackles are suitable for overhead lifting. Meets ASME B30.26 requirements.

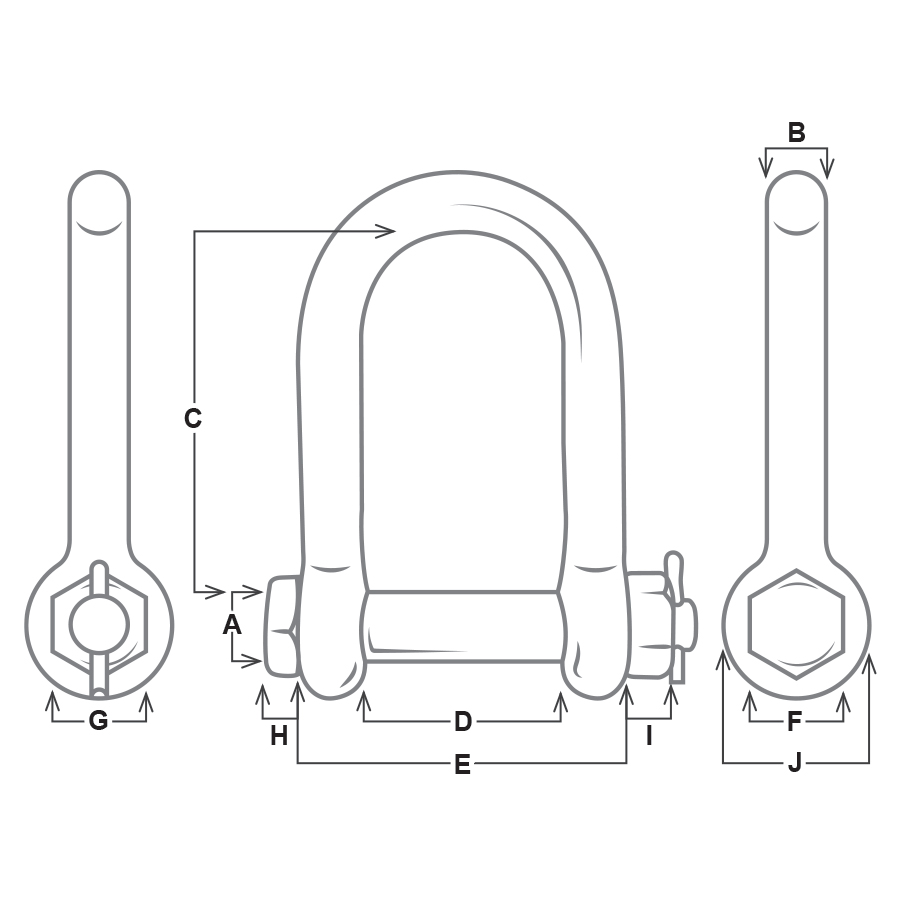

| STOCK NUMBER | DIMENSIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |
| XLRSB625 | 0.75″ | 0.63″ | 4.00″ | 2.25″ | 3.55″ | 1.06″ | 1.02″ | 0.35″ | 0.51″ | 1.58″ |
| XLRSB750 | 0.88″ | 0.75″ | 5.00″ | 2.75″ | 4.25″ | 1.25″ | 1.22″ | 0.39″ | 0.59″ | 1.81″ |
| XLRSB100 | 1.00″ | 1.00″ | 5.50″ | 3.25″ | 5.25″ | 1.37″ | 1.33″ | 0.47″ | 0.65″ | 2.38″ |
| XLRSB1250 | 1.38″ | 1.25″ | 6.25″ | 3.88″ | 6.37″ | 1.94″ | 1.92″ | 0.59″ | 0.73″ | 3.06″ |
| XLRSB1500 | 1.50″ | 1.50″ | 7.00″ | 4.50″ | 7.48″ | 2.16″ | 2.12″ | 0.66″ | 0.82″ | 3.50″ |
| XLRSP1750 | 2.00″ | 1.75″ | 8.00″ | 5.25″ | 8.75″ | 2.70″ | 2.67″ | 0.80″ | 1.05″ | 4.00″ |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
