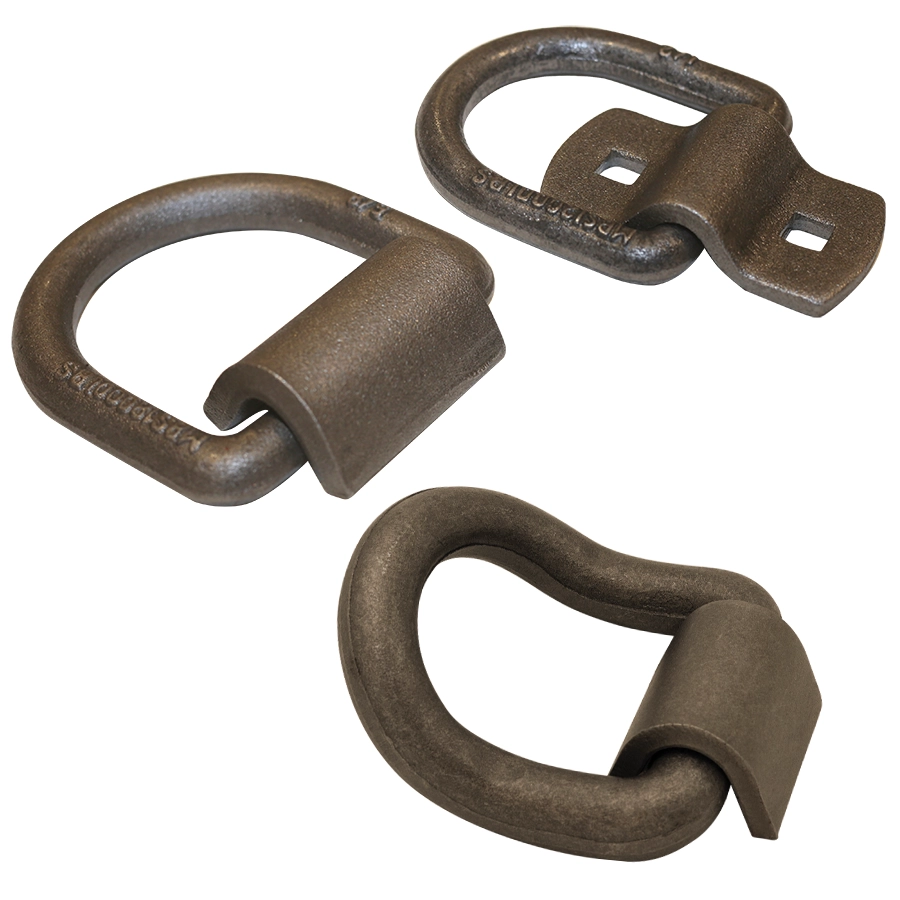

Weld-On D-Rings
- The rings come with weld-on mounting brackets
- Self colored
- Not suitable for overhead lifting
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Not for Overhead Lifting
| STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | BREAKING STRENGTH (LBS.) | MATERIAL | DESCRIPTION | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|---|
| DR-500B | 3,000 | 12,000 | C-1045 | 1/2″ Forged D-Ring w/ Bolt-On Mounting Bracket | 0.5 |
| DR-500 | 3,000 | 12,000 | C-1045 | 1/2″ Forged D-Ring w/ Weld-On Mounting Bracket | 0.5 |
| DR-625 | 4,500 | 18,000 | C-1045 | 5/8″ Forged D-Ring w/ Weld-On Mounting Bracket | 0.7 |
| DR-750 | 6,625 | 26,500 | C-1045 | 3/4″ Forged D-Ring w/ Weld-On Mounting Bracket | 1.0 |
| DR-100 | 11,750 | 47,000 | C-1045 | 1″ Forged D-Ring w/ Weld-On Mounting Bracket | 1.3 |
| DR-100BT | 11,750 | 47,000 | C-1045 | 1″ Bent Forged D-Ring w/ Weld On Mounting Bracket | 1.3 |
Welding is to be performed by a qualified welder using a qualified procedure in accordance with the American Welding Society.
The rings come with weld-on mounting brackets. Brackets are 1-7/8″ wide and 3/8″ thick for DR-625 and DR-750, 2″wide and 3/8″ thick for DR-100.

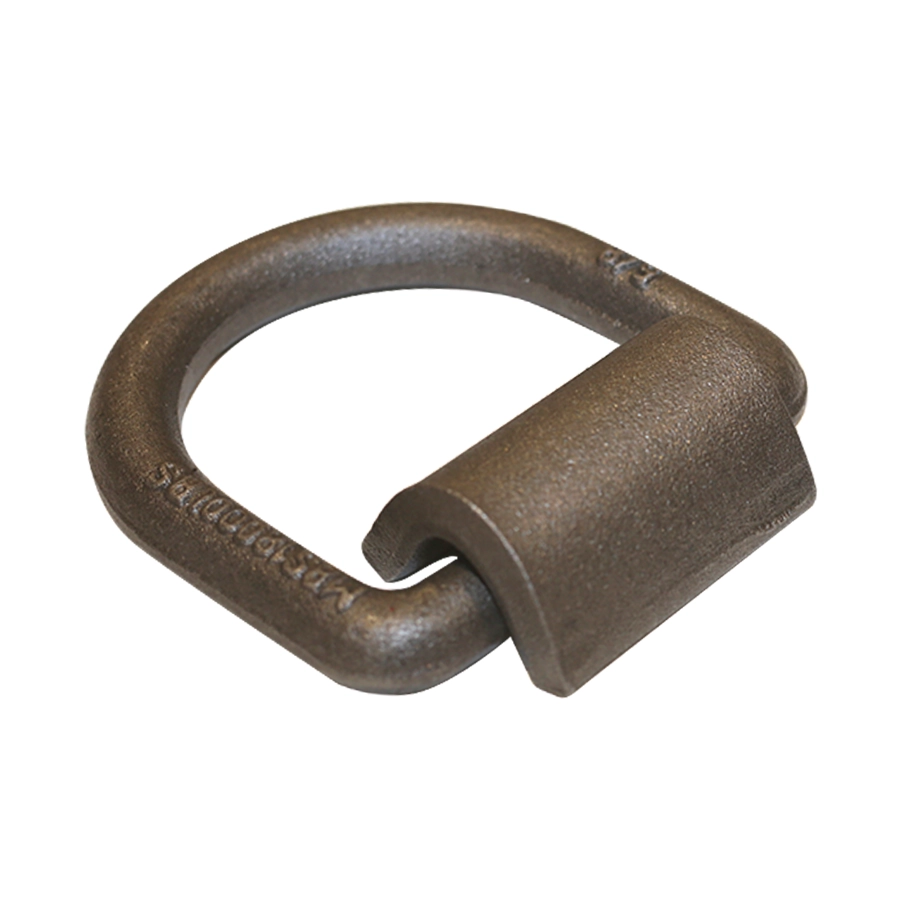

Weld-On

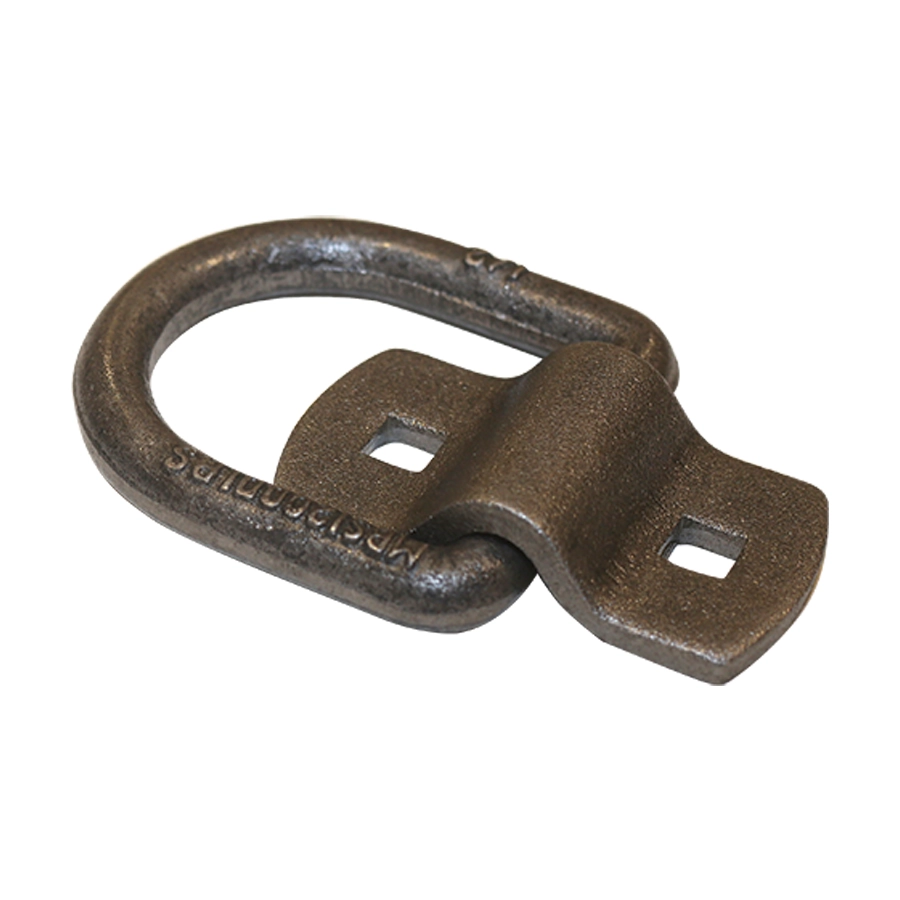

Bolt On

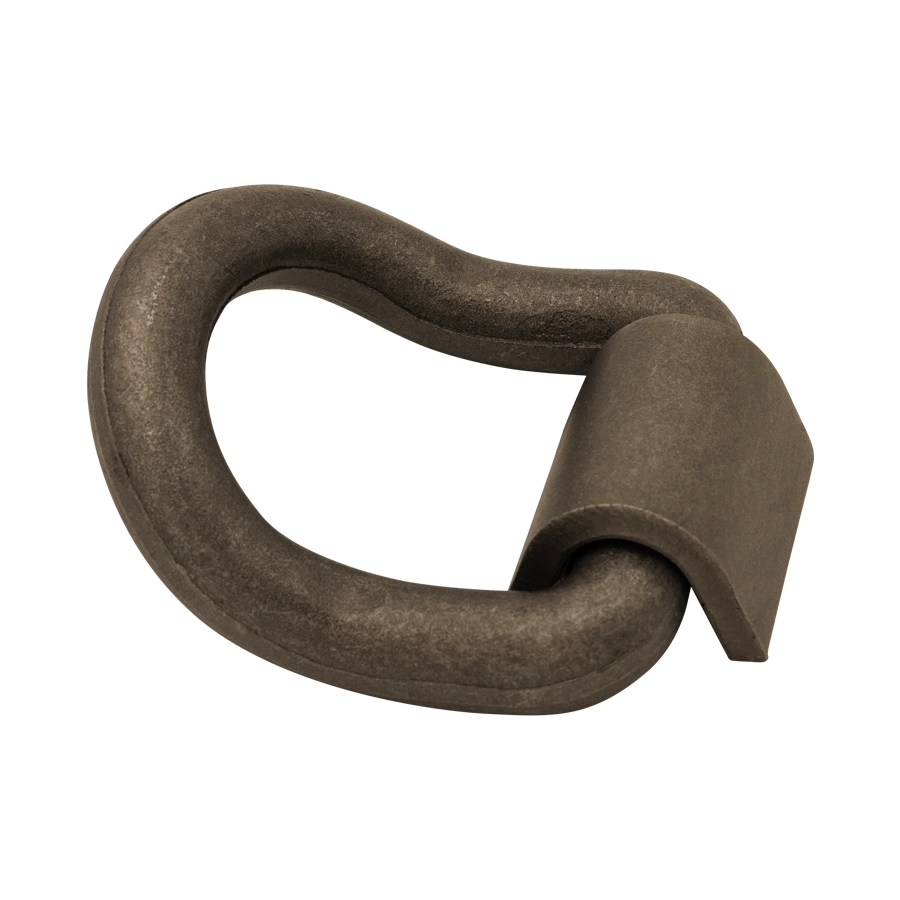

Bent
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
