Specifications
| MODEL | CABLE SIZE | NUMBER OF CAVITIES | TYPE | LENGTH | WEIGHT |
|---|---|---|---|---|---|
| HSC-250 | 1/16″, 3/32″, 1/8″ | 3 | Two Hand | 18″ | lbs. |
| HSC-600 | 1/16″ through 3/16″ | 5 | Two Hand | 26″ | 6.5 lbs. |
| HSC-600BENCH | 1/16″ through 3/16″ | 5 | Bench Mounted | 22.5″ | 6.6 lbs. |
| SWAGE250-312 | 1/4″, 5/32″, 5/16″ | 3 | Two Hand | 30″ | 10 lbs. |
| SWAGE375 | 3/8″ | 1 | Two Hand | 36″ | 13.5 lbs. |

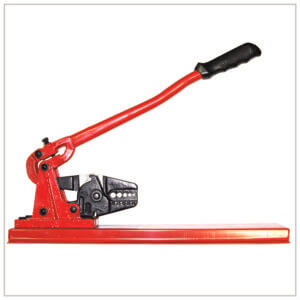

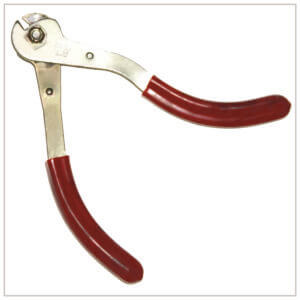

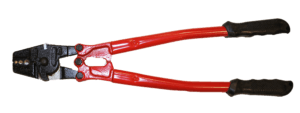

Top Left: HSC-600Bench. Top Right: Swager062. Center Left: Swager250-312. Center Right: Swager375. Bottom Left: HSC600.
Note: Always follow swaging instructions provided with the tools. Use a gauge to check that the sleeves have been fully swaged. Properly swaged aluminum and copper sleeves will develop the rated breaking strength of the cable.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
