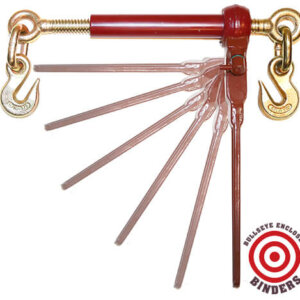

Standard Enclosed Ratchet Binders
- Straight, heavy duty barrel
- Grab-Grab end fittings
- Fittings are yellow zinc plated
- Powder coated handle and barrel
- All load bearing fittings are forged
- Quenched and tempered
- One piece handle
- Enclosed gears
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | TAKE-UP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | END FITTINGS | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT (LBS.) |
|---|---|---|---|---|---|---|---|---|---|
| GTES375 | 8″ | 10″ | 15″ | 1″ | 3/8” Grab x 2 | 25″ – 33″ | 8,800 | 17,600 | 13 |
| GTES500 | 8″ | 10″ | 15″ | 1″ | 1/2” Grab x 2 | 26″ – 34″ | 12,000 | 24,000 | 17 |
| GTES625 | 8″ | 10″ | 15″ | 1″ | 5/8” Grab x 2 | 26″ – 34″ | 16,000 | 32,000 | 22 |
