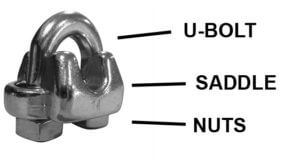

Stainless Steel Wire Rope Clips

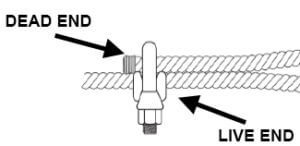

Never Saddle a Dead Horse
When using wire rope clips, (also known as
wire rope clamps) always apply the saddle
of clip to the “live side” or load bearing
side of the cable assembly.

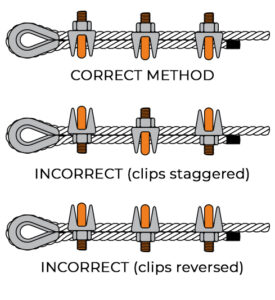

Methods Of Application

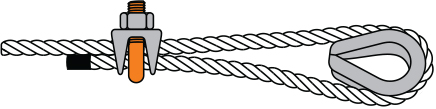

1. Always apply the saddle of the wire rope clip to the live end (non turnback end) of the wire rope or cable. “Never Saddle a Dead Horse.” Turn back the specified amount of rope from the thimble. Apply the first clip one base width from the dead end of the wire rope.
2. Apply the next clip as near the loop as possible. Turn on the nuts but do not tighten.
3. Space additional clips equally between the first two. Take up rope slack. Tighten all nuts evenly on all clips.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Specifications
304 or 316 Stainless Steel
| SIZE | STOCK NUMBER | WEIGHT/100 PCS. | MIN CLIPS REQUIRED |
TURN BACK LENGTH |
|---|---|---|---|---|
| 1/16″ | SWRC062 | 2 lbs. | 2 | 2 1/2″ |
| 1/8″ | SWRC125 | 5 lbs. | 2 | 3 1/4″ |
| 3/16″ | SWRC187 | 11 lbs. | 3 | 3 3/4″ |
| 1/4″ | SWRC250 | 19 lbs. | 3 | 4 3/4″ |
| 5/16″ | SWRC312 | 30 lbs. | 3 | 5 1/4″ |
| 3/8″ | SWRC375 | 46 lbs. | 3 | 6 1/2″ |
| 1/2″ | SWRC500 | 68 lbs. | 3 | 11 1/2″ |
| 5/8″ | SWRC625 | 92 lbs. | 3 | 12″ |
| 3/4″ | SWRC750 | 104 lbs. | 4 | 18″ |
| 7/8″ | SWRC875 | 168 lbs. | 4 | 19″ |
| 1″ | SWRC100 | 186 lbs. | 5 | 26″ |
Proper Use
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
