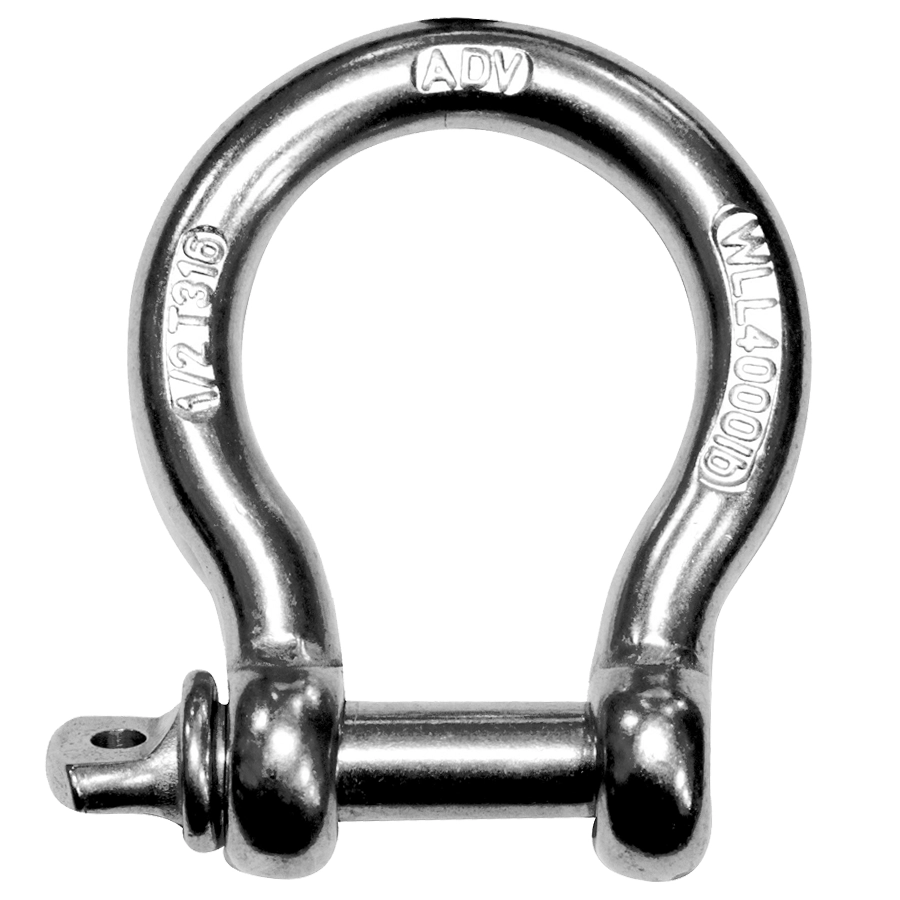

Stainless Steel Type 316 Screw Pin Bow Shackles
- Rated for overhead lifting
- 5:1 minimum breaking strength to working load limit ratio
- Type 316
- Clearly marked with working load limit, size and “ADV”
- Pin is the same size as the shackle
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Type 316
| SIZE | STOCK NUMBER | PIN DIAMETER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| 3/16″ | SSPA187BOW | 3/16″ | 500 | 0.04 |
| 1/4″ | SSPA250BOW | 1/4″ | 750 | 0.06 |
| 5/16″ | SSPA312BOW | 5/16″ | 1,300 | 0.12 |
| 3/8″ | SSPA375BOW | 3/8″ | 1,750 | 0.25 |
| 1/2″ | SSPA500BOW | 1/2″ | 3,000 | 0.56 |
| 5/8″ | SSPA625BOW | 5/8″ | 4,000 | 1.05 |
| 3/4″ | SSPA750BOW | 3/4″ | 6,000 | 1.68 |
| 7/8″ | SSPA875BOW | 7/8″ | 8,000 | 2.52 |
| 1″ | SSPA100BOW | 1″ | 9,000 | 3.80 |
| 1-1/4″ | SSPA1250BOW | 1-1/4″ | 12,000 | 9.50 |

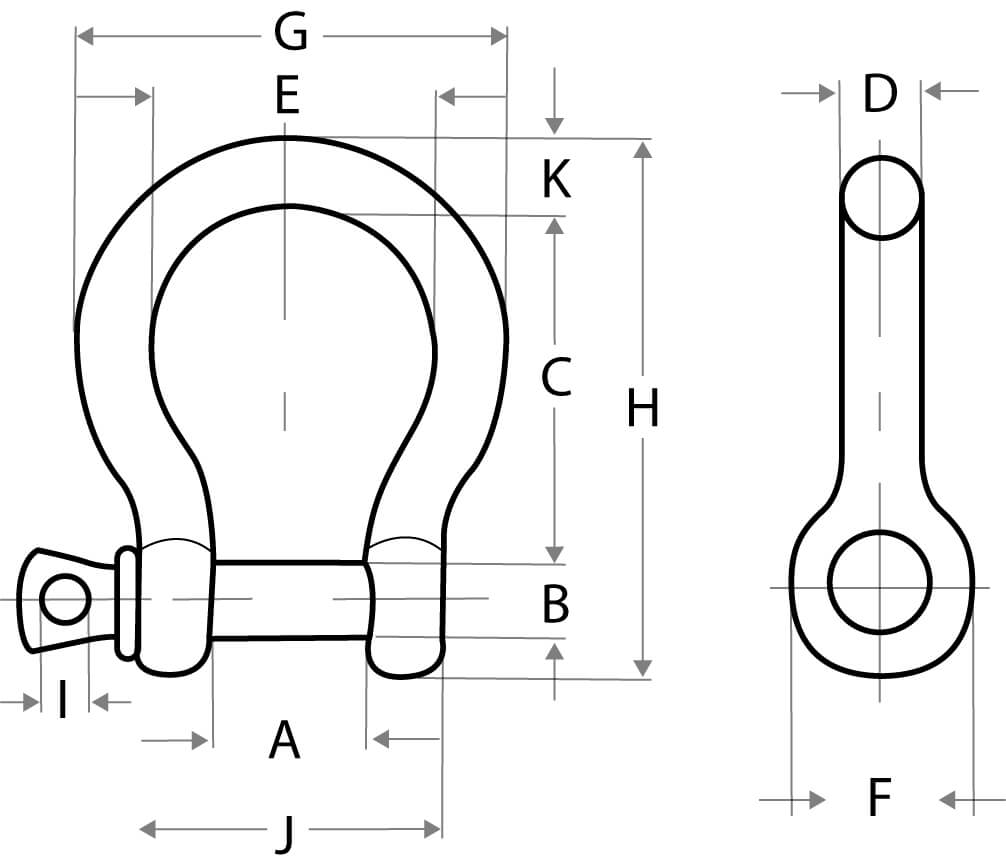

| STOCK NUMBER | PIN DIAMETER | DIMENSIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | ||
| SSPA187BOW | 3/16″ | .38 | .25″ | .88″ | .19″ | .60″ | .56″ | .98″ | 1.47″ | .16″ | 1.14″ | .19″ |
| SSPA250BOW | 1/4″ | .47″ | .31″ | 1.13″ | .25″ | .78″ | .61″ | 1.28″ | 1.84″ | .19″ | 1.43″ | .25″ |
| SSPA312BOW | 5/16″ | .53″ | .38″ | 1.22″ | .31″ | .84″ | .75″ | 1.47″ | 2.09″ | .22″ | 1.71″ | .31″ |
| SSPA375BOW | 3/8″ | .66″ | .44″ | 1.44″ | .38″ | 1.03″ | .91″ | 1.78″ | 2.49″ | .25″ | 2.02″ | .38″ |
| SSPA500BOW | 1/2″ | .81″ | .63″ | 1.88″ | .50″ | 1.31″ | 1.19″ | 2.31″ | 3.28″ | .38″ | 2.69″ | .50″ |
| SSPA625BOW | 5/8″ | 1.06″ | .75″ | 2.38″ | .63″ | 1.69″ | 1.50″ | 2.94″ | 4.19″ | .44″ | 3.34″ | .69″ |
| SSPA750BOW | 3/4″ | 1.25″ | .88″ | 2.81″ | .75″ | 2.00″ | 1.81″ | 3.50″ | 4.97″ | .50″ | 3.97″ | .81″ |
| SSPA875BOW | 7/8″ | 1.44″ | 1.00″ | 3.31″ | .88″ | 2.28″ | 2.09″ | 4.03″ | 5.83″ | .50″ | 4.50″ | .97″ |
| SSPA100BOW | 1″ | 1.69″ | 1.13″ | 3.75″ | 1.00″ | 2.69″ | 2.38″ | 4.69″ | 6.56″ | .56″ | 5.13″ | 1.06″ |
| SSPA1250BOW | 1-1/4″ | – | – | – | – | – | – | – | – | – | – | – |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
