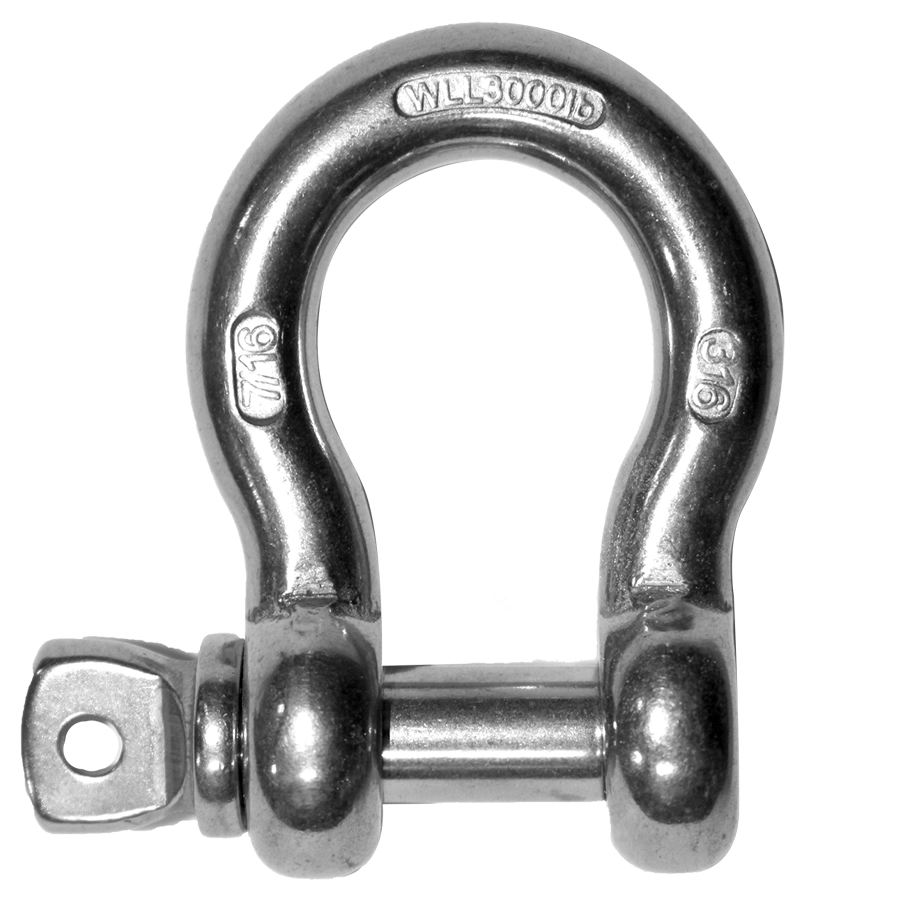

Stainless Steel Type 316 Screw Pin Anchor Shackles
- Rated for overhead lifting
- 5:1 minimum breaking strength to working load limit ratio
- Type 316
- Clearly marked with working load limit, size and “ADV”
- Pin is one size larger than the shackle
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Oversized Pin
| SIZE | STOCK NUMBER | PIN DIAMETER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| 3/16″ | SSPA187 | 1/4″ | 650 | 0.11 |
| 1/4″ | SSPA250 | 5/16″ | 1,000 | 0.12 |
| 5/16″ | SSPA312 | 3/8″ | 1,500 | 0.18 |
| 3/8″ | SSPA375 | 7/16″ | 2,000 | 0.31 |
| 7/16″ | SSPA437 | 1/2″ | 3,000 | 0.48 |
| 1/2″ | SSPA500 | 5/8″ | 4,000 | 0.68 |
| 5/8″ | SSPA625 | 3/4″ | 6,000 | 1.26 |
| 3/4″ | SSPA750 | 7/8″ | 8,000 | 2.10 |
| 7/8″ | SSPA875 | 1″ | 12,000 | 3.32 |
| 1″ | SSPA100 | 1-1/8″ | 14,000 | 4.80 |
Shackle Pin is one size larger than the body size.
