Stainless Steel Forged Shoulder Nut Eye Bolts
- UNC Coarse Thread
- Type 316
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

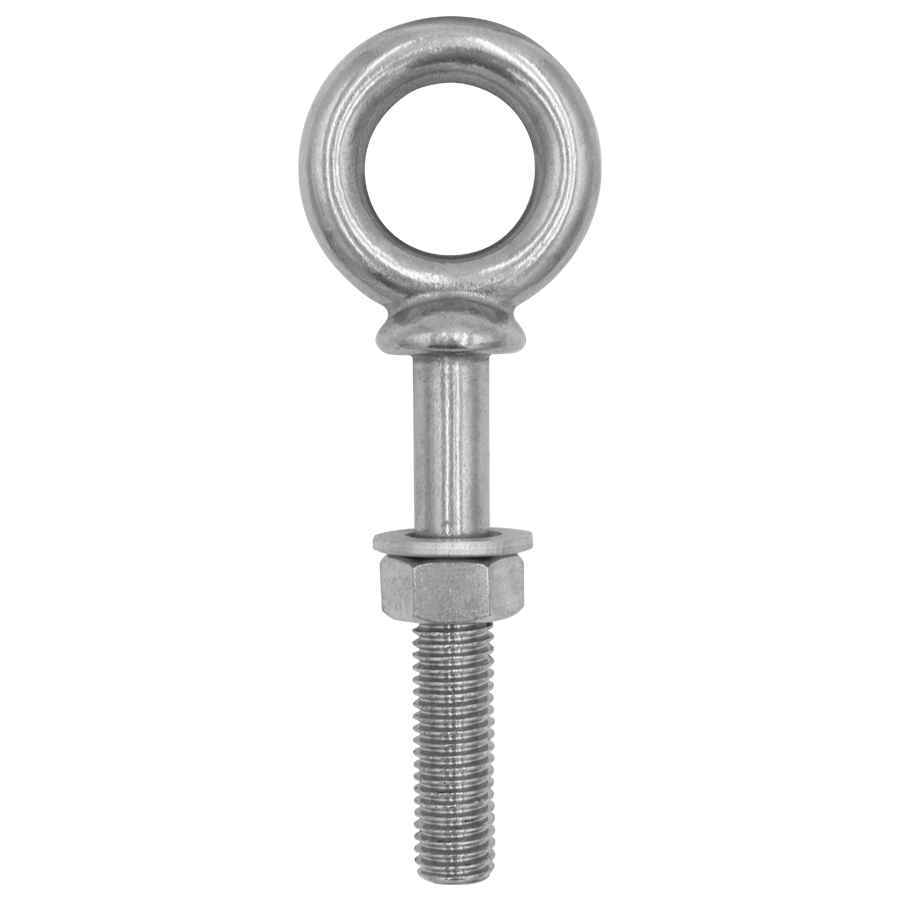

Stainless Steel Eye Bolts with Nut and Washer – Type 316
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| 1/4″ X 2-1/4″ | SEB250X225SF | 400 | 0.05 |
| 1/4″ X 3-1/4″ | SEB250X3250SF | 400 | 0.06 |
| 1/4″ X 4″ | SEB250X400SF | 400 | 0.08 |
| 5/16″ X 2-1/2″ | SEB312X2500SF | 800 | 0.1 |
| 5/16″ X 4″ | SEB312X400SF | 800 | 0.17 |
| 3/8″ X 1-1/4″ | SEB375X1250SF | 1,350 | 0.2 |
| 3/8″ X 4″ | SEB375X400SF | 1,350 | 0.3 |
| 3/8″ X 6″ | SEB375X600SF | 1,350 | 0.4 |
| 1/2″ X 1-1/2″ | SEB500X150SF | 2,100 | 0.235 |
| 1/2″ X 4-1/2″ | SEB500X450SF | 2,100 | 0.5 |
| 1/2″ X 6″ | SEB500X600SF | 2,100 | 0.7 |
| 5/8″ X 4″ | SEB625X400SF | 3,800 | 1 |
Additional sizes available upon request.
| DIRECTION OF PULL (FROM IN-LINE) | ADJUSTED WORKING LOAD |
|---|---|
| 45 degrees | 30% of rated working load |
| 90 degrees | 25% of rated working load |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
