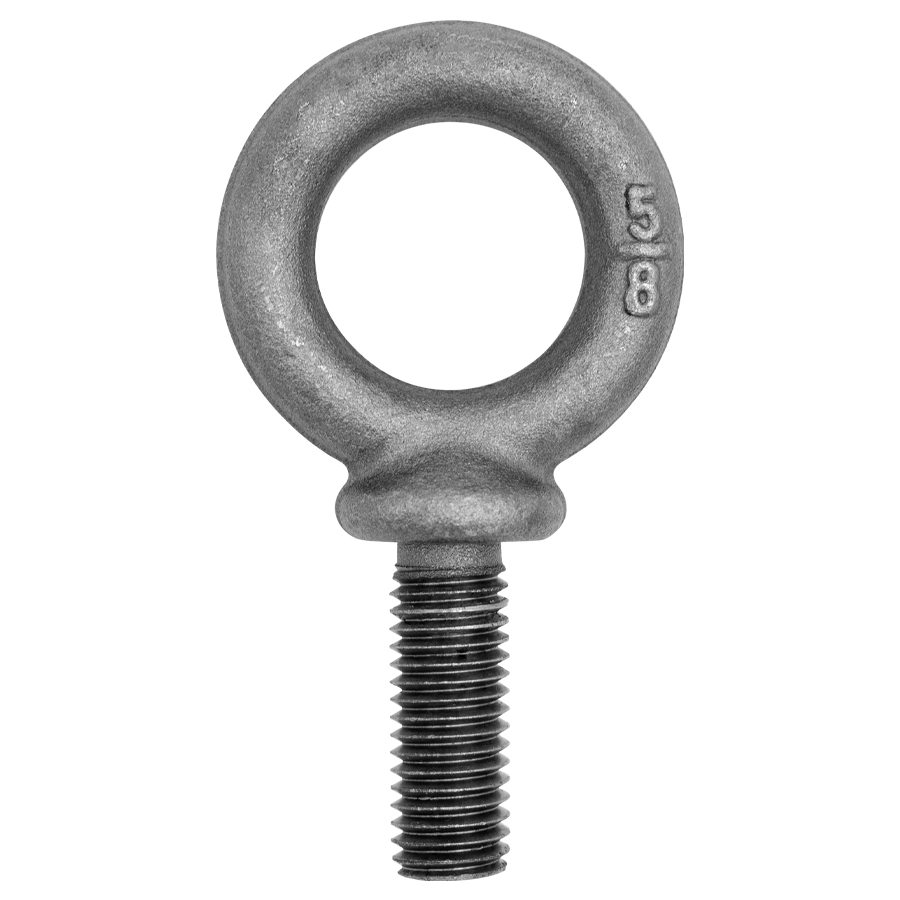

Shoulder Pattern Machinery Eye Bolts
- Forged
- UNC Thread
- Self Colored
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
UNC Thread, Self Colored
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| 1/4″ X 1″ | MEB250X100S | 650 | 0.05 |
| 5/16″ X 1-1/8″ | MEB312X1125S | 1,200 | 0.08 |
| 3/8″ X 3/4″ | MEB375X750S | 1,550 | 0.15 |
| 3/8″ X 1-1/4″ | MEB375X1250S | 1,550 | 0.15 |
| 1/2″ X 1-1/2″ | MEB500X1500S | 2,600 | 0.35 |
| 5/8″ X 1-3/4″ | MEB625X1750S | 5,200 | 0.7 |
| 3/4″ X 2″ | MEB750X200S | 7,200 | 1.00 |
| 7/8″ X 2-1/4″ | MEB875X2250S | 10,600 | 1.53 |
| 1″ X 2-1/2″ | MEB100X2500S | 13,300 | 2.30 |
| 1-1/4″ X 3″ | MEB1250X300S | 21,000 | 3.80 |
| 1-1/2″ X 3-1/2″ | MEB1500X3500S | 24,000 | 7.00 |
Metric available upon request.
| DIRECTION OF PULL (FROM IN-LINE) | ADJUSTED WORKING LOAD |
|---|---|
| 45 degrees | 30% of rated working load |
| 90 degrees | 25% of rated working load |
