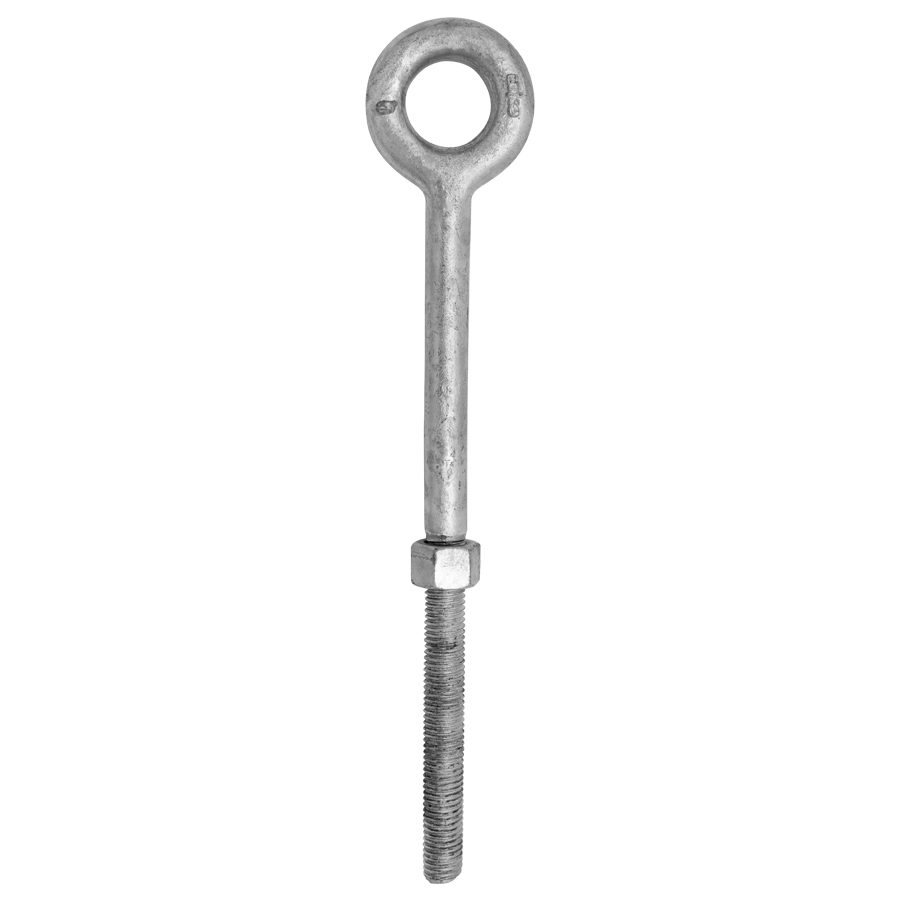

Regular Nut Eye Bolts
- Hot Galvanized
- UNC Thread
- Comes with HDG Nut
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Hot Galvanized, Drop Forged
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| 1/4″ X 2″ | EB250X2P | 650 | .07 |
| 1/4″ X 4″ | EB250X4P | 650 | .12 |
| 5/16″ X 2-1/4″ | EB312X225P | 1,200 | .13 |
| 5/16″ X 4-1/4″ | EB312X425P | 1,200 | .20 |
| 3/8″ X 2-1/2″ | EB375X250P | 1,550 | .24 |
| 3/8″ X 4-1/2″ | EB375X450P | 1,550 | .31 |
| 3/8″ X 6″ | EB375X6P | 1,550 | .35 |
| 3/8″ X 8″ | EB375X8P | 1,550 | .40 |
| 1/2″ X 3-1/4″ | EB500X325P | 2,600 | .55 |
| 1/2″ X 6″ | EB500X6P | 2,600 | .62 |
| 1/2″ X 8″ | EB500X8P | 2,600 | .71 |
| 1/2″ X 10″ | EB500X10P | 2,600 | .88 |
| 1/2″ X 12″ | EB500X12P | 2,600 | 1.05 |
| 1/2″ X 18″ | EB500X18P | 2,600 | 1.25 |
| 5/8″ X 4″ | EB625X4P | 5,200 | 1.01 |
| 5/8″ X 6″ | EB625X6P | 5,200 | 1.24 |
| 5/8″ X 8″ | EB625X8P | 5,200 | 1.31 |
| 5/8″ X 10″ | EB625X10P | 5,200 | 1.60 |
| 5/8″ X 12″ | EB625X12P | 5,200 | 1.86 |
| 5/8″ X 15″ | EB625X15P | 5,200 | 2.10 |
| 5/8″ X 18″ | EB625X18P | 5,200 | 2.40 |
| 5/8″ X 21″ | EB625X21P | 5,200 | 2.65 |
| 5/8″ X 24″ | EB625X24P | 5,200 | 3.25 |
| 3/4″ X 4-1/2″ | EB750X450P | 7,200 | 1.61 |
| 3/4″ X 6″ | EB750X6P | 7,200 | 1.84 |
| 3/4″ X 8″ | EB750X8P | 7,200 | 2.08 |
| 3/4″ X 10″ | EB750X10P | 7,200 | 2.30 |
| 3/4″ X 12″ | EB750X12P | 7,200 | 2.52 |
| 3/4″ X 15″ | EB750X15P | 7,200 | 2.70 |
| 7/8″ X 5″ | EB875X5P | 10,600 | 2.50 |
| 7/8″ X 6″ | EB875X6P | 10,600 | 2.84 |
| 7/8″ X 8″ | EB875X8P | 10,600 | 3.20 |
| 7/8″ X 12″ | EB875X12P | 10,600 | 3.87 |
| 1″X 6″ | EB100X6P | 13,300 | 3.85 |
| 1″ X 9″ | EB100X9P | 13,300 | 4.52 |
| 1″X 12″ | EB100X12P | 13,300 | 5.26 |
| 1″X 18″ | EB100X18P | 13,300 | 6.67 |
| 1″ X 12″ | EB1250X12P | 21,000 | 9.00 |
Ultimate Load is 5 times the Working Load Limit. Working Load Limit applies straight line pull only. Angle pulls can only be used with shoulder eye bolts and the Working Load Limit is reduced: 45º pull – 30% of WL, 90º pull – 25% of WLL.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
