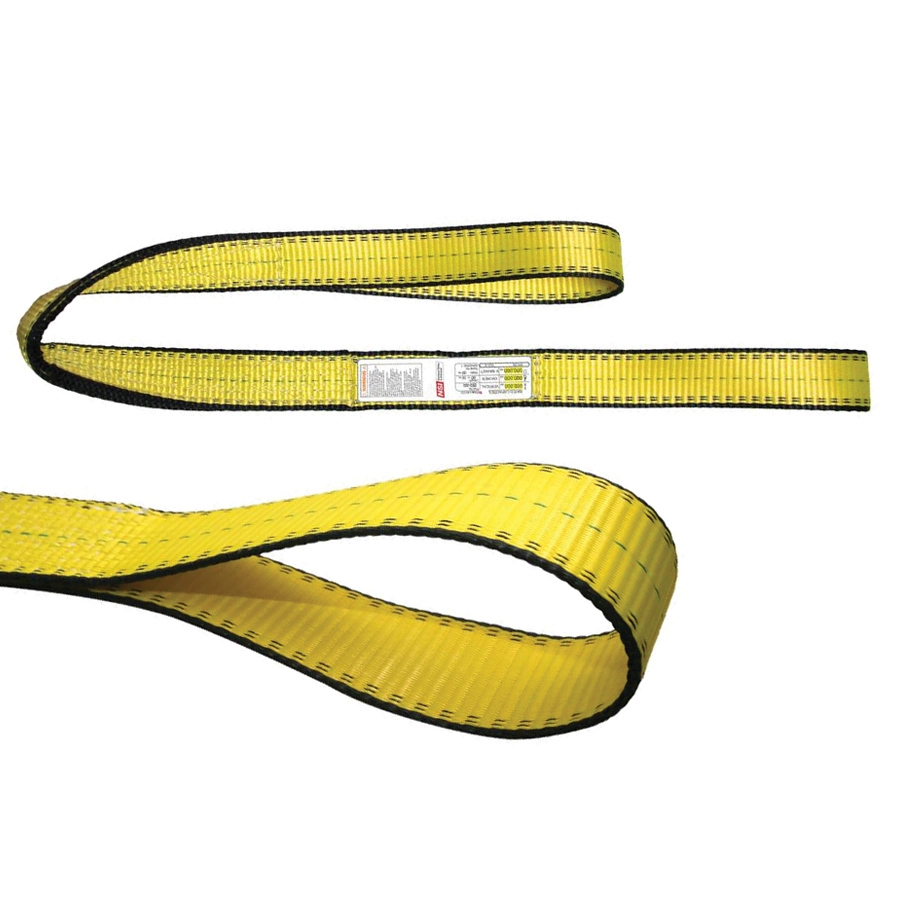

Nylon & Polyester Slings Flat Eye & Eye – Type 3
Web slings made with a flat loop eye on each end with loop eye opening on same place as sling body. This type of sling is sometimes called a flat eye and eye, eye and eye, or double eye.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| PLY | WEB WIDTH | RATED CAPACITY (LBS.) | STOCK NUMBER | |||
|---|---|---|---|---|---|---|
| VERTICAL | CHOKER | BASKET | NYLON | POLYESTER | ||
| ONE PLY | 1″ | 1,600 | 1,280 | 3,200 | EE1-901 | EE1P901 |
| 2″ | 3,200 | 2,560 | 6,400 | EE1-902 | EE1P902 | |
| 3″ | 4,800 | 3,840 | 9,600 | EE1-903 | EE1P903 | |
| 4″ | 6,400 | 5,120 | 12,800 | EE1-904 | EE1P904 | |
| 6″ | 9,600 | 7,680 | 19,200 | EE1-906 | EE1P906 | |
| 8″ | 12,800 | 10,240 | 25,600 | EE1-908 | EE1P908 | |
| 10″ | 16,000 | 12,800 | 32,000 | EE1-910 | EE1P910 | |
| 12″ | 19,200 | 15,360 | 38,400 | EE1-912 | EE1P912 | |
| TWO PLY | 1″ | 3,200 | 2,560 | 6,400 | EE2-901 | EE2P901 |
| 2″ | 6,400 | 5,120 | 12,800 | EE2-902 | EE2P902 | |
| 3″ | 9,600 | 7,680 | 19,200 | EE2-903 | EE2P903 | |
| 4″ | 12,800 | 10,240 | 25,600 | EE2-904 | EE2P904 | |
| 6″ | 16,320 | 13,056 | 32,640 | EE2-906 | EE2P906 | |
| 8″ | 22,700 | 18,200 | 45,400 | EE2-908 | EE2P908 | |
| 10″ | 28,400 | 22,700 | 56,800 | EE2-910 | EE2P910 | |
| 12″ | 32,640 | 26,100 | 65,280 | EE2-912 | EE2P912 | |
| THREE PLY | 1″ | 4,100 | 3,300 | 8,200 | EE3-901 | EE3P901 |
| 2″ | 8,200 | 6,600 | 16,400 | EE3-902 | EE3P902 | |
| 3″ | 12,300 | 9,900 | 24,600 | EE3-903 | EE3P903 | |
| 4″ | 15,300 | 12,200 | 30,600 | EE3-904 | EE3P904 | |
| 6″ | 22,900 | 18,300 | 45,800 | EE3-906 | EE3P906 | |
| 8″ | 30,600 | 24,500 | 61,200 | EE3-908 | EE3P908 | |
| 10″ | 38,200 | 30,600 | 76,400 | EE3-910 | EE3P910 | |
| 12″ | 45,900 | 36,700 | 91,700 | EE3-912 | EE3P912 | |
| FOUR PLY | 1″ | 6,400 | 5,120 | 12,800 | EE4-901 | EE4P901 |
| 2″ | 12,800 | 10,240 | 25,600 | EE4-902 | EE4P902 | |
| 3″ | 19,200 | 15,360 | 38,400 | EE4-903 | EE4P903 | |
| 4″ | 25,600 | 20,480 | 51,200 | EE4-904 | EE4P904 | |
| 6″ | 32,640 | 26,100 | 65,280 | EE4-906 | EE4P906 | |
| 8″ | 45,400 | 36,400 | 90,800 | EE4-908 | EE4P908 | |
| 10″ | 53,300 | 42,640 | 106,600 | EE4-910 | EE4P910 | |
| 12″ | 61,200 | 48,900 | 122,300 | EE4-912 | EE4P912 | |
Lengths from 18” to 30’ plus. All slings and bridles can be fitted with wear pads and sleeves.
Wear Sleeves: Wear Sleeves have the ability to slide and move the protection at various points, or can be sewn on to the body of the sling. SLIDING SLEEVES are removable from the sling. READY SLEEVES are sewn with ’Velcro’ to accommodate fast and easy installation & removal. They are perfect for slings with hardware. Sleeves are available in protective pad webbing, leather, or felt in all widths.

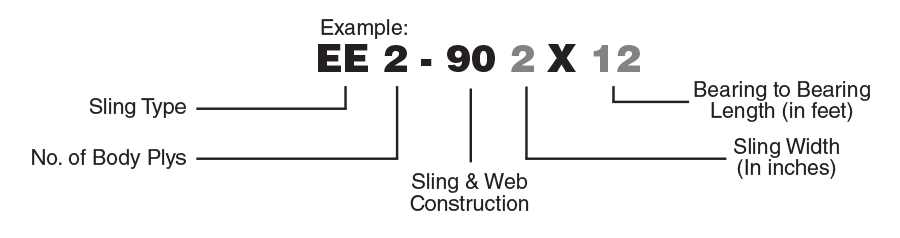

ORDERING SLINGS BY STOCK NUMBER
Specify Sling Length (in feet) After Stock Number
- Select the sling type best suited:
Triangle-Choker TC
Triangle-Triangle TT
Flat Eye-Eye EE
Endless EN
Bridle - Determine number of plys and widths required at top rated capacity needed.
- Add lengths to our part number.
