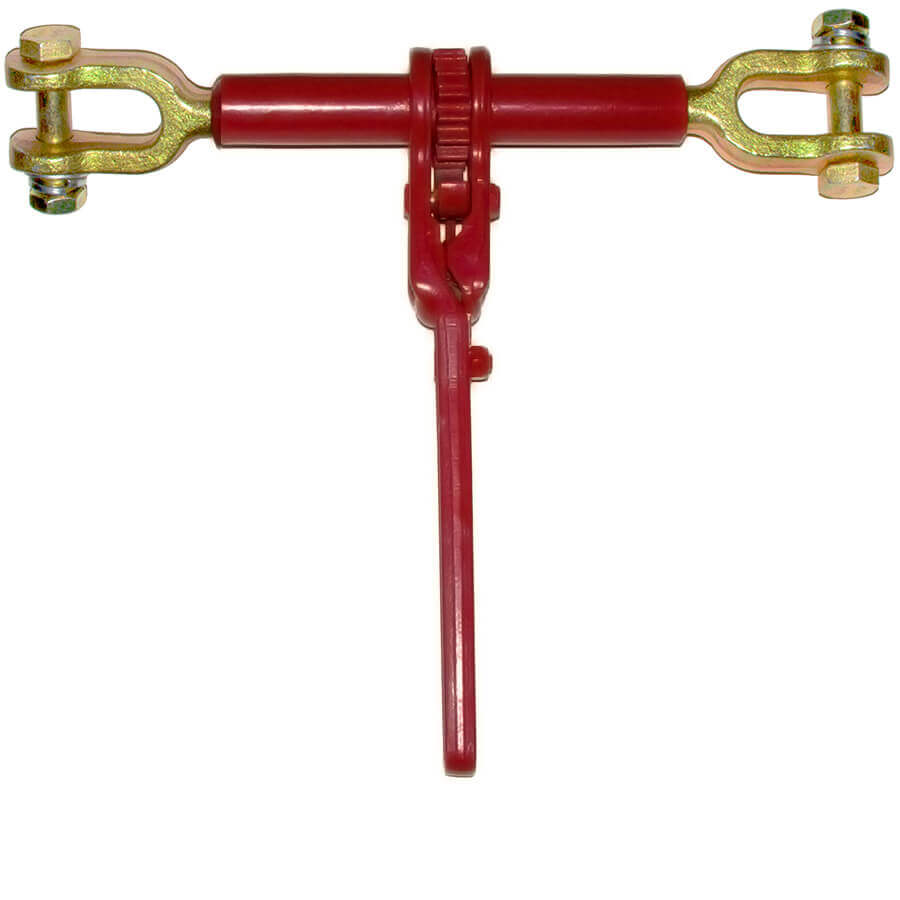

Lok-Down® Jaw-Jaw Ratchet Load Binder
- Straight, heavy duty barrel

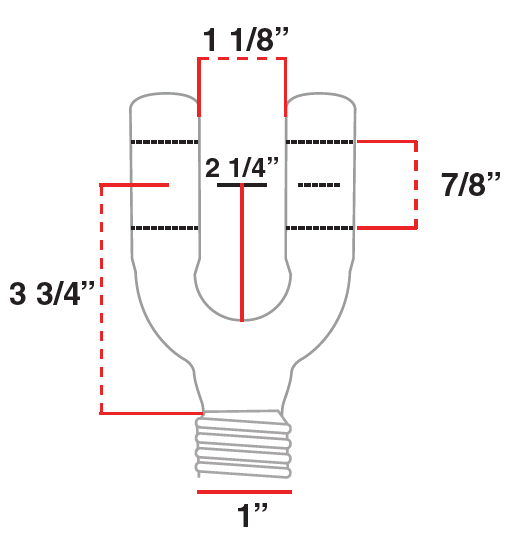

- Jaw-Jaw end fittings
- Fittings are yellow zinc plated
- Powder coated handle and barrel
- All load bearing fittings are forged
- Quenched and tempered
- Two piece handle
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | TAKEUP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) | PROOF LOAD (LBS.) | WEIGHT/ PIECE (LBS.) |
|---|---|---|---|---|---|---|---|---|
| LKD16000JJ | 8” | 10” | 15.5” | 1” | 17” – 25″ | 16,000 | 32,000 | 14 |
Scroll right for more information >

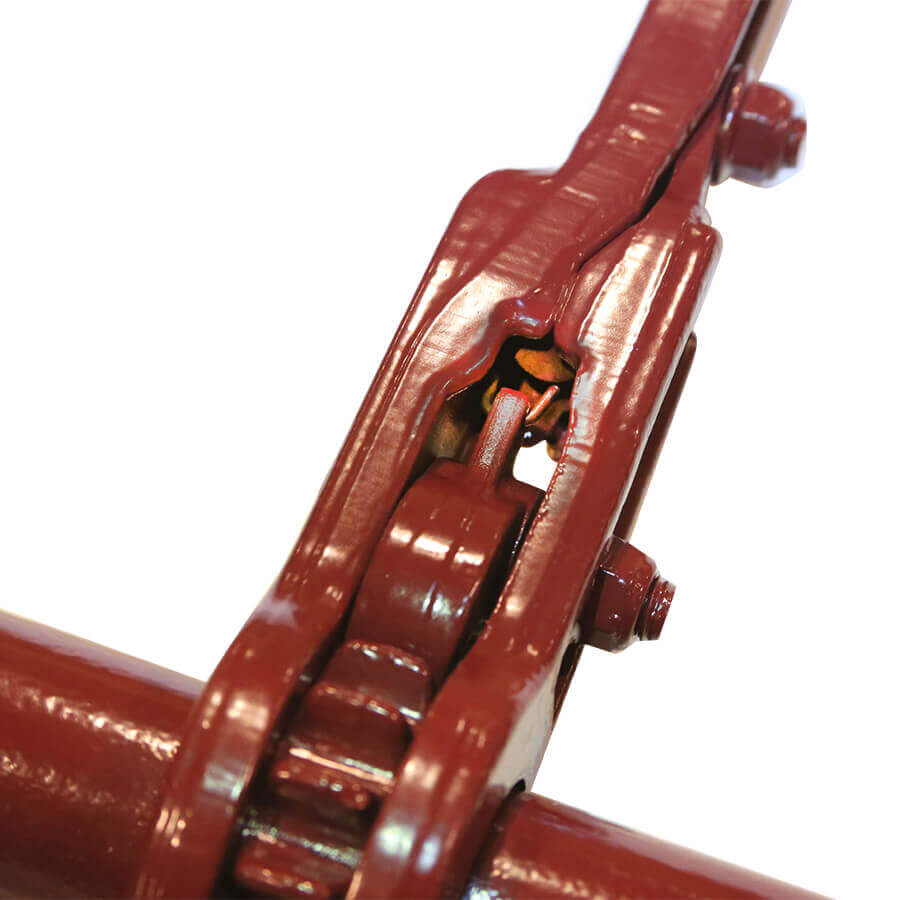

Close-up spring in two piece handle
