Hand Type Swaging Tools
Only for ferrules made from aluminum or copper
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| MODEL | CABLE SIZE | NUMBER OF CAVITIES | TYPE | LENGTH | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|---|
| HSC350 | 1/16″, 3/32″, 1/8″ | 3 | Two Hand | 14″ | 5.5 |
| HSC600 | 1/16″ through 3/16″ | 5 | Two Hand | 26″ | 6.5 |
| SWAGE250-312 | 1/4″, 5/32″, 5/16″ | 3 | Two Hand | 30″ | 10 |
| SWAGE375 | 3/8″ | 1 | Two Hand | 36″ | 13.5 |
Always follow swaging instructions provided with the tools. Use a gauge to check that the sleeves have been fully swaged. Properly swaged aluminum and copper sleeves will develop the rated breaking strength of the cable.
HSC350

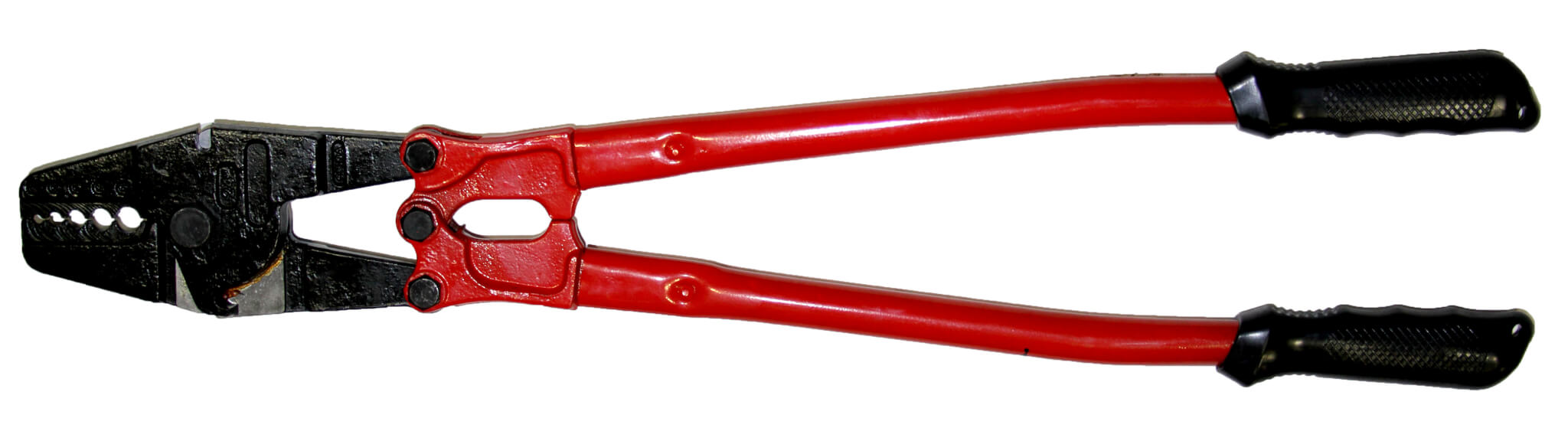

HSC600

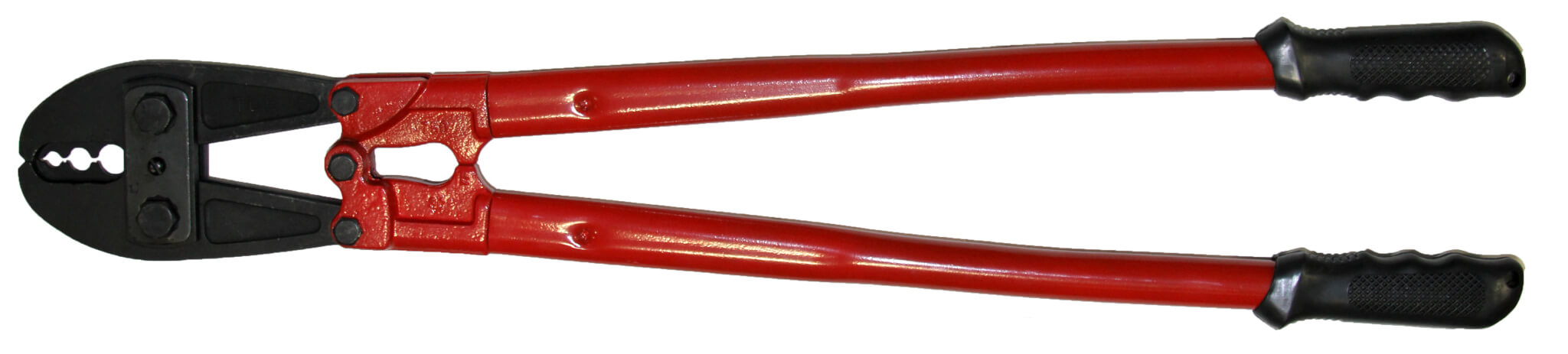

SWAGE250-312

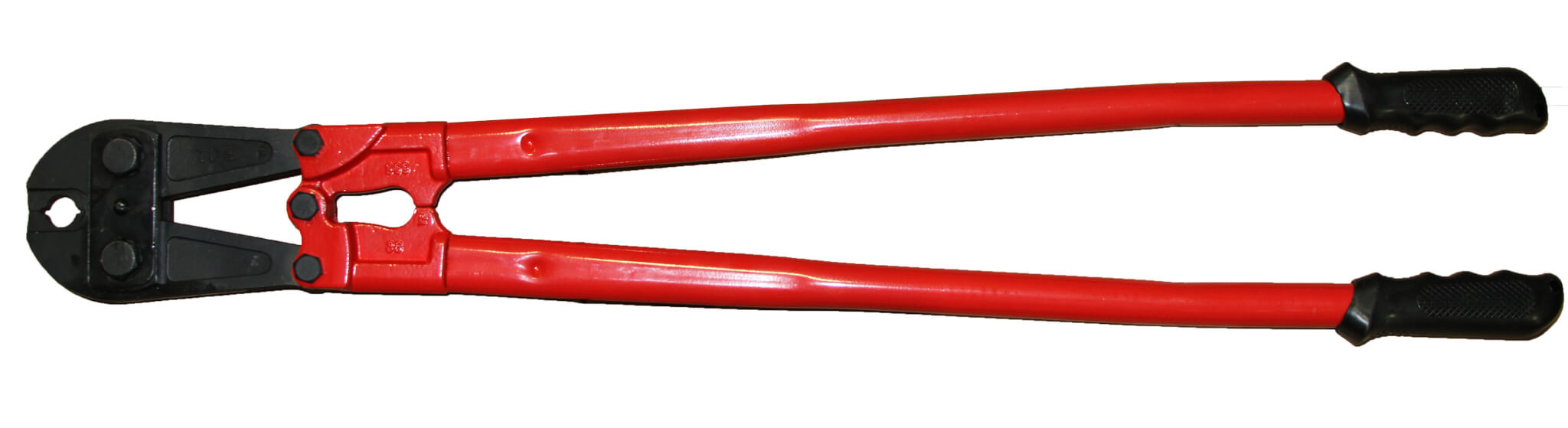

SWAGE375
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
