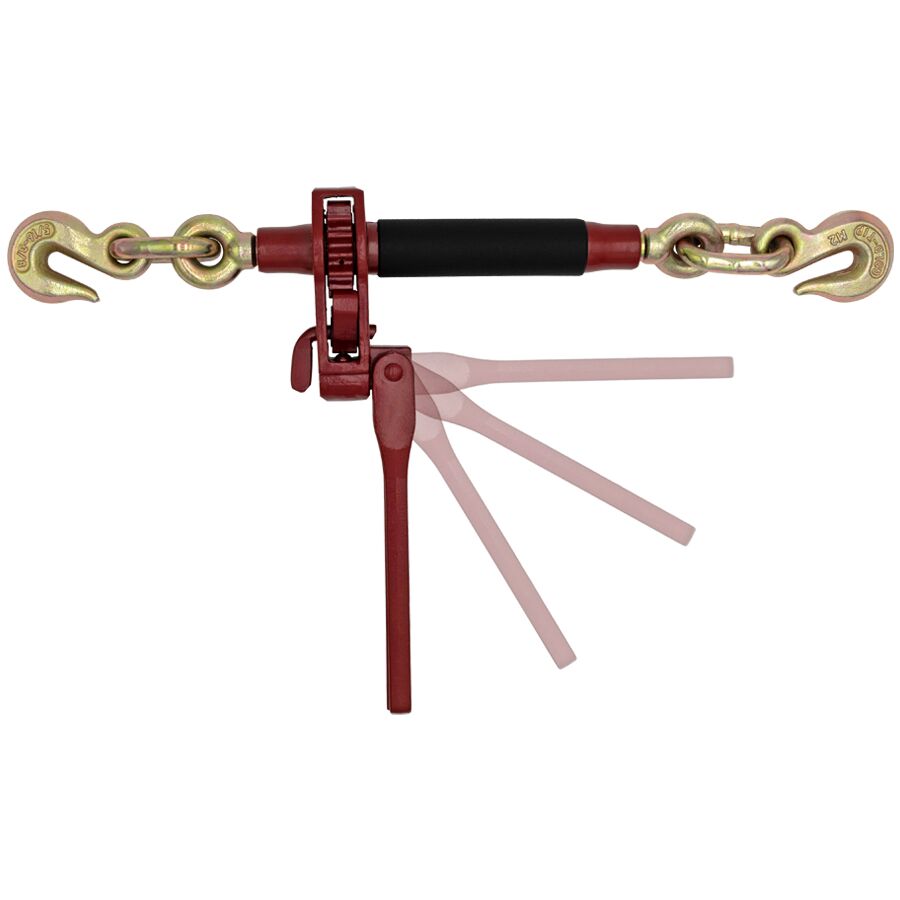

Gold-Tip® Folding Handle Ratchet Binders
- 3 Sizes Available: 5/16”-3/8” | 3/8”-1/2” | 1/2”-5/8”
- Heavy Duty Powder Coated Straight Barrel
- Load binders are heat treated and proof tested with forged hooks
- The folding handle lets you easily position it out of the way, safer to use

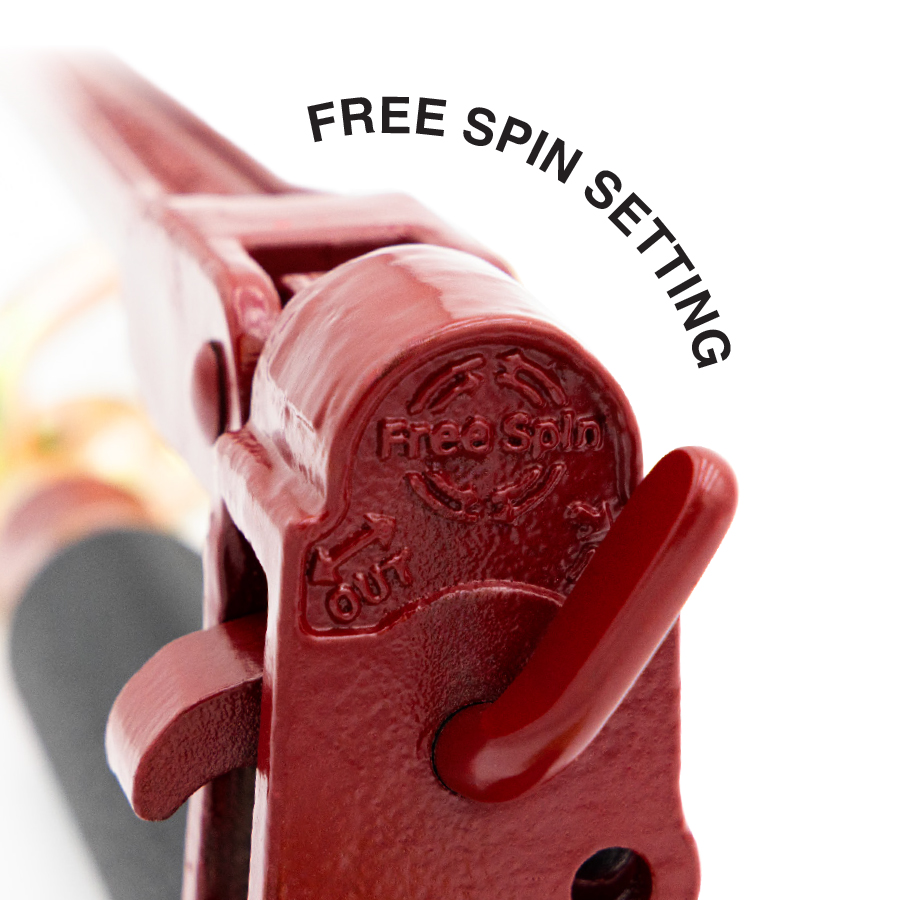

- The 3-position pawl offers the user a choice of ratchet extension, ratchet take-up or a “free spin” setting for fast adjustment in either direction
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | GRAB HOOK SIZE | TAKE-UP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT (LBS.) | MAXIMUM CHAIN SIZE |
|---|---|---|---|---|---|---|---|---|---|---|
| GTFH375 | 3/8” | 6” | 10” | 9.5” | 7/8” | 22.5” – 28.5” | 8,800 | 17,600 | 10.8 | 3/8” G100 |
| GTFH500 | 1/2” | 6” | 10” | 9.5” | 7/8” | 23.5” – 29.5” | 12,000 | 24,000 | 12.6 | 1/2” G80 |
| GTFH625 | 5/8” | 6” | 10” | 9.5” | 1” | 26.5” – 32.5” | 18,100 | 36,200 | 17 | 5/8” G80 |
Scroll right for more information >
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
