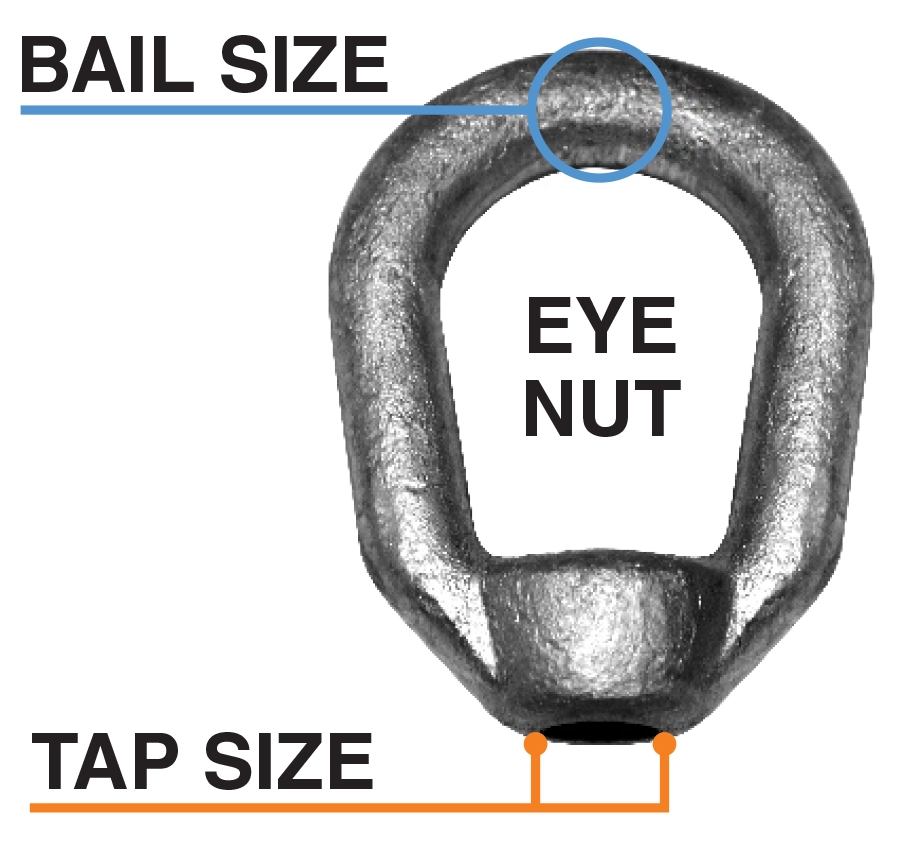

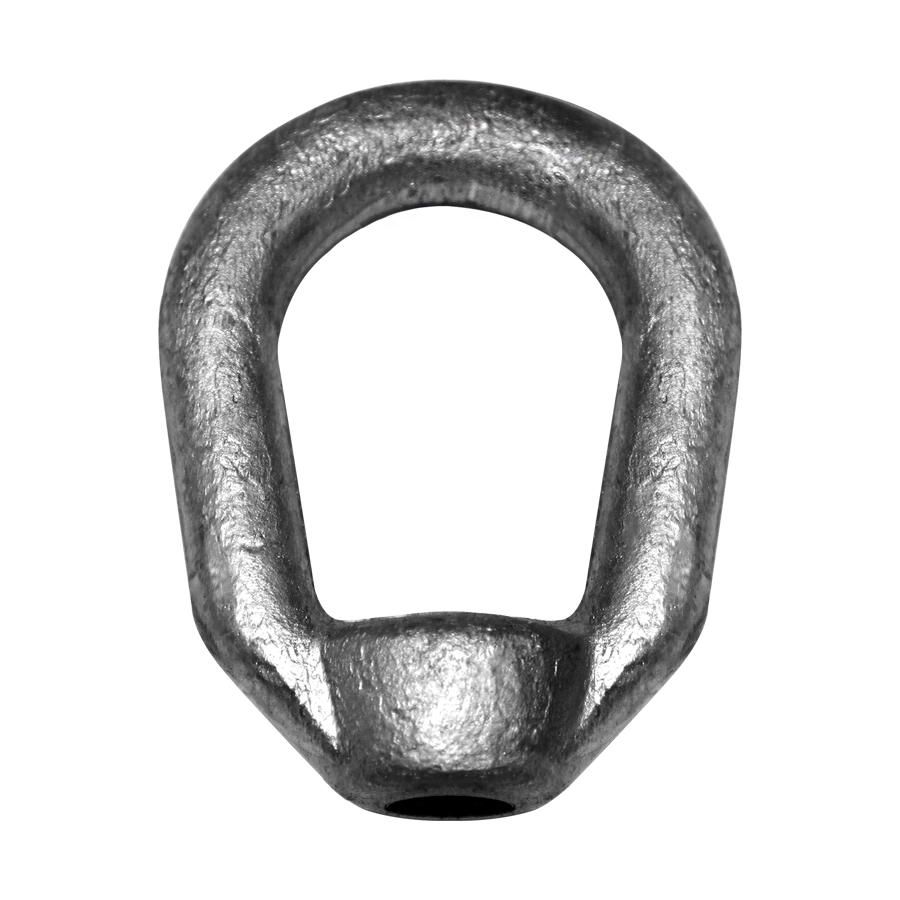

Hot Galvanized, Drop Forged – UNC Thread – Bail Size is Marked on Eye Nut
| TAP SIZE | BAIL DIAMETER | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| 1/4″ | 1/4″ | EN250HDG | 520 | .09 |
| 5/16″ | 1/4″ | EN312HDG | 700 | .10 |
| 3/8″ | 5/16″ | EN375HDG | 1,250 | .15 |
| 1/2″ | 3/8″ | EN500HDG | 2,250 | .28 |
| 5/8″ | 1/2″ | EN625HDG | 3,600 | .55 |
| 3/4″ | 5/8″ | EN750HDG | 5,200 | 1.00 |
| 7/8″ | 3/4″ | EN875HDG | 7,200 | 1.50 |
| 1″ | 7/8″ | EN100HDG | 10,000 | 2.45 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
