Galvanized 6X19 Class EIPS Wire Rope
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

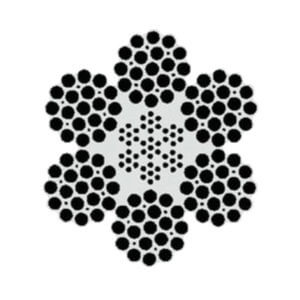

Fiber Core
| SIZE | STOCK NUMBER | BREAKING STRENGTH (LBS.) | WEIGHT/1,000′ (LBS.) |
|---|---|---|---|
| 3/8″ | GFC3756X19 | 10,980 | 230 |
| 7/16″ | GFC4376X19 | 14,880 | 320 |
| 1/2″ | GFC5006X19 | 19,260 | 420 |
| 9/16″ | GFC5626X19 | 24,200 | 530 |
| 5/8″ | GFC6256X19 | 30,000 | 660 |
| 3/4″ | GFC7506X19 | 42,800 | 950 |
According to Federal Specifications RR-W-410D, preformed right regular lay.

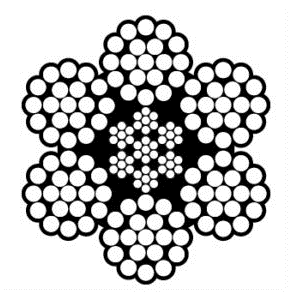

IWRC
| SIZE | STOCK NUMBER | BREAKING STRENGTH (LBS.) | WEIGHT/1,000′ (LBS.) |
|---|---|---|---|
| 3/8″ | GIWRC3756X19 | 13,600 | 260 |
| 7/16″ | GIWRC4376X19 | 18,360 | 350 |
| 1/2″ | GIWRC5006X19 | 24,000 | 460 |
| 9/16″ | GIWRC5626X19 | 30,200 | 590 |
| 5/8″ | GIWRC6256X19 | 37,000 | 720 |
| 3/4″ | GIWRC7506X19 | 53,000 | 1,040 |
According to Federal Specifications RR-W-410D, preformed right regular lay.
