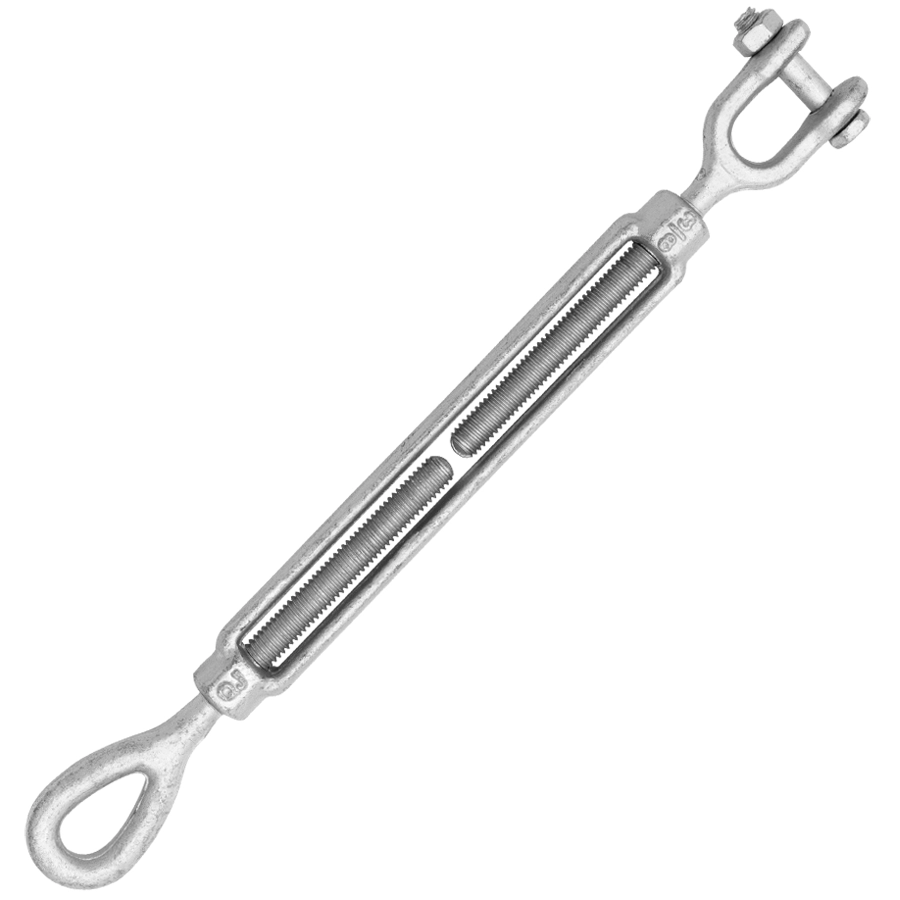

Eye & Jaw Galvanized Turnbuckles
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | SIZE | OVERALL CLOSED LENGTH | WORKING LOAD LIMIT (LBS.) | APPROXIMATE WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| TBEJ250X4 | 1/4″ X 4″ | 8.1″ | 500 | .30 |
| TBEJ312X450 | 5/16″ X 4-1/2″ | 9.5″ | 800 | .53 |
| TBEJ375X6 | 3/8″ X 6″ | 11.8″ | 1,200 | .82 |
| TBEJ500X6 | 1/2″ X 6″ | 13.5″ | 2,200 | 1.62 |
| TBEJ500X9 | 1/2″ X 9″ | 16.5″ | 2,200 | 1.82 |
| TBEJ500X12 | 1/2″ X 12″ | 19.5″ | 2,200 | 2.19 |
| TBEJ625X6 | 5/8″ X 6″ | 15.5″ | 3,500 | 2.59 |
| TBEJ625X9 | 5/8″ X 9″ | 18.3″ | 3,500 | 3.01 |
| TBEJ625X12 | 5/8″ X 12″ | 21.3″ | 3,500 | 3.50 |
| TBEJ750X6 | 3/4″ X 6″ | 17.1″ | 5,200 | 4.25 |
| TBEJ750X9 | 3/4″ X 9″ | 20.1″ | 5,200 | 5.0 |
| TBEJ750X12 | 3/4″ X 12″ | 23.1″ | 5,200 | 5.75 |
| TBEJ750X18 | 3/4″ X 18″ | 29.1″ | 5,200 | 7.25 |
| TBEJ875X12 | 7/8″ X 12″ | 24.6″ | 7,200 | 8.88 |
| TBEJ875X18 | 7/8″ X 18″ | 30.6″ | 7,200 | 10.6 |
| TBEJ100X6 | 1″ X 6″ | 21.0″ | 10,000 | 9.50 |
| TBEJ100X12 | 1″ X 12″ | 26.9″ | 10,000 | 12.0 |
| TBEJ100X18 | 1″ X 18″ | 32.9″ | 10,000 | 14.75 |
| TBEJ100X24 | 1″ X 24″ | 39.1″ | 10,000 | 17.75 |
| TBEJ1250X12 | 1-1/4″ X 12″ | 30.1″ | 15,200 | 21.2 |
| TBEJ1250X18 | 1-1/4″ X 18″ | 36.1″ | 15,200 | 26.0 |
| TBEJ1250X24 | 1-1/4″ X 24″ | 42.1″ | 15,200 | 28.7 |
| TBEJ1500X12 | 1-1/2″ X 12″ | 32.3″ | 21,400 | 31.1 |
| TBEJ1500X18 | 1-1/2″ X 18″ | 38.3″ | 21,400 | 36.4 |
| TBEJ1500X24 | 1-1/2″ X 24″ | 44.3″ | 21,400 | 44.2 |
| TBEJ200X24 | 2″ X 24″ | 51.7″ | 37,000 | 89 |
According to Federal Specification FF-T-791b.
- Eye-Eye Turnbuckles (Drop Forged HDG) ARE rated for Overhead Lifting.
- Jaw-Jaw and Eye-Jaw Turnbuckles (Drop Forged HDG) are ONLY rated for Overhead Lifting if the Jaws HAVE a Bolt with Nut.
- Jaw-Jaw and Eye-Jaw Turnbuckles (Drop Forged HDG) with a Pin with Cotter Pin in the Jaw are NOT rated for Overhead Lifting.
Please call your sales representative for information on which sizes include a Bolt with Nut, or Pin with Cotter Pin.
| STOCK NUMBERS | DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | |
| TBEJ250X4 | .25″ | .45″ | 1.66″ | .64″ | 11.57″ | 7.57″ | 12.38″ | 8.28″ | .81″ | .34″ | 1.76″ | 4.07″ |
| TBEJ312X450 | .31″ | .50″ | 2.02″ | .87″ | 13.50″ | 9.00″ | 14.30″ | 9.80″ | .95″ | .44″ | 2.20″ | 4.58″ |
| TBEJ375X6 | .38″ | .53″ | 2.11″ | .85″ | 16.91″ | 10.91″ | 17.87″ | 11.87″ | 1.13″ | .53″ | 2.48″ | 6.10″ |
| TBEJ500X6 | .50″ | .64″ | 3.22″ | 1.07″ | 19.30″ | 13.30″ | 20.48″ | 14.48″ | 1.41″ | .71″ | 3.56″ | 6.03″ |
| TBEJ500X9 | .50″ | .64″ | 3.20″ | 1.07″ | 25.59″ | 16.59″ | 26.77″ | 17.77″ | 1.41″ | .71″ | 3.54″ | 9.36″ |
| TBEJ500X12 | .50″ | .64″ | 3.20″ | 1.07″ | 31.59″ | 19.59″ | 32.77″ | 20.77″ | 1.41″ | .71″ | 3.54″ | 12.36″ |
| TBEJ625X6 | .63″ | .79″ | 3.90″ | 1.32″ | 20.73″ | 14.73″ | 22.27″ | 16.27″ | 1.80″ | .88″ | 4.35″ | 6.03″ |
| TBEJ625X9 | .63″ | .79″ | 3.89″ | 1.32″ | 27.07″ | 18.07″ | 28.61″ | 19.61″ | 1.80″ | .88″ | 4.34″ | 9.39″ |
| TBEJ625X12 | .63″ | .79″ | 3.89″ | 1.32″ | 33.07″ | 21.07″ | 34.61″ | 22.61″ | 1.80″ | .88″ | 4.34″ | 12.39″ |
| TBEJ750X6 | .75″ | .97″ | 4.71″ | 1.52″ | 22.17″ | 16.17″ | 24.09″ | 18.09″ | 2.09″ | 1.00″ | 5.12″ | 6.13″ |
| TBEJ750X9 | .75″ | .97″ | 4.68″ | 1.52″ | 28.57″ | 19.57″ | 30.49″ | 21.49″ | 2.09″ | 1.00″ | 5.09″ | 9.59″ |
| TBEJ750X12 | .75″ | .97″ | 4.68″ | 1.52″ | 34.57″ | 22.57″ | 36.49″ | 24.49″ | 2.09″ | 1.00″ | 5.09″ | 12.59″ |
| TBEJ750X18 | .75″ | .97″ | 4.71″ | 1.52″ | 46.57″ | 28.57″ | 48.49″ | 30.49″ | 2.09″ | 1.00″ | 5.12″ | 19.53″ |
| TBEJ875X12 | .88″ | 1.16″ | 5.50″ | 1.77″ | 35.68″ | 23.68″ | 37.91″ | 25.91″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEJ875X18 | .88″ | 1.16″ | 5.50″ | 1.77″ | 48.15″ | 30.15″ | 50.38″ | 32.38″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEJ100X12 | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 37.03″ | 25.03″ | 39.59″ | 27.59″ | 3.00″ | 1.43″ | 6.50″ | 12.18″ |
| TBEJ100X18 | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 49.03″ | 31.03″ | 51.59″ | 33.59″ | 3.00″ | 1.43″ | 6.50″ | 18.18″ |
| TBEJ100X24 | 1.00″ | 1.34″ | 6.09″ | 2.05″ | 61.03″ | 37.03″ | 64.19″ | 40.19″ | 3.00″ | 1.43″ | 6.47″ | 24.84″ |
| TBEJ1250X12 | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 40.76″ | 28.76″ | 43.98″ | 31.98″ | 3.59″ | 1.82″ | 8.49″ | 12.06″ |
| TBEJ1250X18 | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 52.76″ | 34.76″ | 55.98″ | 37.98″ | 3.59″ | 1.82″ | 8.49″ | 18.06″ |
| TBEJ1250X24 | 1.25″ | 1.84″ | 8.09″ | 2.82″ | 65.32″ | 41.32″ | 68.54″ | 44.54″ | 3.59″ | 1.82″ | 8.49″ | 24.62″ |
| TBEJ1500X18 | 1.50″ | 2.06″ | 8.93″ | 2.81″ | 54.50″ | 36.50″ | 40.21″ | 58.21″ | 4.09″ | 2.12″ | 9.46″ | 18.32″ |
| TBEJ1500X24 | 1.50″ | 2.06″ | 8.93″ | 2.81″ | 67.12″ | 43.12″ | 70.86″ | 46.86″ | 4.09″ | 2.12″ | 9.46″ | 24.94″ |
| EYE & EYE | EYE & HOOK | HOOK & HOOK | EYE & JAW | JAW & JAW | STUB END |
|---|---|---|---|---|---|
| TBEE (Size) | TBEH (Size) | TBHH (Size) | TBEJ (Size) | TBJJ (Size) | TBSS (Size) |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
