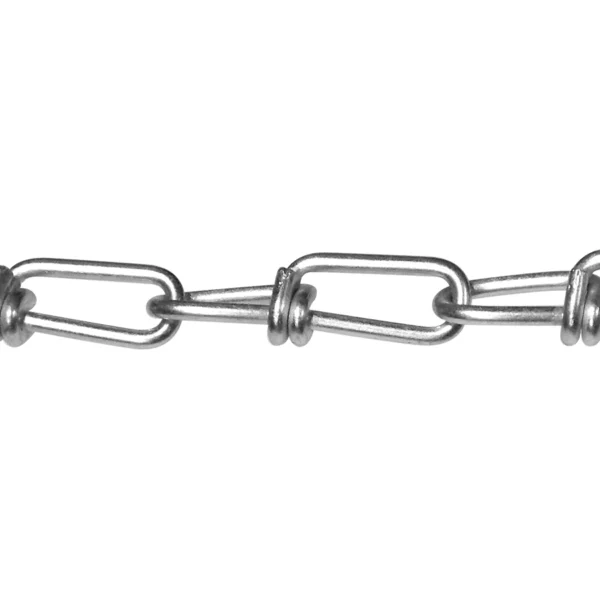

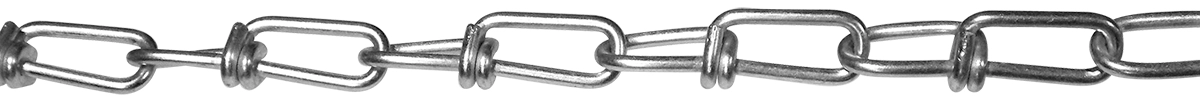

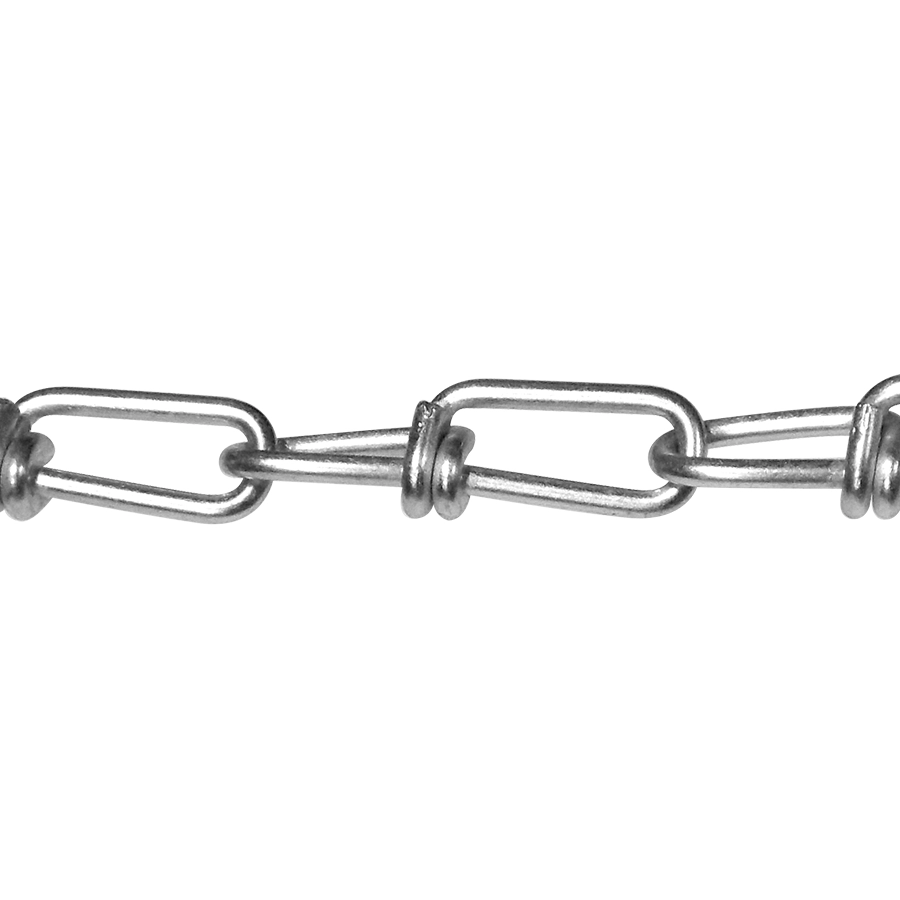

Double Loop Chain – Zinc Plated
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | CHAIN TYPE | STOCK NUMBER BRIGHT ZINC | MATERIAL DIAMETER | WORKING LOAD LIMIT (LBS.) | WEIGHT/FOOT (LBS.) |
|---|---|---|---|---|---|
| 1/0 | Double Loop | DL1/0ZP | 0.120″ | 200 | 0.13 |
| 2/0 | Double Loop | DL2/0ZP | 0.135″ | 255 | 0.17 |
| 3/0 | Double Loop | DL3/0ZP | 0.148″ | 305 | 0.20 |
| #1 | Double Loop | DL#1ZP | 0.105″ | 155 | 0.10 |
| #2 | Double Loop | DL#2ZP | 0.092″ | 115 | 0.08 |
| #3 | Double Loop | DL#3ZP | 0.080″ | 90 | 0.06 |
| #4 | Double Loop | DL#4ZP | 0.072″ | 70 | 0.04 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
All images are for illustrative purposes only. Actual products may vary in appearance, features, and specifications without notice.
