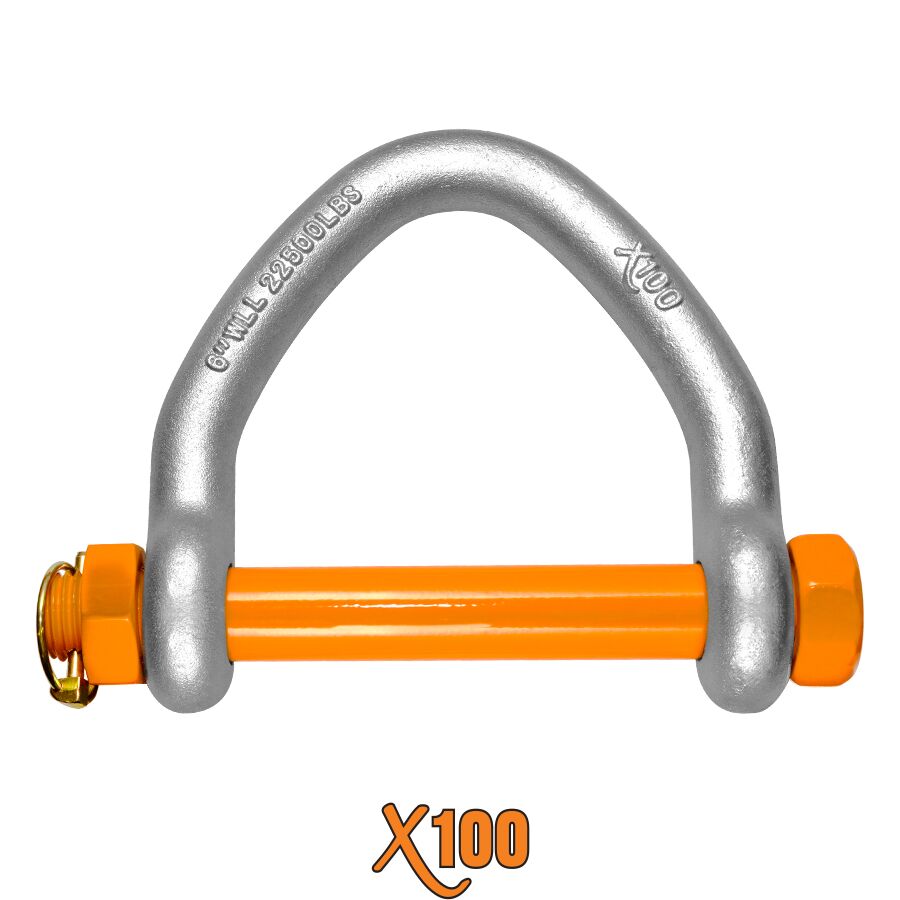

X100® Bolt Type Web Shackles
RATED FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- 100% Forged Alloy Steel
- Quenched & Tempered
- Markings: X100 Brand, Web Size, Working Load Limit
- Hot Dip Galvanized Body and Powder Coated BLAZE ORANGE Pin
- Load must be evenly distributed over entire pin to achieve full Working Load Limit
- NEVER side load or point load pins or bodies
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| WEB SIZE | STOCK NUMBER | PIN DIAMETER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | QTY/BOX |
|---|---|---|---|---|---|
| 3″ | XWSB3 | 0.88″ | 6-3/4 | 3.0 | 10 |
| 4″ | XWSB4 | 0.87″ | 7-1/4 | 3.8 | 10 |
| 5″ | XWSB5 | 1.01″ | 9-1/2 | 6.2 | 8 |
| 6″ | XWSB6 | 1.25″ | 11-1/4 | 10.4 | 4 |
X100 Bolt Type Web Shackles are suitable for overhead lifting. Meets ASME B30.26 requirements.
| STOCK NUMBER | DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XWSB3 | 0.88 | 0.80 | 3.26 | 3.05 | 6.16 | 5.44 | 1.95 |
| XWSB4 | 0.87 | 0.85 | 3.57 | 3.93 | 7.26 | 5.82 | 1.83 |
| XWSB5 | 1.01 | 1.03 | 4.31 | 5.07 | 8.75 | 6.74 | 2.41 |
| XWSB6 | 1.25 | 1.16 | 5.20 | 6.12 | 10.36 | 7.98 | 2.66 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
