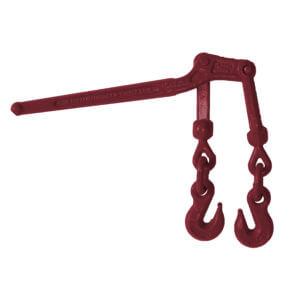

LEVER-TYPE Binder
PREMIUM LEVER LOAD BINDERS
LEVER-TYPE Binder
- All load bearing fittings are forged
- Quenched and tempered
- Entire assembly is powder coated
- Hooks have 360˚ rotation
- Load binders are DOT compliant
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WORKING LOAD LIMIT (LBS.) |
|---|---|---|---|
| 1/4” Grade 30, 1/4” Grade 43 | LBNDR250 | 2,600 | 4 |
| 5/16” Grade 70, 3/8” Grade 43 | LBNDR375 | 5,400 | 7 |
| 3/8” Grade 70, 1/2” Grade 43 | LBNDR500 | 9,200 | 13 |

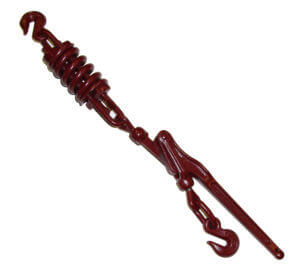

COMPRESSION SPRING Lever Load Binder
- All load bearing fittings are forged
- Quenched and tempered
- Entire assembly is powder coated
- Hooks have 360˚ rotation
- Steel Coil Spring acts as a shock-absorber
- Great for rubber tired vehicle carriers
- Load binders are DOT compliant
| STOCK NUMBER | CHAIN SIZE | TAKE-UP | HANDLE LENGTH | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT/PER PIECE (LBS.) |
|---|---|---|---|---|---|---|
| LBNDR6600SPRING | 5/16”-3/8” | 4.5” | 16” | 6,600 | 13,200 | 15 |
| LBNDR9200SPRING | 3/8”-1/2” | 4.5” | 18” | 9,200 | 18,400 | 19 |

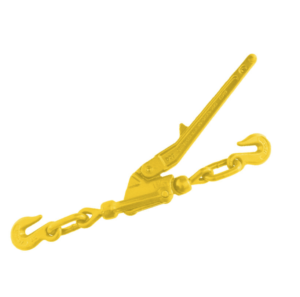

RECOILLESS Lever Load Binder
- All load bearing fittings are forged
- Quenched and tempered
- Entire assembly is powder coated
- Hooks have 360˚ rotation
- Kickback on handle is reduced by two-stage design
- Kickback on handle is reduced by two-stage design
- Load binders are DOT compliant
| STOCK NUMBER | CHAIN SIZE | TAKE-UP | HANDLE LENGTH | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT/PER PIECE (LBS.) |
|---|---|---|---|---|---|---|
| LBNDR5400RECOIL | 5/16”-3/8” | 4.5” | 16” | 5,400 | 10,800 | 10 |
CLAW-CLAW Lever Load Binder
- Quenched and tempered
- Entire assembly is powder coated
- Hooks have 360˚ rotation
- All load bearing fittings are forged
- Commonly used in Automotive Frame Straightening operations
- Claw hook is designed to cradle the entire link
- Load binders are DOT compliant
| STOCK NUMBER | CHAIN SIZE | TAKE-UP | HANDLE LENGTH | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT/PER PIECE (LBS.) |
|---|---|---|---|---|---|---|
| LBNDR6600CC | 5/16”-3/8” | 4.5” | 16” | 6,600 | 13,200 | 11 |

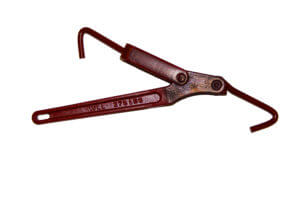

LIGHT DUTY Lever Load Binder
- Steel formed wire “J” Hooks
- Forged handle
- Quenched and tempered
- Entire assembly is powder coated
- One hook rotates 360˚
- Load binders are DOT compliant
| STOCK NUMBER | TAKE-UP | HANDLE LENGTH | WORKING LOAD LIMIT (LBS.) | PROOF LOAD LIMIT (LBS.) | WEIGHT/PER PIECE (LBS.) |
|---|---|---|---|---|---|
| LBNDRLIGHTDUTY | 3” | 9.5” | 375 | 750 | 2 |
