Specifications

Type 5, Style 9800

PLY	WEB WIDTH	VERTICAL RATED CAPACITY (LBS.)	CHOKER RATED CAPACITY (LBS.)	BASKET RATED CAPACITY (LBS.)	PRODUCT CODE
ONE PLY	1″	3,200	2,560	6,400	EN1-901
2″	6,400	5,120	12,800	EN1-902
3″	9,600	7,680	19,200	EN1-903
4″	12,800	10,240	25,600	EN1-904
6″	19,200	15,360	38,400	EN1-906
8″	25,600	20,480	51,200	EN1-908
TWO PLY	1″	6,400	5,120	12,800	EN2-901
2″	12,800	10,240	25,600	EN2-902
3″	19,200	15,360	38,400	EN2-903
4″	25,600	20,480	51,200	EN2-904
6″	38,400	30,720	76,800	EN2-906
8″	51,200	40,960	102,400	EN2-908

PLY

WEB WIDTH

VERTICAL RATED CAPACITY (LBS.)

CHOKER RATED CAPACITY (LBS.)

BASKET RATED CAPACITY (LBS.)

PRODUCT CODE

ONE PLY

1″

3,200

2,560

6,400

EN1-901

2″

6,400

5,120

12,800

EN1-902

3″

9,600

7,680

19,200

EN1-903

4″

12,800

10,240

25,600

EN1-904

6″

19,200

15,360

38,400

EN1-906

8″

25,600

20,480

51,200

EN1-908

TWO PLY

1″

6,400

5,120

12,800

EN2-901

2″

12,800

10,240

25,600

EN2-902

3″

19,200

15,360

38,400

EN2-903

4″

25,600

20,480

51,200

EN2-904

6″

38,400

30,720

76,800

EN2-906

8″

51,200

40,960

102,400

EN2-908

Note: Protective Cordura covering can be placed on any part of type 3 & 4 slings as well as type 5 (endless) slings.
Noted: For 3 and 4 ply web slings wider than 6 inches, we recommend examining our Endless Round Slings as an alternative option for ease of use and lower cost.
We sew synthetic slings to your specifications. Please call with any custom requirements.

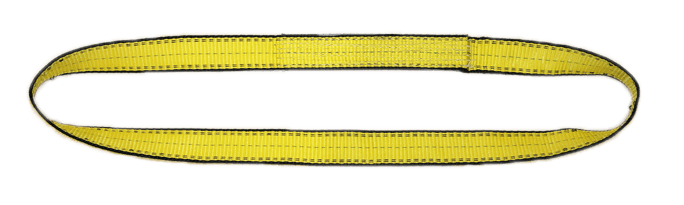

ENDLESS SLING TYPE 5
