SPECIFICATIONS

SPECIFICATIONS

SAFETY RATCHET STRAPS

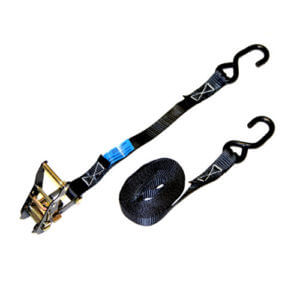

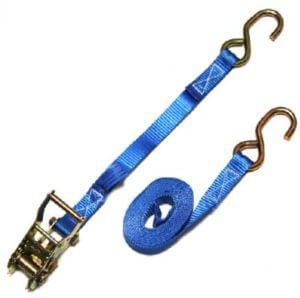

1” POLYESTER RATCHET TIE-DOWNS WITH S- AND J- HOOKS

SIZE	STOCK NUMBER	COLOR	END FITTING	CAPACITY (LBS.)
1″ x 8′	STRAP1X8	Yellow	Black Vinyl S-Hook	3,000
1″ x 8′	STRAP1X8B	Black	Black Vinyl S-Hook	3,000
1″ x 12′	STRAP1X12	Yellow	Black Vinyl S-Hook	3,000
1″ x 15′	STRAP1X15	Yellow	Black Vinyl S-Hook	3,000
1″ x 15′	STRAP1X15B	Black	Black Vinyl S-Hook	3,000
1″ x 15′	STRAP1X15BLU	Blue	Black Vinyl S-Hook	3,000
1″ x 15′	STRAP1X15J	Yellow	Yellow Zinc Wire J-Hook	3,000

Custom sizes available from our in-house sew shop.

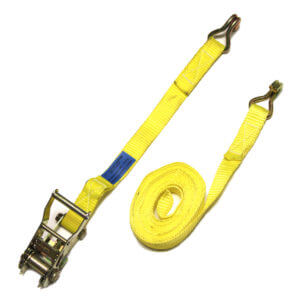

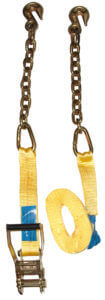

2” YELLOW POLYESTER RATCHET TIE-DOWNS WITH FLAT, CHAIN GRAB, AND J- HOOKS

SIZE	STOCK NUMBER	END FITTINGS	RATCHET	BREAKING STRENGTH (LBS.)	WEIGHT (LBS.)
2” x 8’	STRAP2X8J	J-Jooks	Long/Wide Handle	10,000	4
2” x 15’	STRAP2x15	Flat Hooks	Long/Wide Handle	10,000	4.5
2” x 15’	STRAP2X15J	J-Jooks	Long/Wide Handle	10,000	4.5
2” x 27’	STRAP2X27	Flat Hooks	Long/Wide Handle	10,000	6
2” x 27’	STRAP2X27J	J-Jooks	Long/Wide Handle	10,000	6
2” x 27’	STRAP2x27CG	Chain Grab Hooks	Long/Wide Handle	10,000	11

Custom sizes available from our in-house sew shop.

3” YELLOW POLYESTER RATCHET TIE-DOWNS WITH FLAT & J-HOOKS

SIZE	STOCK NUMBER	HOOKS	RATCHET	BREAKING STRENGTH (LBS.)	WEIGHT (LBS.)
3” x 30’	STRAP3X30RFH	Flat Hooks	Long Handle	15,000	15
3” x 30’	STRAP3X30RJH	J-Hooks	Long Handle	15,000	15

Custom sizes available from our in-house sew shop.

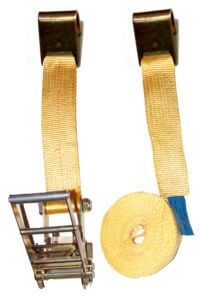

4” YELLOW POLYESTER RATCHET TIE-DOWNS WITH FLAT & CHAIN GRAB HOOKS

SIZE	STOCK NUMBER	HOOKS	RATCHET	BREAKING STRENGTH (LBS.)	WEIGHT (LBS.)
4” x 30’	STRAP4X30F	Flat Hooks	Long Handle	15,000	19
4” x 30’	STRAP4X30CG	Chain Grab Hooks	Long Handle	15,000	21.3

Custom sizes available from our in-house sew shop.

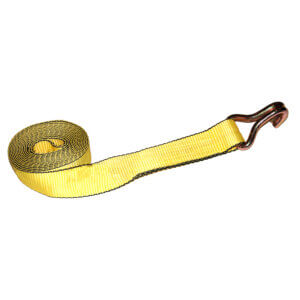

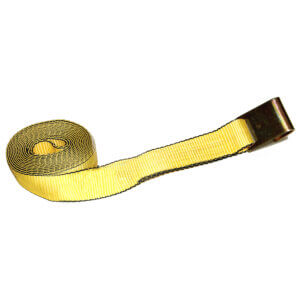

2” & 4” YELLOW POLYESTER REPLACEMENT STRAPS WITH FLAT & J-HOOKS

SIZE	STOCK NUMBER	HOOKS	BREAKING STRENGTH (LBS.)	WITH FLAT & J-HOOKS WEIGHT (LBS.)
2” x 26”	STRAP2x26R	Flat Hook	10,000	2.6
2” x 26”	STRAP2x26JR	J Hook	10,000	2.6
4” x 30’	STRAP4X30	Flat Hook	15,000	5.5

18inchchainanchorwithpearlink

18” CHAIN ANCHOR WITH PEAR LINK FOR 2” WEBBING

STOCK NUMBER	CHAIN	HOOK	WORKING LOAD LIMIT (LBS.)	BREAKING STRENGTH (LBS.)	FOR 2” WEBBING WEIGHT (LBS.)
Y3816	5/16” G70	5/16” G70	3,335	10,000	3.75

18inchchaintaildelta

STOCK NUMBER	CHAIN	HOOK	WORKING LOAD LIMIT (LBS.)	BREAKING STRENGTH (LBS.)	FOR 3” & 4” WEBBING WEIGHT (LBS.)
Y3816A	3/8” G70	3/8” G70	5,000	15,000	3.86

TWBOSTD

TWWOSTD

TWBOLP

TWSLDSTD

TWWODEEP

STOCK NUMBER	DESCRIPTION	SIZE	LENGTH	WIDTH	HEIGHT	TRAILER MOUNT POSITION	WEIGHT EACH (LBS.)
TWBOSTD	4” Bolt-On	Standard	4 7/8”	5 5/16”	3 9/16”	Bottom	10
TWBOLP	4” Bolt-On	Low Profile	4 7/8”	5 5/16”	4”	Side	9
TWSLDSTD	4” Sliding	Standard	5”	5 1/2”	4”	Bottom	11
TWWOSTD	4” Weld-On	Standard	4 7/8”	5 5/16”	3 9/16”	Bottom	8
TWWODEEP	4” Weld-On	Deep Pocket	5”	7”	4”	Bottom	11

WINCH BARS

standardwinchbar

STANDARD

combinationwinchbar

COMBINATION

STANDARD WINCH BAR

STOCK NUMBER	FINISH	LENGTH	WEIGHT (LBS.)
Y709	Painted Black	32.5”	5.1

COMBINATION WINCH BAR

STOCK NUMBER	FINISH	LENGTH	WEIGHT (LBS.)
Y709A	Painted Black	37”	6

WELD-ON PARTS

WELD-ON D-RING

weldondring copy copy

The rings come with weld-on mounting brackets
Self colored
Not for overhead lifting

STOCK NUMBER	WORKING LOAD LIMIT (LBS.)	BREAKING STRENGTH (LBS.)	MATERIAL	WEIGHT (LBS.)	DESCRIPTION
J-704	3,000	12,000	C-1045	0.45	1/2” forged D-ring w/ weld-on or bolt-on mounting bracket
J-705	4,500	18,000	C-1045	0.7	5/8” forged D-ring w/ weld-on mounting bracket
J-706	6,625	26,500	C-1045	0.95	3/4” forged D-ring w/ weld-on mounting bracket
J-707	11,685	46,750	C-1045	1.3	1” forged D-ring w/ weld-on mounting bracket

Welding is to be performed by a qualified welder using a qualified procedure in accordance with American Welding Society.

WELD-ON CHAIN RETAINER

reatiner

Not for overhead lifting
Self colored
Weld on design for easy chain attachment

STOCK NUMBER	WORKING LOAD LIMIT (LBS.)	BREAKING STRENGTH (LBS.)	WEIGHT (LBS.)	DESCRIPTION
CR10000	2,500	10,000	0.45	Fits 1/4”-5/16” chain
CR20000	5,000	20,000	1.3	Fits 5/16”-3/8” chain

Welding is to be performed by a qualified welder using a qualified procedure in accordance with American Welding Society.

BINDER, TOWING, & LIFTING CHAIN

CARGO CONTROL CHAIN

BINDER CHAINS

11-516G7-LENGTH

Every link has been proof tested to 2 times the working load
Grade 70 transport chain is used when higher work loads or DO regulations require stronger chain
Custom lengths and hooks available upon request
DOT compliant

GRADE 70 TRANSPORT BINDER CHAIN WITH GRAB HOOK EACH END

SIZE	STOCK NUMBER	GRADE/FINISH	WORKING LOAD LIMIT (LBS.)	WEIGHT/PIECE (LBS.)	PIECES/DRUM
5/16” X 16’	G70BC312X16	Gr 70/Yellow Chr	4,700	16	25
5/16” X 20’	G70BC312X20	Gr 70/Yellow Chr	4,700	23	25
5/16” X 25’	G70BC312X25	Gr 70/Yellow Chr	4,700	26	20
3/8” X 16’	G70BC375X16	Gr 70/Yellow Chr	6,600	26	25
3/8” X 20’	G70BC375X20	Gr 70/Yellow Chr	6,600	32	20
3/8” X 25’	G70BC375X25	Gr 70/Yellow Chr	6,600	37	15
1/2” X 10’	G70BC500X10	Gr 70/Yellow Chr	11,300	45.5	10
1/2” X 20’	G70BC500X20	Gr 70/Yellow Chr	11,300	52	10
1/2” X 25’	G70BC500X25	Gr 70/Yellow Chr	11,300	65	10

Grade 70 Transport Chain is used when higher work loads or DOT regulations require stronger chain. Custom lengths and hooks available upon request. DOT compliant. NOT suitable for overhead lifting.

SGG

Every link has been proof tested to 2 times the working load
Grade 8 alloy Chain is used when higher work loads or DOT regulations require stronger chain
Custom lengths and hooks available upon request
DOT compliant
Approved by OSHA fro overhead lifting with proper hooks

GRADE 80 BINDER CHAINS WITH GRAB HOOKS

SIZE	STOCK NUMBER	GRADE/FINISH	WORKING LOAD LIMIT (LBS.)	WEIGHT/PIECE (LBS.)	PIECES/DRUM
5/16” X 16’	G80BC312X16	Gr 80/Black Lacquer	4,500	16	25
5/16” X 20’	G80BC312X20	Gr 80/Black Lacquer	4,500	23	25
5/16” X 25’	G80BC312X25	Gr 80/Black Lacquer	4,500	26	20
3/8” X 16’	G80BC375X16	Gr 80/Black Lacquer	7,100	26	25
3/8” X 20’	G80BC375X20	Gr 80/Black Lacquer	7,100	32	20
3/8” X 25’	G80BC375X25	Gr 80/Black Lacquer	7,100	37	15
1/2” X 10’	G80BC500X10	Gr 80/Black Lacquer	12,000	45.5	10
1/2” X 20’	G80BC500X20	Gr 80/Black Lacquer	12,000	52	10
1/2” X 25’	G80BC500X25	Gr 80/Black Lacquer	12,000	65	10

Grade 80 Lifting Chain is used when higher work loads or DOT regulations require stronger chain. Custom lengths and hooks available upon request. DOT compliant. Suitable for overhead lifting with proper hooks. Larger sizes available upon request.

CARGO CONTROL CHAIN

TOWING & TIE-DOWN CHAINS

g70chain2

Every link has been proof tested to 2 times the working load
Grade 70 Transport Chain is used when higher work loads or DOT regulations require stronger chain
Custom lengths and hooks available upon request
DOT compliant

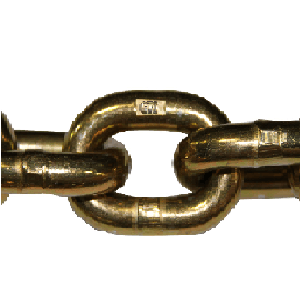

GRADE 70 CARGO CONTROL CHAIN

SIZE	STOCK NUMBER	FEET/DRUM	WORKING LOAD LIMIT (LBS.)	WEIGHT/FOOT (LBS.)
1/4”	G70250	400’, 800’ drum	0.63	3,150
5/16”	G70312	275’, 550’ drum	0.93	4,700
3/8”	G70375	200’, 400’ drum	1.41	6,600
1/2”	G70500	100’, 200’ drum	2.4	11,300
5/8”	G70625	75’, 150’ drum	3.53	15,800
1/4”	G70250X133	133’ pail	0.63	3,150
5/16”	G70312X92	92’ pail	0.93	4,700
3/8”	G70375X66	66’ pail	1.41	6,600
1/2”	G70500X33	33’ pail	2.4	11,300

Grade 70 Transport Chain is used when higher work loads or DOT regulations require stronger chain. Custom lengths and hooks available upon request. DOT compliant. NOT suitable for overhead lifting.

g80soft

Every link has been proof tested to 2 times the working load
Grade 80 alloy chain is approved by OSHA for overhead lifting
Black lacquer finish
DOT compliant

GRADE 80 ALLOY CHAIN

SIZE	STOCK NUMBER	FEET/DRUM	WORKING LOAD LIMIT (LBS.)	WEIGHT/FOOT (LBS.)
9/32”	G80281	400’, 800’	3,500	0.72
5/16”	G80312	275’, 550’	4,500	1.06
3/8”	G80375	200’, 400’	7,100	1.5
1/2”	G80500	100’, 200’	12,000	2.61
5/8”	G80625	75’, 150’	18,100	3.61

Grade 80 Lifting Chain is used when higher work loads or DOT regulations require stronger chain. Custom lengths and hooks available upon request. DOT compliant. Suitable for overhead lifting.

GRADE 100 CHAIN & CHAIN SLINGS

OVERHEAD LIFTING CHAINS

GRADE 100 CHAIN

g100chain

Every link has been proof tested to 2 times the working load
All grade 100 chain is made from 8620 alloy
Shot blast finish
100 Chain is approved by OSHA for cargo control and overhead lifting

STOCK NUMBER	SIZE	MATERIAL DIAMETER	INSIDE WIDTH	INSIDE LENGTH	WORKING LOAD LIMIT (LBS.)	FEET/DRUM	WEIGHT/FT
X100 281	9/32″	0.283”	.420”	0.85”	4,300	800’	0.74
X100 312	5/16”	0.315”	.500”	1.04”	5,700	550’	0.94
X100 375	3/8”	0.394”	.575”	1.26”	8,800	400’	1.48
X100 500	1/2”	0.512”	.768”	1.64”	15,000	200’	2.55
X100 625	5/8”	0.630”	.930”	2.00”	22,600	150’	3.83

GRADE 100 Chain Assemblies

chain-types

CHAIN SIZE	SINGLE SLING AT 90° ANGLE	DOUBLE SLING AT 60° ANGLE	DOUBLE SLING AT 45° ANGLE	DOUBLE SLING AT 30° ANGLE	TRIPLE/QUADRUPLE 60° ANGLE	TRIPLE/QUADRUPLE 45° ANGLE	TRIPLE/QUADRUPLE 30° ANGLE	CHAIN SIZE
9/32”	4,300	7,400	6,100	4,300	11,200	9,100	6,400	9/32”
5/16”	5,700	9,900	8,100	5,700	14,800	12,100	8,500	5/16”
3/8″	8,800	15,200	12,400	8,800	22,900	18,700	13,200	3/8″
1/2”	15,000	26,000	21,200	15,000	39,000	31,800	22,500	1/2”
5/8”	22,600	39,100	32,000	22,600	58,700	47,900	33,900	5/8”
3/4”	35,300	61,100	49,900	35,300	91,700	74,900	53,000	3/4”

CORNER PROTECTORS, TARP STRAPS, CARGO BARS & HOLDERS

cornerprotector
rubbercornerprotector1
rubbercornerprotector2

CORNER PROTECTORS

STOCK NUMBER	DESCRIPTION	WEIGHT EACH (LBS.)
4CP	Plastic Corner Protector for 2”, 3”, and 4” webbing	0.4
2RP	Rubber Corner Protector for 2” webbing	0.5
4RP	Rubber Corner Protector for 3” and 4” webbing	1.2

RUBBER TARP STRAPS

STOCK NUMBER	OVERALL LENGTH	STRAP LENGTH	S-HOOK DIAMETER	END FITTINGS
TARPSTRAP9	13”	9”	3/16”	S-HOOK
TARPSTRAP15	19”	15”	3/16”	S-HOOK
TARPSTRAP21	25”	21”	3/16”	S-HOOK
TARPSTRAP31	35”	31”	3/16”	S-HOOK
TARPSTRAP41	45”	41”	3/16”	S-HOOK

Made with EPDM Synthetic Rubber. S-Hooks are Electro-Galvanized.

cargobar

CARGO BAR

STOCK NUMBER	DESCRIPTION	REACH INCHES MIN/MAX	TUBE DIAMETER	END FITTINGS
CBAR	Steel Cargo Bar	89”-104”	1.5	2” x 4” Rubber

CARGOHOLDER

CARGO BAR HOLDER ELECTRO-GALVANIZED

STOCK NUMBER	DESCRIPTION
CBARHOLDER	Two Piece Steel Cargo Bar Holder
